Note
Please be aware that this product does not support the Helium LongFi network.
Among the first launch of Seeed industrial IoT (IIoT) product series, SenseCAP is focusing on wireless environmental sensing applications: smart agriculture, precision farming, and smart city, to name a few. It consists of hardware products (sensors, data-loggers & gateways, etc.), software services (SenseCAP portal, mobile App, open dashboard), and API for device & data management.

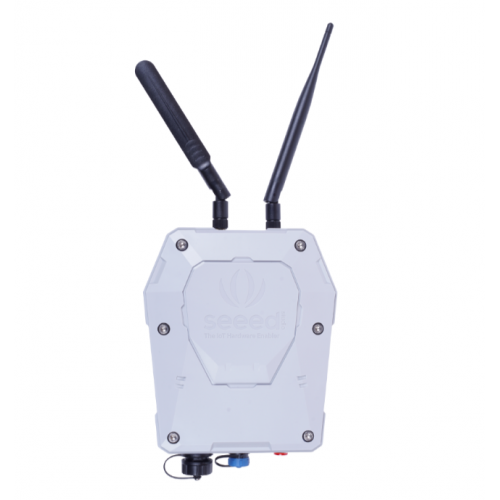

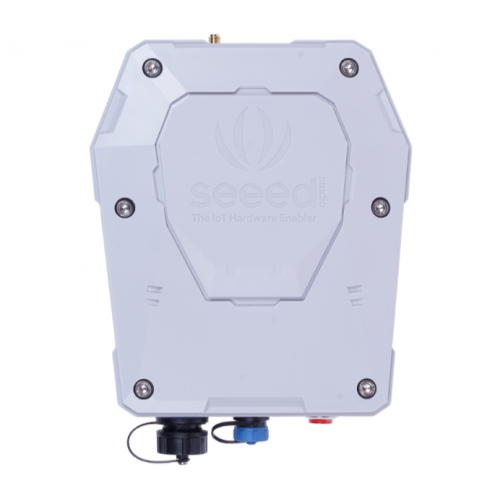

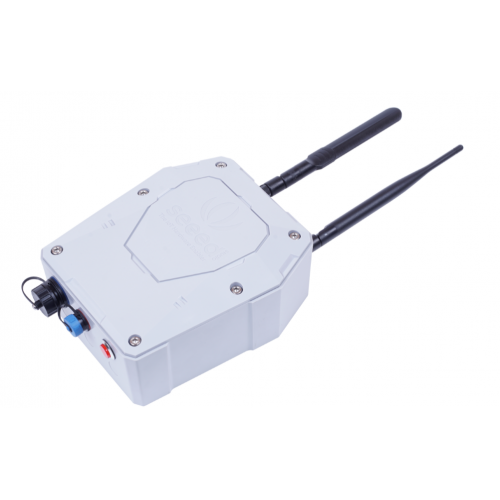

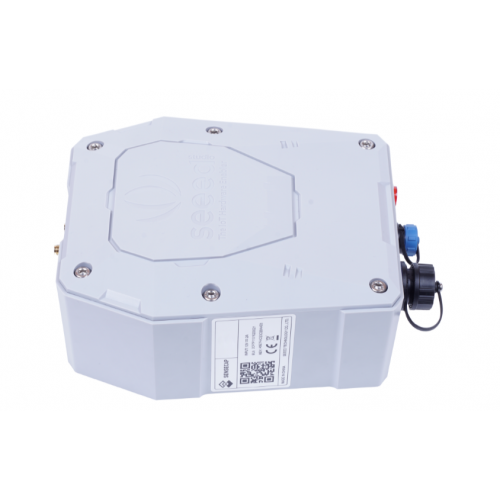

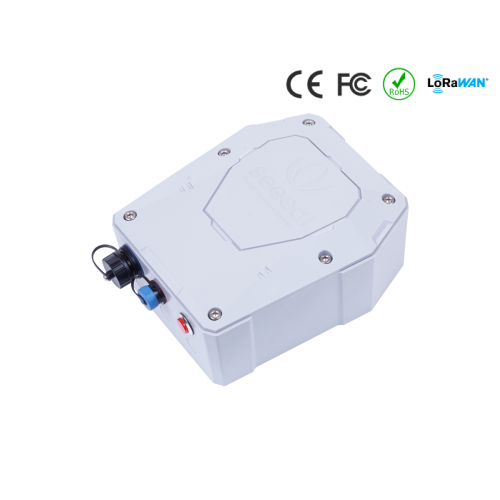

SenseCAP Gateway - LoRaWAN is based on Long Range Application protocol, applicable for low-power consumption, long-range environmental data collection, and remote monitoring scenarios such as smart agriculture and smart city.
As the central device of SenseCAP LoRaWAN network, the gateway is used for collecting data from different SenseCAP Sensors and transmit the data to the cloud platform via cellular LTE or Ethernet. Equipped with a high-performance processor AM3358 and telecom-operator-level Long Range chip SX1301, this device ensures robustness and high performance in large-scale networks. Mutual authentication and encryption are established in the whole network to increase security.
The gateway is designed with an IP66 enclosure and supports an extended operating temperature range, making it suitable for industrial applications in both indoor and outdoor severe environments.
We offer different SenseCAP Gateway - LoRaWAN with different ISM bands:
- SenseCAP Gateway - LoRawan EU 868 ( subset of 863 - 870 MHz)
- SenseCAP Gateway - LoRawan US 915 ( subset of 902 - 928 MHz)
- SenseCAP Gateway - LoRawan CN 470 ( subset of 470 - 510MHz)
Note:
- Please choose the corresponding frequency according to regional regulation.
- SenseCAP mobile APP and SenseCAP Portal are provided to enable easy and efficient provisioning and management of devices & data at scale.
- SenseCAP API is provided to access data and devices for further development.
- Here is a collection of SenseCAP LoRaWAN sensors for you to use with SenseCAP LoRaWAN Gateway seamlessly without extra workload for provisioning. It only takes you a few minutes to set up with this instruction.
- If you want to add other Long Range Application sensors, no problem at all. Please kindly refer to this document to connect any Long Range Application sensors to SenseCAP LoRaWAN Gateway.
System Architecture
SenseCAP Architecture
Features:
- High-performance Cortex A8 1GHz processor, Linux system.
- Support LoRaWAN protocol Class A, support ultra-low-power SenseCAP Sensor
- Support 8 RX, 1 TX transceiver, maximum transmit power 27dBm
- Support multiple ISM bands: CN470, EU868, US915
- Support multiple methods to access the network: 4G, Ethernet
- Ultra-wide-distance transmission: 10km in line of sight scene, 2 km in the urban scene
- Industrial grade protection: IP66 enclosure, temperature -40℃~70℃, suitable for outdoor applications
- Easy deployment, and rapid provisioning (see the "how to install" video below)
Specifications:
General Parameters
Product Model: Long Range -G-868-E/4G
CPU: TI AM3358 Cortex-A8 1GHz
System: Linux Debian
RAM: DDR3 512MB
Memory:8GB eMMC
Channel Plan:863~870MHz
Long Range Power Output:25dBm
Long Range Sensitivity: -139.5dBm (SF12BW125)
Ethernet:100Mbps FE (RJ-45)
4G Band: LTE-FDD: B1/B2/B3/B4/B5/B7/B8/B12/B13/B18/B19/B20/B25/B26/B28
LTE-TDD: B38/B39/B40/B41
WCDMA: B1/B2/B4/B5/B6/B8/B19
GSM: 850/900/1800/1900MHz
4G Features : Support non-CA Cat 4 FDD and TDD
LTE-FDD: Max 150Mbps (DL), Max 50Mbps (UL)
LTE-TDD: Max 130Mbps (DL), Max 30Mbps (UL)
UMTS Features :Support 3GPP R8 DC-HSDPA, HSPA+, HSDPA, HSUPA and WCDMA
DC-HSDPA: Max 42Mbps (DL) HSUPA: Max 5.76Mbps (UL)
WCDMA: Max 384Kbps (DL), Max 384Kbps (UL)
Long Range Antenna:2.5dBi gain / Vertical polarization / Omni-directional / SMA-J connector
4G Antenna: 0-4dBi gain / Linear polarization / Omnidirectional / SMA-J connector
LED Indicator :Indicating network condition (online/ offline)
Grounding: Reserved 1 screw hole for GND
Power Consumption: 3.6W
Power Supply :DC 12V/2A
IP Rating:IP66
UV Resistance: anti-aging (from rain/sun exposure): UL746C F1
Enclosure Material:PC
Operating Temperature:-40 ℃ to +70 ℃
Operating Humidity:0 to 100 %RH (non-condensing)
Installation Method :Wall or pole mounting
Device Dimensions: 256mm * 160mm * 81mm
Certification: CE, FCC, RoHS
Applications:
- Smart Agriculture
- Smart Building
- Environmental Monitoring
- Other Wireless Sensing Applications
Interface:
ECCN/HTS
- HSCODE 8517629900
- USHSCODE 8517180050
- UPC
- EUHSCODE 8517180000
- COO CHINA
- CE 1
- EU DoC 1
- RoHS 1
- UK DoC 1
Documentations:
- LoRaWAN Gateway and Wireless Sensor Catalog V1.7
- SenseCAP LoRaWAN Sensor User Manual V1.1
- SenseCAP Product User Guide(LoRaWAN Series) V1.3
- SenseCAP Document Center
- FCC Certificate
Package Includes:
- 1 x Long Range Gateway
- 1 x Long Range Antenna
- 1 x 4G Antenna
- 1 x Allen Hex Key
- 4 x Mounts
- 1 x Power Adapter
- 1 x Power Extension Cable (5M)
- 2 x /2 Ferrules / Aluminum piece
- 8 x M5 Self-drilling Screws
*Optional Antenna
- 1 x Long Range Fiberglass Omni Antenna
- 1 x Antenna Lightning Protector
- 1 x Long Range Antenna Brackets
