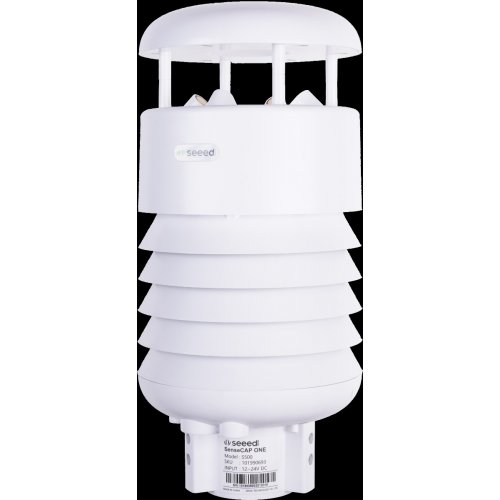

This SenseCAP ONE S500 5-in-1 Compact Weather Sensor can help you collect and monitor environmental and weather data, which are crucial in different application scenarios such as smart city projects and etc. The SenseCAP ONE S500 is equipped with sensors to measure the 5 parameters: air temperature, relative humidity, barometric pressure, wind speed, and wind direction.

Features:

  • 5 parameters to measure: air temperature, relative humidity, barometric pressure, wind speed, and wind direction
  • Embedded with the electronic compass / magnetometer: enabling easy installation and you can choose to disable the electronic compass while orienting to the North manually.
  • A flange plate and 3m cable are included in the package for the pole mount
  • IP66 rated: waterproof, and dustproof, suitable for outdoor scenarios
  • Integrated heaters that can be switched on in extreme weather
  • Ultrasonic wind speed & direction sensors without moving parts
  • Radiation shields are equipped to ensure accurate ambient measurement.
  • Supported interface: RS 485 (MODBUS-RTU)  / 232 / 422 (Modbus) / SDI-12
  • Calibrated and maintenance-free
  • CE and FCC certified

Specifications:

  • Parameters Measured: air temperature, relative humidity, barometric pressure, wind speed and wind direction
  • Protocol: RS 485 (MODBUS-RTU)  / 232 / 422 (Modbus) / SDI-12
  • Cable Length: 3m
  • Operating Temperature & Humidity: -40 °C ~ + 85 °C, 0 ~ 100%RH
  • IP Rating: IP66
  • Device Weight: 2kg
  • Air Temperature:
    • Range: - 40 °C ~ + 85 °C
    • Accuracy: ± 0.1℃
    • Resolution: 0.01 ℃
  • Air Humidity:
    • Range: 0 ~ 100% RH
    • Accuracy: ± 1.5% RH
    • Resolution: 0.01% RH
  • Barometric Pressure:
    • Range: 300 ~ 1250 hPa
    • Accuracy: ± 50 hPa
    • Resolution: 10 Pa
  • Wind Speed (Ultrasonic):
    • Range: 0 ~ 60 m/s
    • Accuracy: ± 3%
    • Resolution: 0.1 m/s
  • Wind Direction (Ultrasonic):
    • Range: 0 ~ 360 °
    • Accuracy: ± 3°
    • Resolution: 0.1°

Applications:

  • Smart Agriculture
  • Smart City
  • Smart Buildings
  • Transportation and Traffic
  • Smart Industry
  • Weather Monitoring

Documents:

Warranty: 12 months

  • Warranty will not apply if Product fails or is damaged after delivery to you due to accident, abuse or misuse.

Package Includes:

  • 1 x SenseCAP ONE S500 5-in-1 Compact Weather Sensor

Write a review

Please login or register to review

SenseCAP ONE S500 5-in-1 Compact Weather Sensor

  • Brand: Seeed Studio
  • Product Code:Seeed-SenseCAP-S500
  • Reward Points:1668
  • Availability:Out Of Stock
  • रo 166,786.00

  • Price in reward points:166786

  • 60 or more रo 90,418.00
