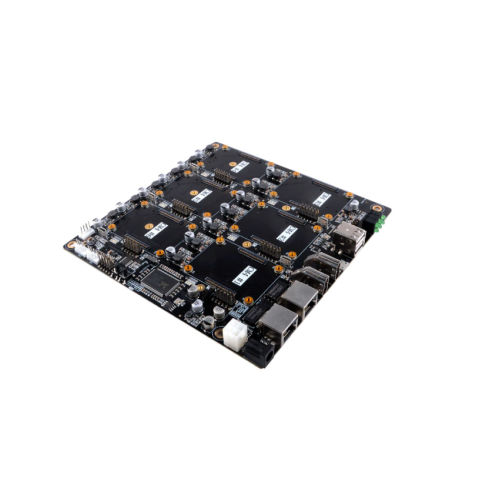

DeskPi Super6C Raspberry Pi CM4 Cluster Board is a standard mini-ITX motherboard, supporting up to 6 Raspberry CM4, equipped with storage expansion function for each one, mounted rich PC case front panel headers, powered by DC or ATX power supply. This board can be a great opportunity for you to learn cluster applications or distributed Machine Learning computing, under the vast and interesting ecosystems of Linux, cloud-native and Raspberry Pi.

The DeskPi Super6C Raspberry Pi CM4 Cluster Board is a standard mini-ITX motherboard, capable of assembling up to 6 Raspberry CM4 compute modules, where each module has enhanced peripheral equipment for advanced functions, including storage expansion. It comes with rich PC case front panel headers and offers two power supply options for the users. This board can be a great opportunity for you to learn cluster applications or distributed Machine Learning computing, under the vast and interesting ecosystems of Linux, cloud-native and Raspberry Pi.

Features:

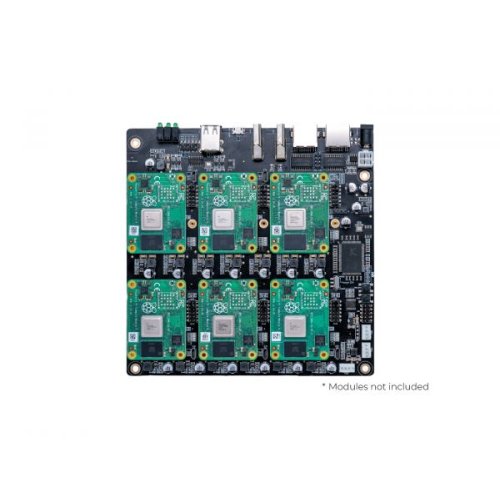

• Raspberry Pi Cluster Board supported up to 6 CM4: Capable of assembling up to 6 Raspberry CM4 compute modules in one mini-ITX board, perfect for distributed computing
• Enhanced Peripheral Equipment for each CM4: Place one Micro USB 2.0 connector, an M.2 slot and TF card slot, along with one 5V fan interface for every CM4
• Rich PC Case Front Panel Headers: Equip with two USB-A 2.0, two USB Host 2.54 Pins, two HDMI ports, two RJ45 network connectors, three 12V fan interfaces, an on/off switch, and a reset button

Uniting 6 independent Raspberry Compute Modules (nodes) in one cluster board, you can program to make these cluster nodes interoperate, for managing resources in Linux, building your own cloud service. In turn, you can also assemble all these cluster nodes’ resources to make one superior server (or supercomputer), for reaching even more advanced performance and deploying it in the edge computing scenarios like embedded Machine Learning. The nodes onboard communicate with each other through the onboard 1 Gbps switch and each node gets its own IP address.

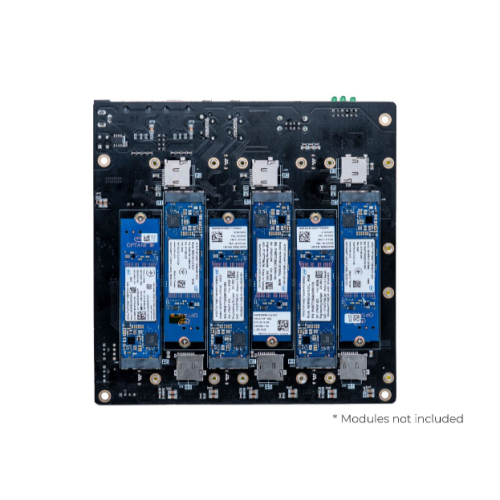

For every module on the board, there has been placed several peripheral interfaces for enhanced functions, including one Micro USB 2.0 connector, an M.2 slot, a TF card slot along with 5V fan interface. As for the primary computing module, there are two additional USB Host A 2.0 interfaces and two USB Host 2.54 4-pins for host usage and two HDMI interfaces (HDMI 2.0 and HDI 1.4a) for the multiple displays. The board also comes with two 1Gbps RJ45 network interfaces, three 12V fan interfaces, an on/off switch, and one reset button. And there are two power supply options which support by both 19V~24V DC and 12V ATX.

This is your Raspberry Pi cluster. You can use it to handle a MySQL or Postgres database, to install an Apache server; to program and manage resources in Linux; to do scripting in BASH, Python, and other scripting languages to make those cluster nodes interoperate. You can use it to make and manage your own cloud service.

This is your Raspberry Pi cluster. You can use it to learn Docker, Kubernetes, Serverless, to turn all the cluster nodes’ resources into one supercomputer with the help of simultaneous processing software like OpenMPI.

If you are interested about the cluster board, Seeed has provided the ones for Jetson Nano Module and Jetson NX Module:

• Jetson Mate Cluster Standard
• Jetson Mate Cluster Advanced

If you care more about instruments powered by Raspberry Pi CM4 Compute Module, Seeed provides you:

• The Human Machine Interface Facility - reTerminal
• Software Router with Pre-installed OpenWRT - Mini Router

Seeed Studio has served millions of Raspberry Pi® users around the world. Check it now and find out how we can help your thoughts come to reality!

Applications:

• MySQL or Postgres Database Handle
• Apache Server
• Linux Learning
• Cloud-native Service
• Supercomputer Build

Specifications:

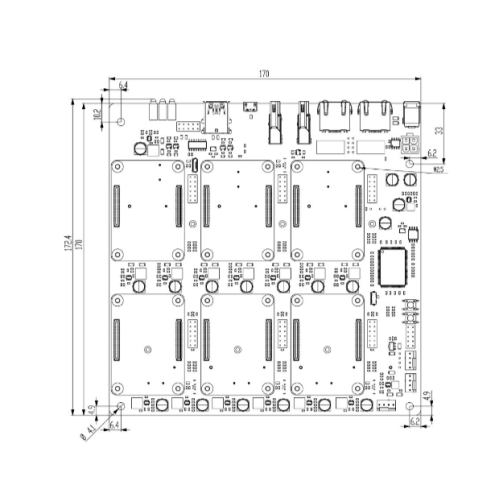

Hardware Overview:

For a more specific diagram of rich interface connectors, please refer to here.

Package Includes:

• 1 x Raspberry Pi CM4 Cluster Mini-ITX Board
• 1 x 90W Power Supply
