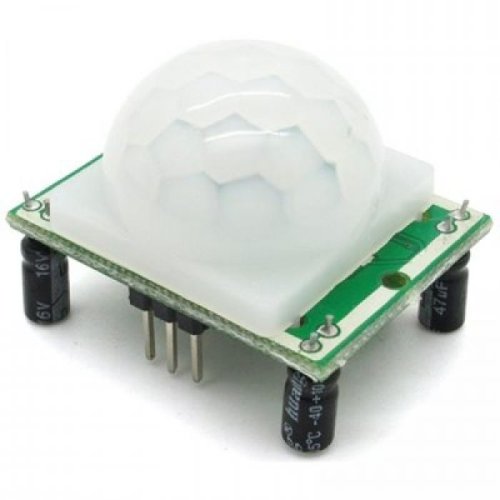

• PIR Motion sensor module
The PIR Motion sensor module is an automatic control module based on infrared technology. It adopts LHI788 probe, which has high sensitivity, high reliability, low voltage working mode and low power consumption. It can be widely used in various types of automatic induction electrical equipment.

Specifications:
  • Input Voltage : DC 4.5V ~ 20V
  • Static Current : <50uA
  • Output Signal : 0V / 3V (Output high when motion detected)
  • Sensing Range : 7 meters (120 degree cone)
  • Delay time : 8s ~ 200s (adjustable)
  • Operating Temperature : -15℃ ~ +70℃
  • Dimensions : 24mm*32mm*25mm(Height with lens)
  • Weight : 6.6g

Applications:

  • Switch
  • Motion sensor
  • Thief-guarding system
  • Industrial automation
Package Includes:
  • 1 x PIR Motion sensor module

Write a review

Please login or register to review

PIR Motion sensor module

  • Brand: Seeed Studio
  • Product Code:Seeed-PIR-Motion-sensor
  • Reward Points:6
  • Availability:In Stock
  • रo 560.00

  • Price in reward points:560

  • 70 or more रo 450.00
