Machine Learning Practical Class Kit is curated to complement our hands-on workshop, empowering you to dive into the world of Artificial Intelligence with ease. It is an excellent opportunity for those looking to integrate AI into their projects without the need for extensive programming knowledge.

Features:

• 10 XIAO ESP32S3 Sense Boards: Meet the needs of one workshop of people, and help students to experience the power of thumb-sized yet robust MCU tailored for AI applications.
• Micro SD Card Tool Kit (10 Sets): Each set includes an SD card and essential accessories, ensuring students have all the tools needed for data handling and model training during and after the workshop.
• The very same kit required in Fab24 Mexico AI Workshop: How to Add AI to Almost Everything.

• The prospect of AI: Discuss the future of AI, including the role of Large Language Models in enhancing device intelligence and user interaction
• Interactive Demonstrations: Experience real-time applications of AI through engaging demonstrations.
• Hands-On Training: Learn the basics of sound and vision model training. Participants will actively engage in collecting and training models using the XIAO ESP32S3 Sense.

Specifications:

Item         Seeed Studio XIAO ESP32S3         Seeed Studio XIAO ESP32S3 Sense

Processor    ESP32-S3R8

                    Xtensa LX7 dual-core,32-bit processor that operates at up to 240 MHZ

Wireless: Complete 2.4GHz Wi-Fi subsystem

                    BLE: Bluetooth 5.0, Bluetooth mesh

Built-in Sensors                         /                                           oV2640 camera sensor for 1600*1200

                                                                                                Digital Microphone

Memory           On-chip 8M PSRAM & 8MB Flash             On-chip 8M PSRAM & 8MB Flash

                                                                                                Onboard SD Card Slot, supporting 32GB FAT

lnterface  1x UART,1x IIC,1x llS,1x SPl,11xGPIOs (PWM)，9x ADC,1x User LED,1x Charge LED

                 1x Reset button,1x Boot button

                                                                                                        1x UART,1x lIC,1x lIS,1x SPI,11x GPIOs (PWM),9xADC，1x User LED, 1x Charge LED,1x B2B Connector(with 2 additional GPIOs)

                                                                                                         1x Reset button, 1x Boot button

Dimensions: 21 x 17.5mm    21 x 17.5 x 15mm (with expansion board)

Power: Input voltage (Type-C): 5V

            lnput voltage (BAT): 4.2V

            Circuit operating Voltage (ready to operate):

           Type-C:5V@19mA

           BAT: 3.8V@22mA

Circuit operating Voltage (ready to operate): Type-C: [email protected]

                                                                       BAT: [email protected] (with expansion board)

                                          /

                                                   Webcam Web application:

Type-C:

Average power consumption: 5V/138mA

Photo moment: 5V/341mA

Battery:

Average power consumption: 3.8V/154mA

Photo moment: 3.8V/304mA

/

Microphone recording & SD card writing:- Type-C:

Average power consumption: 5V/46.5mA

Peak power consumption: 5V/89.6mA

Battery:

Average power consumption: 3.8V/54.4mA

Peak power consumption: 3.8V/108mA

Charging battery current：100mA

Charging battery current：100mA

Low Power Consumption Model

(Supply Power: 3.8V)

Modem-sleep Model:~ 25mA

Light-sleep Model: ~ 2 mA

Deep Sleep Model:~14 μA

Modem-sleep Model: ~44mA

Light-sleep Model: ~5mA

Deep Sleep Model: ~3mA

Wi-Fi Enabled Power Consumption

Active Model: ~ 100 mA

Active Model: ~ 110 mA (with expansion board)

BLE Enabled Power Consumption

Active Model: ~85 mA

Active Model: ~ 102 mA (with expansion board)

Working Temperature

-40°C ~65°C

ECCN/HTS

• HSCODE 8543709990
• USHSCODE 8543708800
• UPC
• EUHSCODE 8543709099
• COO CHINA

Documentations:

• SenseCraft AI Platform
• AI Workshop - How to add AI to Almost Everything(Updating)

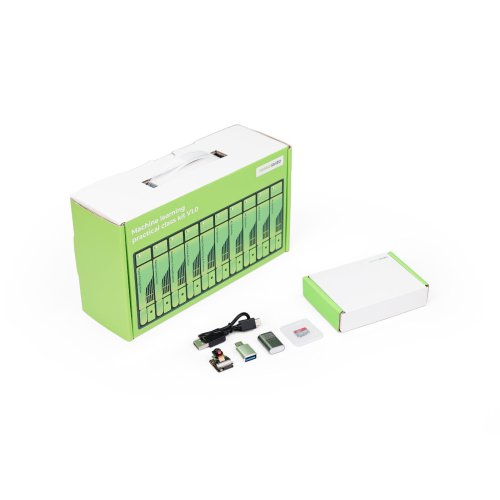

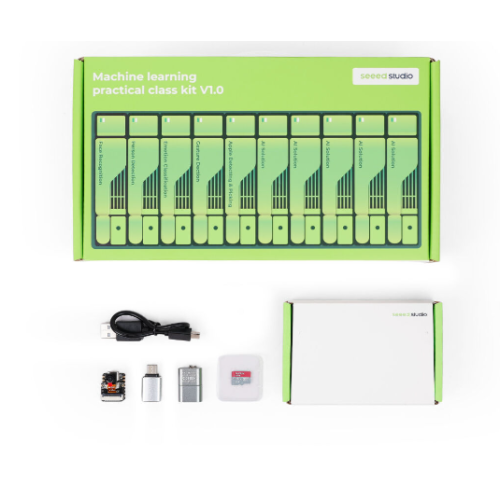

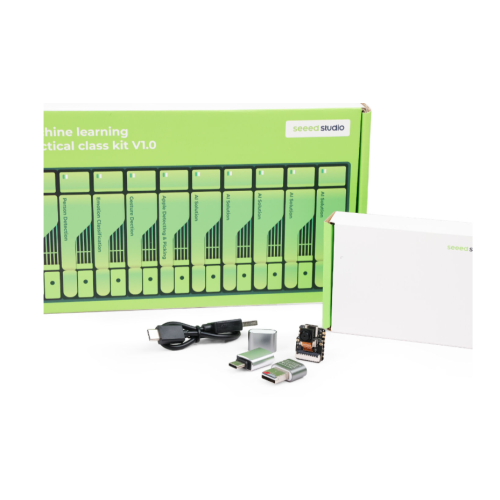

Package Includes:

• 10 x XIAO ESP32S3 Sense
• 10 x SanDisk 32Gb Micro SD Card

• 10 x SD card reader

• 10 x USB Type-C to USB Type-A converted function module

• 10 x 20cm Type-A to Type-C cable
