LinkStar-H68K portable router equips quad-core Cortex-A55 RK3568 chip, featuring 4 Ethernet interfaces for dual-2.5G and dual-1G, while providing great extensibility and media player functionality, functioning well both indoors and outdoors, whether for traveling or stationary.

LinkStar-H68K equips quad-core Cortex-A55 RK3568 chip, featuring dual-1G Ethernet and dual-2.5G Ethernet as 4 network interfaces overall, assembled in one portable metal box, designed for high-speed network. It comes with sufficient expansion ability and media player functionality, presenting you with a fully functional device for office work and home entertainment, as well as anywhere you travel around.

High Storage Capacity

This compact equipment equips onboard 32GB eMMC, along with one SD card slot and one USB3.0 Type-C which supports an external hard drive for storage extension. Combined with fast-speed Ethernet, you can use it to establish a NAS(Network Attached Storage) to store and access abundant information over a network without physical file transformation.

4K Multimedia Player

With such storage and network capability, it houses an HDMI 2.0 port and a 3.5mm microphone port, installing Android 11 OS in advance, outputting 4K immersive visual, all of which make it a neat network media player to stream media and display instantly, while providing access to online services like Spotify or YouTube.

Great Extensibility

Additionally, it provides an SD card slot, one USB 3.0, and two USB 2.0 ports for further usage. You can connect a USB printer with it for print serving in the office which can be available to the entire network. Meanwhile, you can switch to a different Operating System by inserting different SD cards without overwriting the original one.

Multiple OS Support

Not only Linux systems like Ubuntu 20.04, but you can also run it with a dedicated routing system like OpenWRT for building a fast speed and secure router in concentration. You can utilize it to establish a VPN router of your own, realize remote control, block advertising, and other personal customization by your definition.

The design of LinkStar-H68K is light and mini-sized that it can be lifted by one singular hand. It is built around metal for passive heat dissipation. You can charge it with a 5-24V power adaptor and 5V Type-C connector. It is your HTPC for home entertainment, or an office PC connected to video conferencing on your business trip.

Note : The current Android and ubuntu firmware does not support the MT7921 WIFI module.

With 4GBRAM Wifi 6



Features :

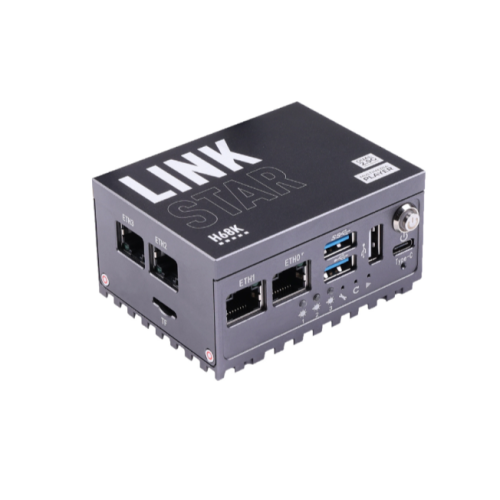

  • Lightning-fast Network Ports: Dual 2.5Gbps Ethernet & dual 1Gbps Ethernet, 4 interfaces overall for fast speed router deployment
  • Outstanding Wi-Fi 6 Technology: Up to 1200Mbps, support 2.4G/5G dual-band for high throughput performance
  • High Storage Capacity: Equip onboard 32Gb eMMC, an SD card slot, and a USB 3.0 Type-C for massive storage, along with one USB 3.0 and two USB 2.0 Type-A ports
  • Multiple Operating Systems Supported: Android, Ubuntu, OpenWRT, Debian

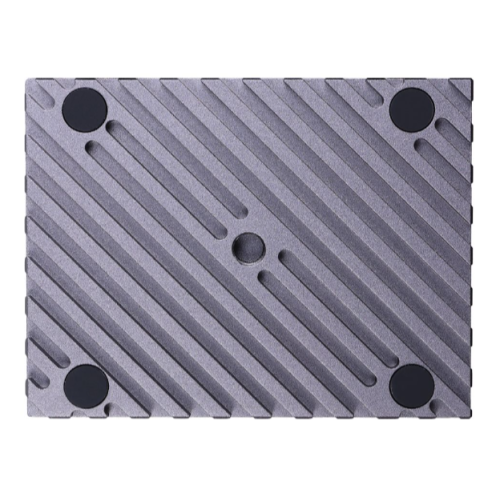

  • Pocket-sized Metal Box: Carry everywhere, built around with metal for passive heat dissipation

Application :

  • VPN router
  • NAS
  • Remote control/work
  • Game Server
  • Block advertising
  • Print server
  • Firewall
  • Tethering

Specifications :

Parameters Details
Processor Rockchip RK3568 for up to 2.0GHz
CPU Quad-core 64-bit Cortex-A55
GPU ARM G52 2EE
NPU 1 TOPS@INT8
Multi-Media 4K@60fps H.265/H.264/VP9 video decoder
1080@60fps H.265/H.264 video encoder
Support 8M ISP, HDR
Storage onboard 32GB eMMC
1x SD card slot for storage expansion
Operating System Pre-installed Android 11 OS
Support Ubuntu, Debian, Armbian, Android, Openwrt, Buildroot
Wireless Dual-band 2.4G/5G Wi-Fi 6
M7921E module
NIC 2x 1G Ethernet NIC RTL8211F
2x 2.5G Ethernet NIC RTL8125B
Video Output 1x HDMI2.0 interface for 4K output
Audio 1x 3.5mm four-piece headphones for both input and output
USB 1x USB 3.0 Type-A
1x USB 3.0 Type-C, capable of storage expansion and 5V power supply
2x USB 2.0 Type-A
Power Supply operating voltage: 5V~24V DC(12V-1A DC recommended)
recommend: 12V-1A DC
recommend(with additional hardware driver): 12-2A DC
recommend(with Type-C connector): under 5V
Power Consumption 8W
Operating temperature -10 ~ 55°C

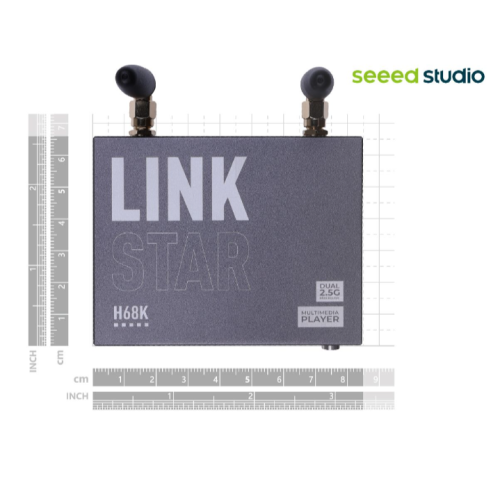

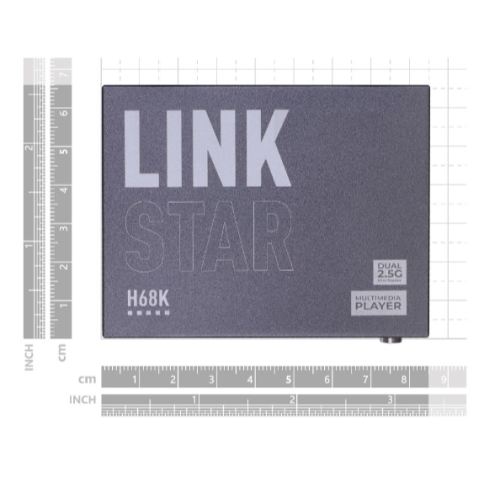

Dimensions 80*60*40mm

Hardware Overview


FAQ

Why does the SD card with OpenWRT operating system not respond when I inserted it into the board?

If you want to use an SD card to switch to OpenWRT OS, the main board should be installed with Android OS in eMMC for supporting it.

Documents :

ECCN/HTS

  • HSCODE - 8471419000
  • USHSCODE - 8471410150
  • UPC
  • EUHSCODE - 8471707000
  • COO - CHINA

Package Includes for H68K-0232 :

  • 1 x LinkStar-H68K-0232 2GB RAM & 32GB eMMC

Package Includes for H68K-1432 :

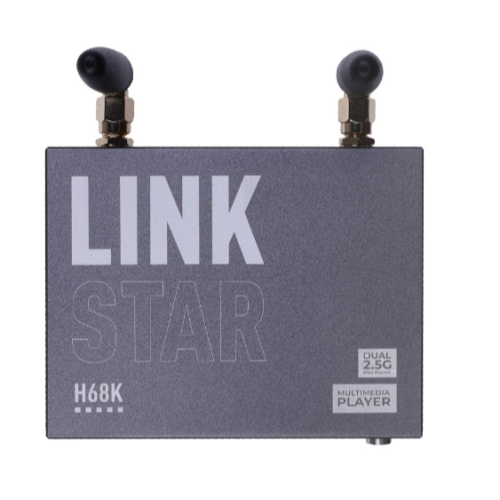

  • 1 x LinkStar-H68K-1432 4GB RAM & 32GB eMMC with Wi-Fi 6
  • 2 x Anntenna

Write a review

Please login or register to review

LinkStar-H68K-0232/H68K-1432 Router Pre-installed Android 11

  • Brand: Seeed Studio
  • Product Code:Seeed-LinkStar-Router-Android-11
  • Reward Points:119
  • Availability:In Stock
  • रo 11,864.00

  • Price in reward points:11864

  • 100 or more रo 11,128.00
