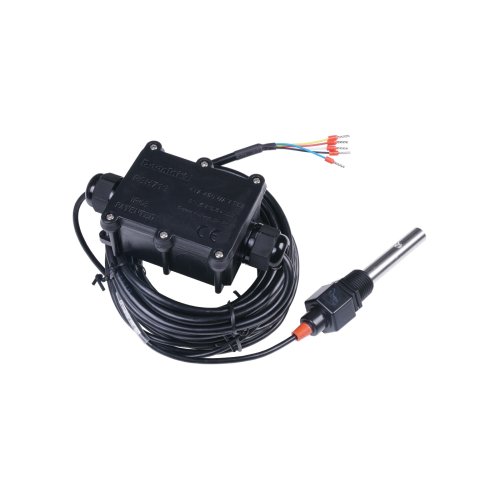

The ECTDS10 measures the conductivity, salinity and total dissolved solids (TDS) in a liquid. The output signal can be RS485, Analog Voltage or Analog Current. Determining the conductivity, salinity and TDS of a liquid has many important applications. The ECTDS Sensors are widely used in monitoring soil conditions and water quality.

This ECTDS10 Sensor was designed with industry standards. It is designed with ATC (automatic temperature compensation), making sure the data is accurate regardless of the temperature changes. This ECTDS Sensor is IP65 rated, waterproof in a tight seal, capable of withstanding long-term constant use in professional application scenarios. It comes with a cover that is rated IP68.

Features:

High performance: high accuracy, fast response, good repeatability
Universal protocol: MODBUS RS-485,0-2V or 4~20mA current
Wide-range power supply: 3.9V ~ 30V
Robustness: suitable to be immersed in soil or water for a long time
Durable: anti-corrosion, automatic temperature compensation
User-friendly: Easy to install and integrate

Specifications:

Output Interface	Analog Voltage 0-2V (Output resistance ~0ohm)	Analog Current 4-20mA (Load Resistor<500ohm)	RS485 Modbus-RTU
Power Supply	3.9-30V/DC	12-30V/DC	3.9-30V/DC
Power Consumption	6mA@24V DC	30mA@24V DC (with 20mA output signal)	6mA@24V DC
EC Measurement	Range: 0-5000us/cm, 10000us/cm, 20000us/cm Resolution: 0-10000us/cm, 10us/cm; 100000-20000us/cm, 50us/cm Accuracy: 0-10000us/cm, ±3%; 10000-20000us/cm, ±5% EC temperature compensation: 0-50°C
Temperature Measurement	Range: -40~80°C, Resolution:0.1°C, Accuracy:±0.5°C
IP Ratings	Electrode：IP68
	Transmitter：IP65
Operating Temperature	-40~85°C

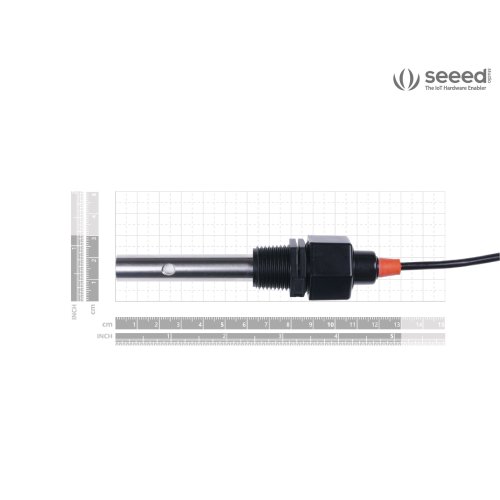

Installation	Electrode：1/2"NPT screw threads
	Transmitter: Mounting hole

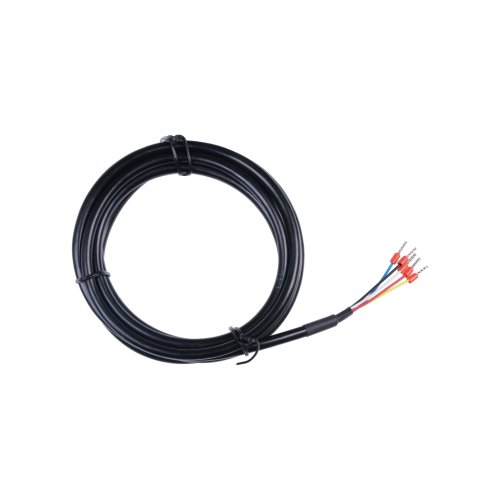

Cable Length	Power and Signal Cable：2 meters or Customize
	Electrode Cable：5 meters
Dimension	Electrode：1/2"NPT screw threads
	Transmitter：128x70x42mm
