This IR thermal camera carries a 16x12 array of thermal sensors (MLX90641) and it can detect the temperature of objects from far away with a center area accuracy of ±1℃ and average accuracy of ±1.5℃. In order to obtain the thermal images easily, the I2C protocol is used to get the low-resolution images from the camera. The FOV (Field of View) of this camera is 55°x35°, and the temperature measurement range is -40℃ to 300℃.

How Does Thermal Imaging Work?

All objects emit some amount of infrared radiation. This IR thermal imaging camera has a sensitive heat sensor that can detect tiny differences in temperature from the objects in the surrounding. Then it collects this radiation information from the objects and creates an electronic image that is based on the temperature difference information. The hotter an object is, the more infrared radiation it produces. However, this Infrared light is invisible to the naked eye and if the intensity is too high, it can be felt as heat.

This module can be connected to an MCU using the I2C interface. However, it needs an MCU that has over 20000 bytes of RAM to drive the camera. As a matter of fact, Dev boards like Arduino UNO cannot be used with this Sensor camera due to its lower ability of calculation. We recommend you choose Arch Mix as an MCU to control the camera because it really has an excellent performance to process the complex data from the IR sensor camera.

Features:

• Compact size 16x12 pixel IR thermal sensor array (MLX90641)
• High FOV (field-of-view) of 55°x35° to capture more area
• Wide temperature measurement range (-40℃~300℃)

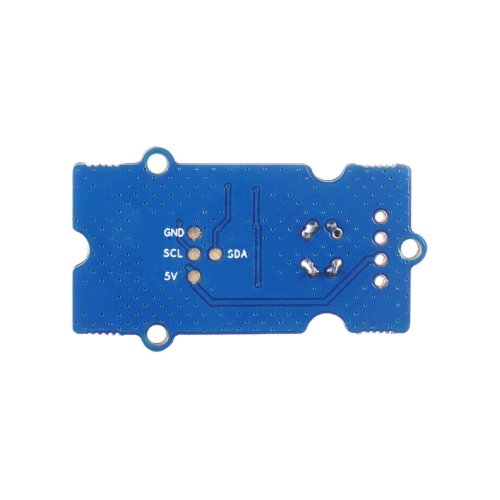

• I2C Grove interface for easy communication with an MCU
• Fully calibrated IR array for convenient setup

Specifications:

• Resolution: 16x12
• FOV: 55°x35°
• Measuring range: -40℃ ~ 300℃
• Refresh Rate: 0.5Hz ~ 64Hz
• Interface: I2C
• Voltage: 3.3V-5V
• Current: ~18mA

Applications:

• High precision non-contact temperature measurements
• Microwave ovens
• Intrusion / Movement detection systems
• Temperature sensing element for residential, commercial and industrial building air conditioning
• Industrial temperature control of moving parts
• Visual IR thermometers

Documents:

• MLX90641 Datasheet
• MLX90641 Visualization

Package Includes:

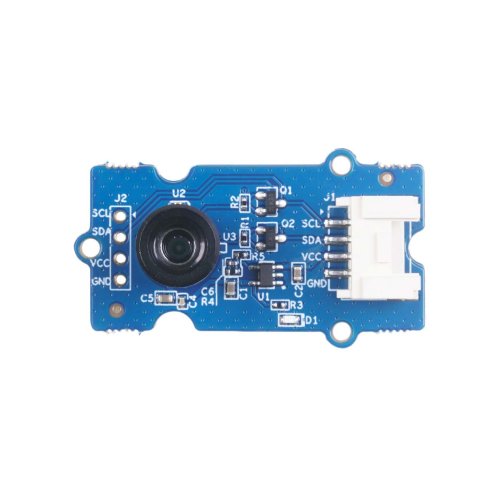

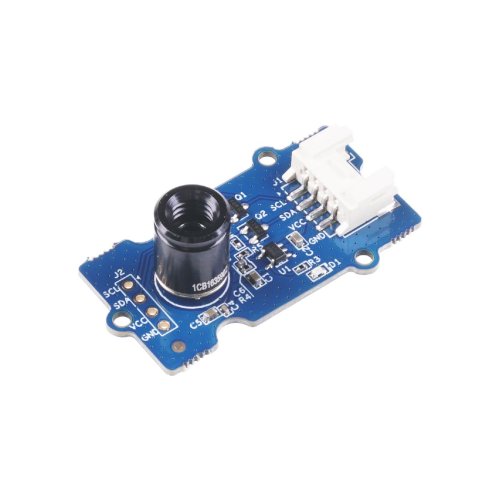

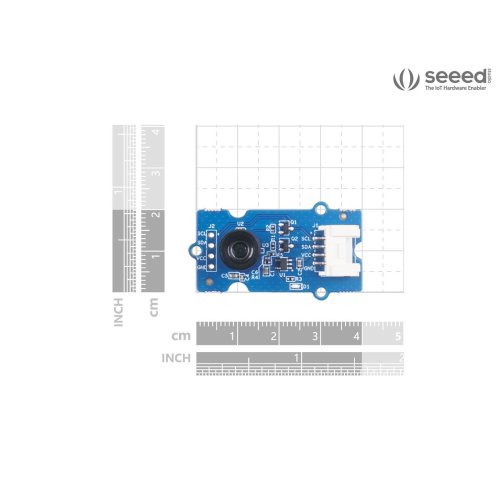

• 1 x Grove - Thermal Imaging Camera - MLX90641 BCB 16x12 IR Array with 55° FOV
