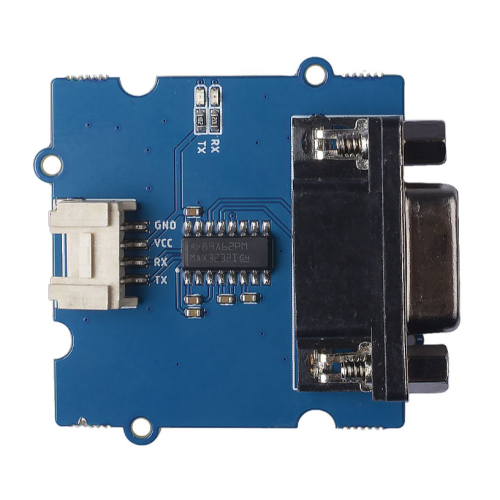

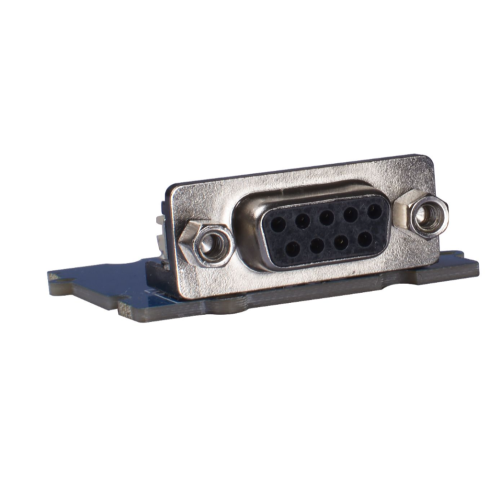

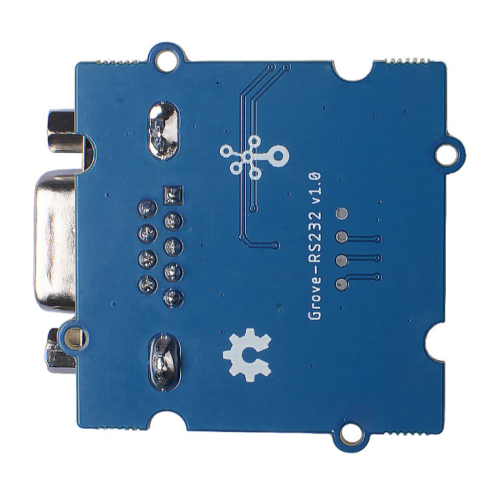

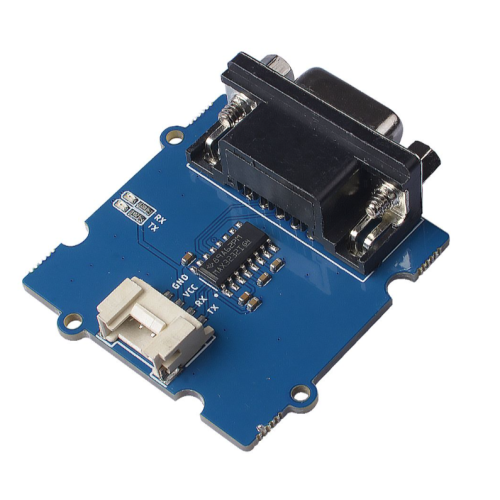

The Grove – RS232 is made for an easy microcontroller connection with your computer. It allows simple Arduino serial communication to take place, through plug and play instead of having to solder, use jumper wires, etc.

RS-232 has been a serial communication standard in the industry for years. It’s still widely used and commonly heard in the industry though it dates back to 1969. However, with technological advancements, there are now faster data transmission methods. The RS232 is defined as the “Interface between data terminal equipment and data communications equipment using serial binary data exchange”.

Most of the MCUs use TTL levels, and the computer serial port generally uses 232 levels. If we want the computer to communicate with the MCU, we need this Grove - 232. The communication between your Arduino boards and the computer will be exceptionally convenient with the integrated Grove interface

This module is based on Max3232, it supports multiple baud rate communication and theoretically supports communication up to 230400bps baud.

We have developed more than 400 Grove modules, covering a wide range of applications that can fulfil various needs. Click to explore the Grove Sensor family and get started to Grove your Idea. For all Grove users (especially beginners), we provide you guidance PDF documents. Please download and read through Preface - Getting Started and Introduction to Grove before your use of the product.
Features:
  • Stable, high speed: Alternative High-Speed Terminal-CompatibleDevices (1 Mbit/s)
  • High cost performance: Meets or Exceeds the Requirements of TIA/EIA-232-F and ITU V.28 Standards
  • ±15-kV ESD Protection: RS-232 Bus-Terminal ESD Protection Exceeds ±15 kV Using Human-Body Model (HBM)
  • Low power consumption: Low Supply Current: 300 μA Typical
  • Grove compatible interface: The product ensures "Plug and Play" and could be versatile for various applications of Grove
Specifications:
  • Supply Voltage 3.3V / 5V
  • Driver input voltage 0V ~ 5.5V
  • Receiver input voltage -25V ~ +25V
  • Supply current(No load) 0.3mA
  • Operating free-air temperature -40℃ ~ 85℃
  • Storage temperature range -65℃ ~ 150℃
  • Maximum data rate 250 Kbit/s
  • Support baud rate 300bps ~ 230400bps
  • Length 46mm
  • Width 42mm
  • Height 16.5mm
  • size L: 40mm W: 40mm H: 15mm
  • Package size L: 140mm W: 90mm H: 15mm
Applications:
  • Hand-Held Equipment
  • Palmtop PCs
  • Battery-Powered Systems
  • PDAs
  • Notebooks
  • Laptops
Hardware Overview:

ECCN/HTS
  • HSCODE 8473309000
  • USHSCODE 8471410150
  • UPC 841454121947
  • EUHSCODE 8471707000
  • COO CHINA
  • EU DoC 1
  • RoHS 1
  • UK DoC 1
Documentations:
Package Includes:
  • 1 x Grove - RS232 for Communicate with The MCU

Write a review

Please login or register to review

Grove - RS232 for Communicate with The MCU

  • Brand: Seeed Studio
  • Product Code:NR-Seeed-Grove-RS232-Communicate-MCU
  • Reward Points:8
  • Availability:In Stock
  • रo 813.00

  • Price in reward points:813

  • 85 or more रo 693.00
