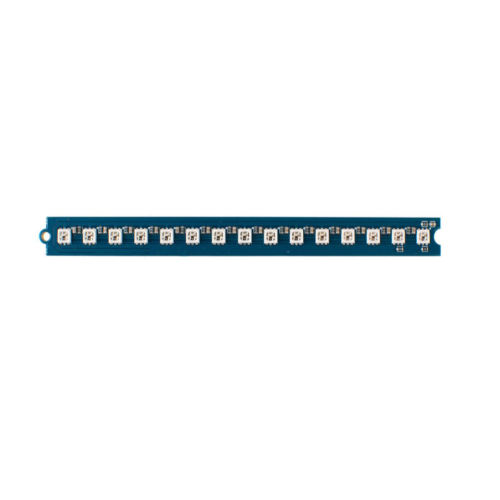

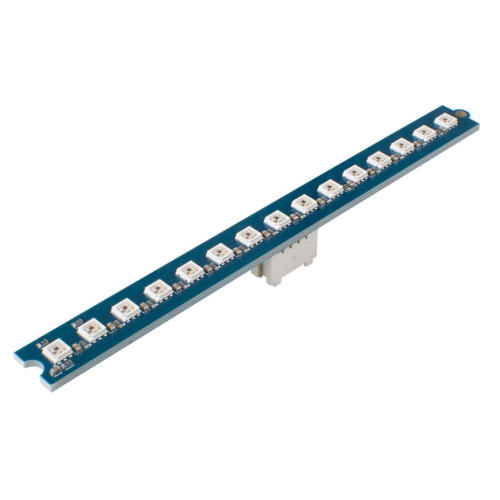

Grove - RGB LED Stick (15-WS2813 Mini) is a cost-effective full color LED stick with 15 chainable and programmable WS2813 mini LEDs, and with only one signal pin you can control all 15 LEDs easily. you can use this little stick to create hundreds and thousands of light effects.

Grove - RGB LED Stick is integrated with 15 full-color RGB LEDs with 2KHz refresh frequency, and Each pixel gray levels are 256 on the stick. All the LEDs are WS2813 Mini, which is an intelligent control and highly cost-effective LED. The WS2813 supports signal break-point continuous transmission, which means you can continue to use other LEDs with one led being broken.

WS2813-Mini is an intelligent control LED light source that the control circuit and RGB chip are integrated with a package of 3535 components. Its internal includes an intelligent digital port data latch and signal reshaping amplification drive circuit. Also include a precision internal oscillator and a 12V voltage programmable constant current control part, which achieves a highly consistent color effect. Dual-signal wires version, any pixel’s failure won't affect signal transfer and the total emitting effect.

You can use this little stick to create hundreds and thousands of light effects, you can use it on Christmas or Halloween decorations even your light shows!

Grove RGB LED Stick (10-WS2813 Mini)
Grove RGB LED Stick (15-WS2813 Mini)
Grove RGB LED Stick (20-WS2813 Mini)

This Grove - RGB LED stick is similar to Grove - RGB LED stick (10-WS2813 Mini) but more in the number of LEDs. It contains 15 LEDs.

Signal break-point continuous transmission

As long as no two or more adjacent LEDs are broken, the remaining LEDs will be able to work normally

Features:

Full color RGB: Each pixel gray levels are 256, which achieves 16777216 full-color display, 15 LEDs beads operate independently and the refresh frequency reaches to 2KHz
Multi-Components combination: WS2813B LED with 5050 components to display different lighting effects
Breakpoint Resume: In the transmission of dual-signal wires, when a LED or LED group fails, it will not cause the other LED not to light up.
High transmission performance: Any two-point distance of more than 5M transmission signal without any increase in circuit and Data transmitting at speeds of up to 800Kbps.
Grove Compatible: you can just plug your LED stick into Seeedunio or Arduino+BaseShild via Grove Cable, with no soldering and complicated wiring.

Specifications:

Operating Voltage:3.3V / 5V
Operating Temperature:-25℃ ~ +85℃
Storage Temperature:-40℃ ~ +105℃
RGB Channel Constant Current:16mA
Interface:Digital
Size:L: 108mm W: 10mm H: 10mm

Applications:

Guardrail tube series, point light display series, flexible/rigid strips series, module series applications.
Lighting stage costumes, innovative gadgets or any other electronic products.

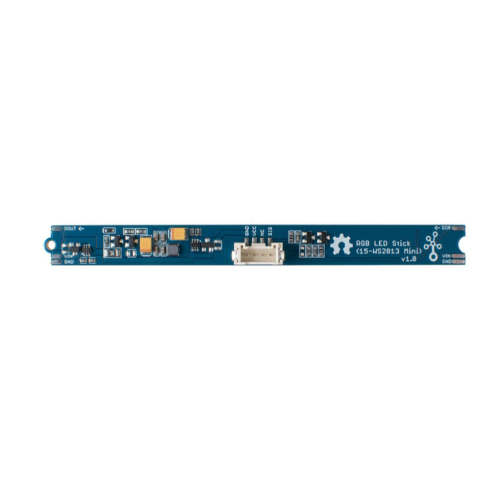

Hardware Overview:
