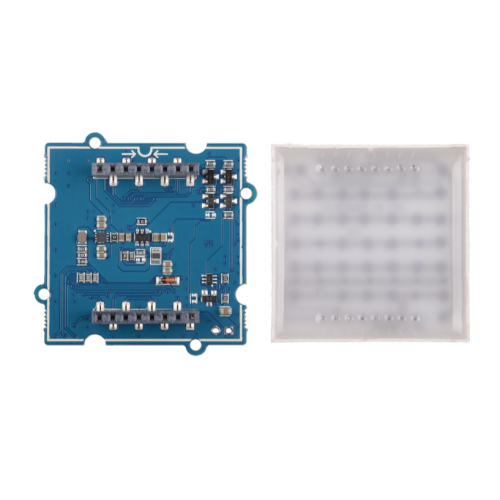

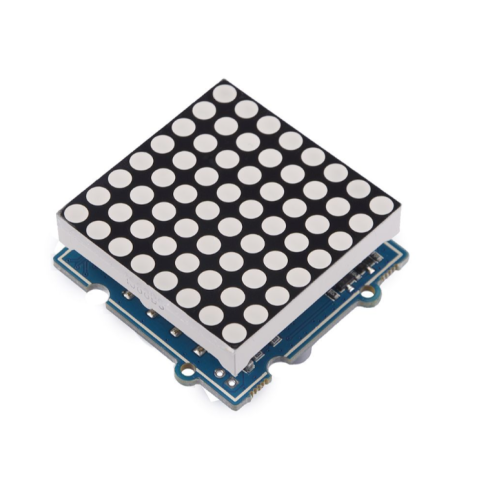

Grove - Red LED Matrix w/Driver is based on HT16K33. It is the combination of the 20mm 8 x 8 square LED Matrix - Red and the Grove - LED Matrix Driver and usually used to display simple numbers and images.

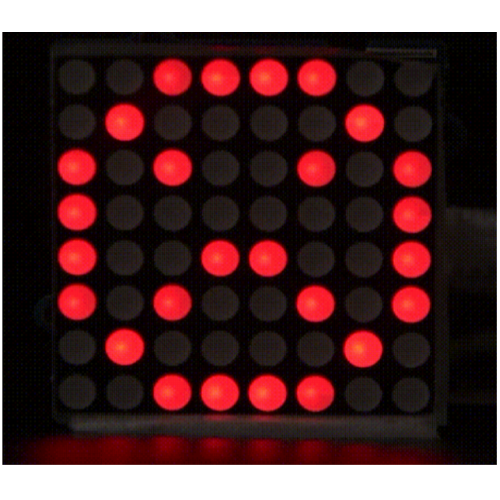

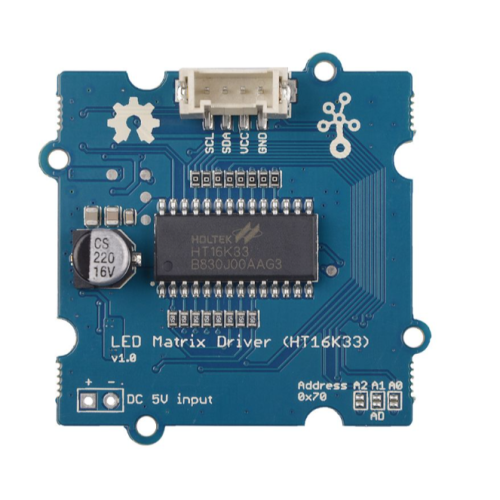

LED Matrix is low cost and usually used to display simple numbers and images. Grove - Red LED Matrix w/Driver is the combination of the 20mm 8 x 8 square LED Matrix - Red and the Grove - LED Matrix Driver. The HT16K33 is a memory mapping and multi-function LED controller driver which allows you to control the LED matrix with our prepared and easy-to-use libraries, or you can create your own library to control it to satisfy your need. The software configuration features of the HT16K33 makes it suitable for multiple LED applications including LED modules and display subsystems. The HT16K33 is compatible with most microcontrollers and communicates via a two-line bidirectional I2C-bus.

Features:

  • Integrated RC oscillator
  • R/W address auto increment
  • Max. 8 x 8 patterns
  • I2C-bus interface

Specifications:

  • Supply Voltage:3.3V / 5V
  • LED Matrix Dot NO:8 x 8
  • Operating temperature:-40~85℃
  • Storage temperature:-50~125℃
  • Interface:I2C
  • I2C address:0x70(defult)

                                  0x71~0x77(configurable)

  • Size:L: 40mm W: 40mm H: 21mm
  • Package size:L: 140mm W: 90mm H: 20mm

Applications:

  • Industrial control indicators
  • Digital clocks, thermometers, counters, multimeters
  • Combo sets
  • VCR sets
  • Instrumentation readouts
  • Other consumer applications
  • LED Displays

Hardware Overview:


ECCN/HTS

  • HSCODE 8531200000
  • USHSCODE 8531809051
  • UPC
  • EUHSCODE 8531202090
  • COO CHINA
  • EU DoC 1
  • RoHS 1
  • UK DoC 1

Documentations:

Package Includes:

  • 1 x Grove - Red LED Matrix w/Driver

Write a review

Please login or register to review

Grove - Red LED Matrix w/Driver

  • Brand: Seeed Studio
  • Product Code:Seeed-Grove-Red-LED-Matrix
  • Reward Points:9
  • Availability:In Stock
  • रo 946.00

  • Price in reward points:946
