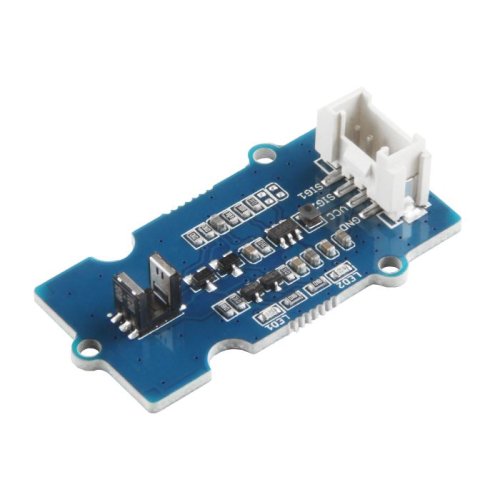

The Grove - Optical Rotary Encoder(TCUT1600X01) is a transmissive sensor that includes an infrared emitter and two phototransistor detectors. Usually, the infrared emitter emits infrared rays, the phototransistor detectors receives the infrared rays, then the phototransistor is turned on, both of the output is High, the on-board LED indicators light up. When there is an obstacle blocking, the phototransistor can not receive the infrared rays, so the phototransistor will be turned off and both of the output will be Low, the on-board LED indicators fade away.

Features :

  • Double phototransistor detectors, can determine the direction of rotation

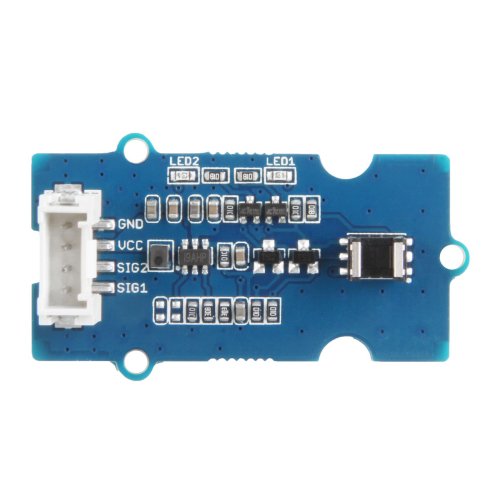

  • On-board LED indicators

  • Grove Interface, easy to use

Specifications:

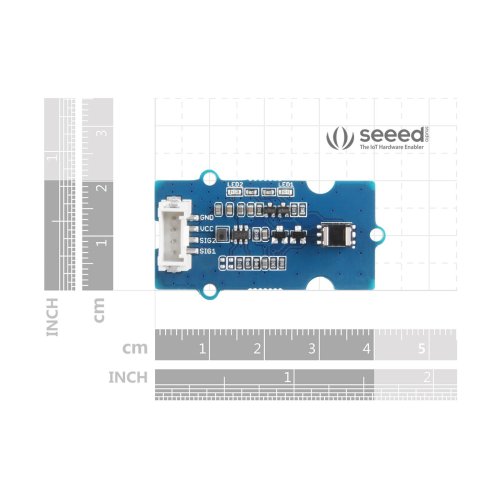

Dimensions 40mm x20mm x10mm
Weight G.W 10g
Battery Exclude
Operating Voltage 3.3V / 5V
Operating Temperature Range 40°C to +105°C
Storage Temperature Range -40°C to +125°C
Emitter Wavelength 950 nm
Gap 3 mm
Interface Digital

Applications :

  • Automotive optical sensors

  • Accurate position sensor for encoder

  • Sensor for motion, speed, and direction

  • Sensor for “turn and push” encoding

Documents:

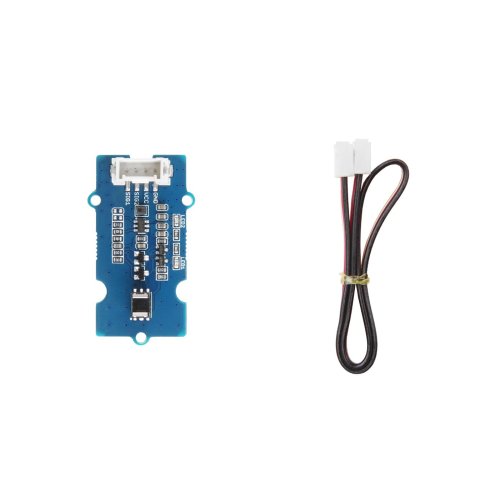

Package Includes :

Grove - Optical Rotary Encoder(TCUT1600X01) 1
Grove Cable 1

Write a review

Please login or register to review

Grove - Optical Rotary Encoder - TCUT1600X01

  • Brand: Seeed Studio
  • Product Code:Seeed-Grove-Encoder-TCUT1600X01
  • Reward Points:10
  • Availability:In Stock
  • रo 1,040.00

  • Price in reward points:1040

  • 85 or more रo 893.00
