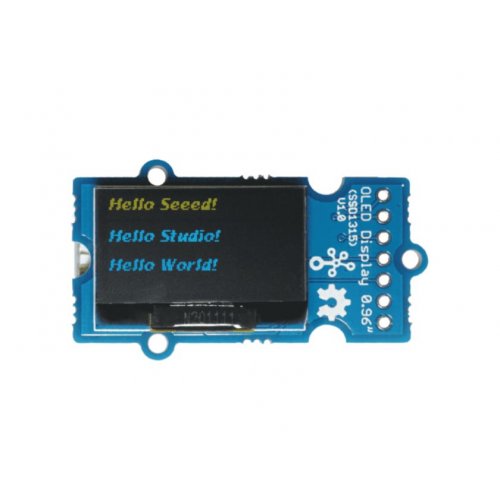

The Grove - OLED Yellow & Blue Display 0.96 (SSD1315) is a blue and yellow bi-colour display with 128 x 64 resolution. It has a user-friendly design and better performance with both I2C and SPI available.

We had Grove - OLED Display 0.96" (SSD1315), a monochrome(white) 128×64 pixels passive display matrix module with Grove I2C Interface, and now we have the Grove - OLED Yellow & Blue Display 0.96 (SSD1315), a blue and yellow bi-colour display with 128 x 64 resolution.

The Grove - OLED Yellow & Blue Display 0.96 (SSD1315) is a blue and yellow bi-colour display with 128 x 64 resolution. Compared with LCDs, there are many advantages of OLED(Organic Light Emitting Diode) like self-emission, high contrast ratio, slim/thin outline, wide viewing angle and low power consumption. The display works on both 3.3V and 5V supply voltage.

You can use either the I2C or SPI interface to light up the display with your microcontroller to display words, images, and whatever you want. SPI helps to get the quicker images reaction which brings a better product experience.

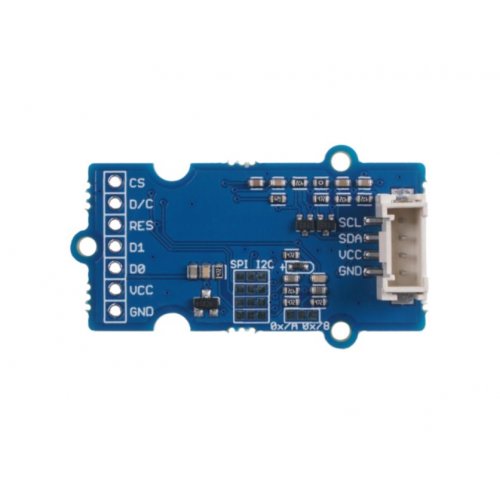

Thanks for suggestions from our customers, we have put the grove connector on the back. Such a user-friendly design helps easily hide the connecting wires and makes a pretty production display.

Features:

  • 3.3V/5V power supply compatible
  • Changeable I2C address
  • SPI available
  • Low power consumption
  • Yellow and Blue two-color 128×64 pixels
  • High contrast, high brightness
  • Wide operating temperature range: -40℃ ~ +85 ℃
  • Grove connector is hidden on the back

Specifications:

  • Input voltage: 3.3V / 5V
  • Output Voltage: 0 ~ 2.3V
  • Pixels: 128 x 64
  • Temperature Range: -40℃ ~ +85 ℃
  • Interface: I2C/SPI
Documents:

Package Includes:

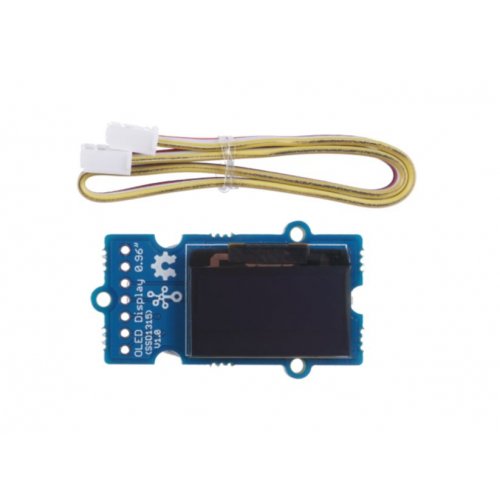

  • 1 x Grove - OLED Yellow and Blue Display 0.96 (SSD1315) - SPI/IIC -3.3V/5V

Write a review

Please login or register to review

Grove - OLED Yellow and Blue Display 0.96 (SSD1315) - SPI/IIC -3.3V/5V

  • Brand: Seeed Studio
  • Product Code:NR-Seeed-Grove-0.96-Yellow-Blue
  • Reward Points:6
  • Availability:In Stock
  • रo 560.00

  • Price in reward points:560

  • 90 or more रo 507.00
