The Grove - OLED Display 1.12 V3.0 (SH1107) is a monochrome display with 128 x 128 resolution. Compared with LCDs, there are many advantages of OLED (Organic Light Emitting Diode) like self-emission, high contrast ratio, slim/thin outline, wide viewing angle and low power consumption. The display works on both 3.3V and 5V supply voltage.

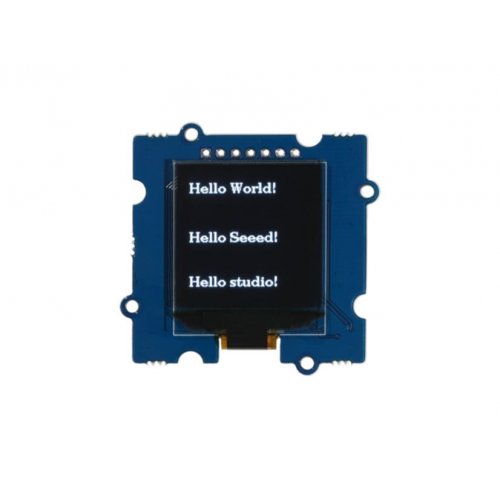

You can use either the I2C or SPI interface to light up the display with your microcontroller to display words, images, and whatever you want. SPI helps to get the quicker images reaction which brings a better product experience.

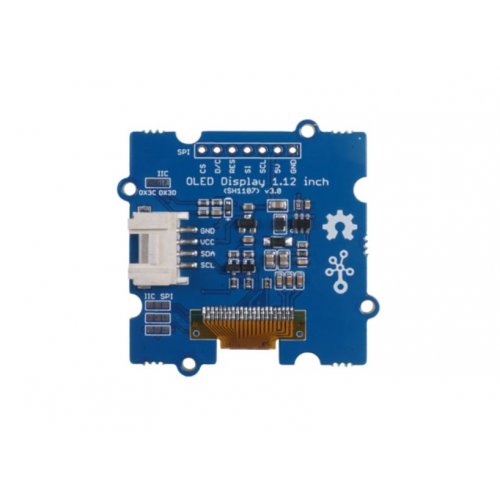

Thanks for suggestions from our customers, we have put the grove connector on the back. Such a user-friendly design helps easily hide the connecting wires and makes a pretty production display.

Features:

  • 3.3V/5V power supply compatible
  • Changeable I2C address
  • SPI available
  • Low power consumption
  • monochrome 128×128 pixels
  • High contrast, high brightness
  • Wide operating temperature range: -40℃ ~ +85 ℃
  • Grove connector is hidden on the back

Specifications:

  • Input voltage: 3.3V / 5V
  • Output Voltage: 0 ~ 2.3V
  • Pixels: 128 x 128
  • Temperature Range: -40℃ ~ +85 ℃
  • Interface: I2C/SPI
Documents:

Package Includes:

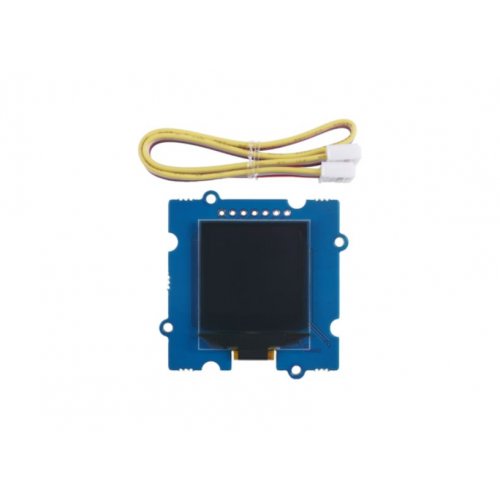

  • 1 x Grove - OLED Display 1.12 (SH1107) V3.0 - SPI/IIC -3.3V/5V

Write a review

Please login or register to review

Grove - OLED Display 1.12 (SH1107) V3.0 - SPI/IIC -3.3V/5V

  • Brand: Seeed Studio
  • Product Code:NR-Seeed-Grove-1.12-SH1107
  • Reward Points:13
  • Availability:Back-order
  • रo 1,320.00

  • Price in reward points:1320

  • 90 or more रo 1,160.00
