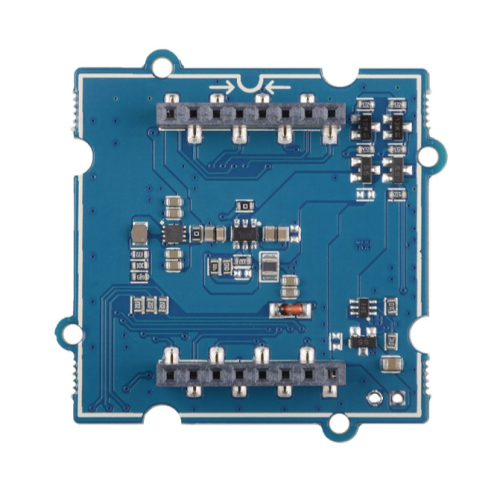

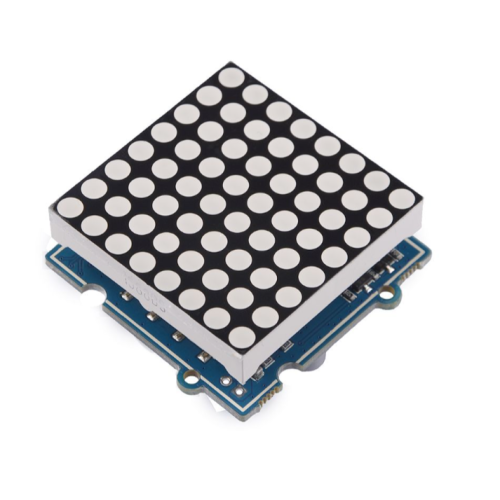

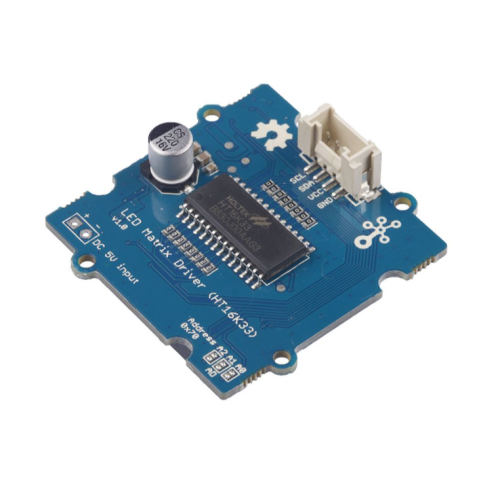

LED Matrix is low cost and usually used to display simple numbers and images. The Grove - LED Matrix Driver is the I2C based product which allows you to control the LED matrix with our prepared and easy-to-use libraries, or you can create your own library to control it to satisfy your need. The 8*8 LED Matrix can be assembled and unassembled from the driver board easily, so it is convenient to change different color LED matrix display based on your need.

Attention

• This module do not contain a the RED LED Matrix, it's only a drive board

Features:

• Integrated RC oscillator

• R/W address auto increment
• Max. 8 x 8 patterns
• I2C-bus interface

Typical Application:

• Industrial control indicators

• Digital clocks, thermometers, counters, multimeters
• Combo sets
• VCR sets
• Instrumentation readouts
• Other consumer applications
• LED Displays

Pin Out

ECCN/HTS

• HSCODE 8531909000
• USHSCODE 8471490000
• UPC
• EUHSCODE 8543709099
• COO CHINA
• EU DoC 1
• RoHS 1
• UK DoC 1

Documentations:

• Wiki

Package Includes:

• 1 x Grove - LED Matrix Driver (HT16K33)
