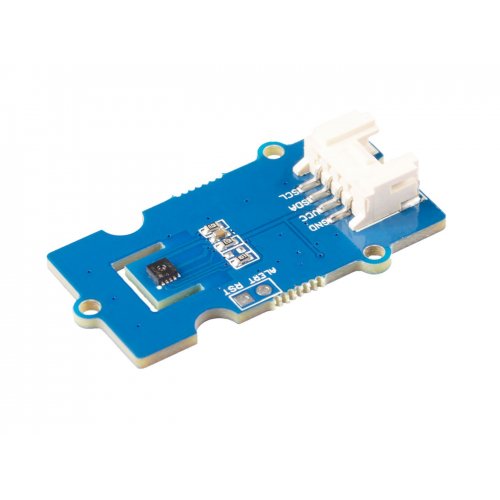

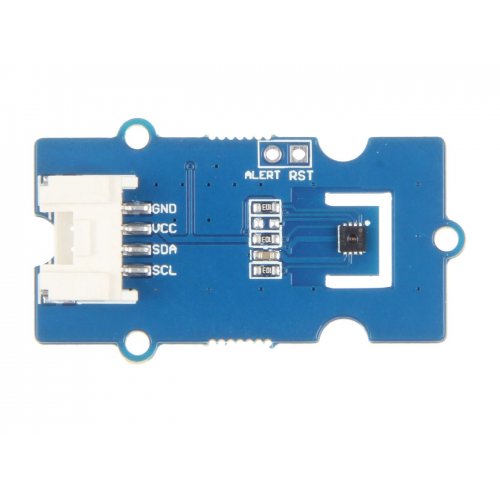

Grove - I2C High Accuracy Temp&Humi Sensor(SHT35) is based on SHT3x-DIS, which is the next generation of Sensirion’s temperature and humidity sensors. It builds on a new CMOSens® sensor chip that is at the heart of Sensirion’s new humidity and temperature platform. The SHT3x-DIS has increased intelligence, reliability and improved accuracy specifications compared to its predecessor. Its functionality includes enhanced signal processing, two distinctive and user selectable I2C addresses and communication speeds of up to 1 MHz.

Features:

• High accuracy of ±1.5 %RH and ±0.1 °C
• Fully calibrated, linearized, and temperature compensated digital output
• I2C Interface with communication speeds up to 1MHz and two user selectable addresses
• Very fast start-up and measurement time

Specifications:

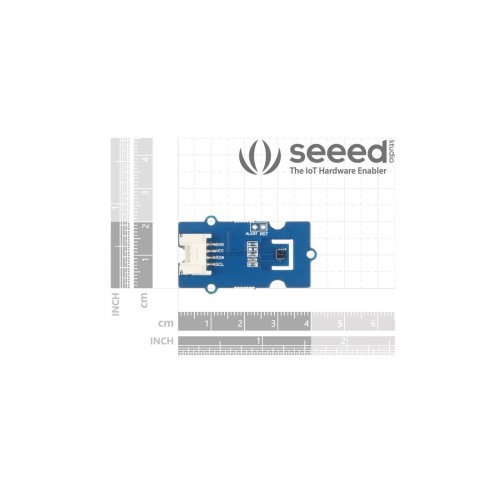

• Dimensions: 20mm x40mm x6mm
• Weight: G.W 3.1g
• Battery: Exclude
• Operating Voltage: 3.3V / 5V
• Specified Temperature Range: -40°C to +125°C
• Temperature Resolution: 0.01°C
• Temperature Accuracy Tolerance: ±0.1 °C
• Specified Humidity Range: 0%RH to +100%RH
• Humidity Resolution: 0.01%RH
• Humidity Accuracy Tolerance: ±1.5 %RH
• Interface: I2C

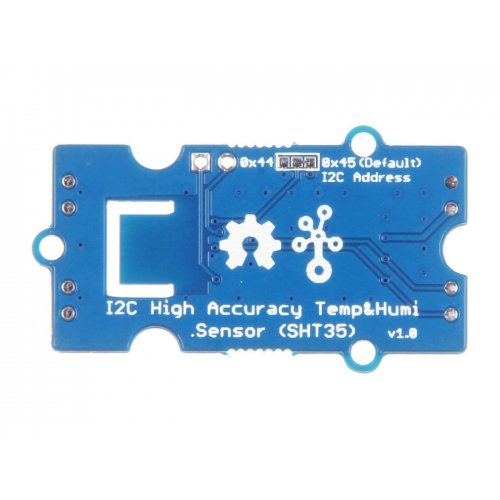

• I2C Address: 0x45(default) / 0x44(optional)

Applications:

• Industrial Freezers and Refrigerators
• Food Processing
• Personal Computers and Servers
• PC Peripherals
• Consumer Electronics
• Handheld/Portable Devices

Documents:

• Getting Started
• Grove - I2C High Accuracy Temp&Humi Sensor(SHT35) Eagle Files
• Seeed SHT35 Library
• Datasheet SHT3x-DIS

Package Includes:

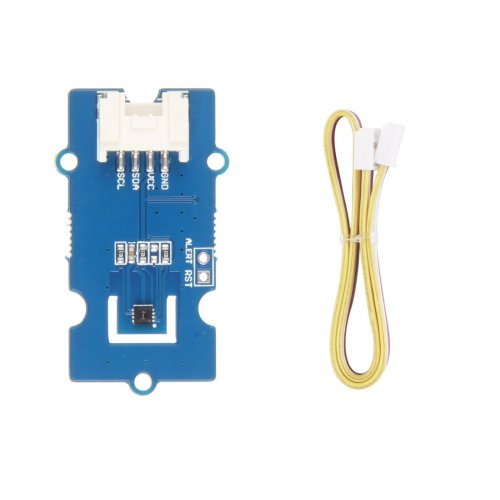

• 1 x Grove - I2C High Accuracy Temp&Humi Sensor(SHT35)
• 1 x Grove Cable
