As shown in the figure below, when the height changes in centimeter-level, the barometer reading inside the mobile phone has almost no change, and the output of the Grove DSP310 changes significantly.

What is called "high precision"? That is high precision!!!

We can't wait to introduce you to this marvelous Barometer Sensor! With 0.06 PaRMS (or 0.01m) pressure data resolution, ± 0.002 hPa (or ±0.02 m) pressure sensor precision and ± 0.06 hPa (or ±0.5 m) relative accuracy, it's probably one of the best barometric pressure sensors, incredibly, it only costs $ 5.9!

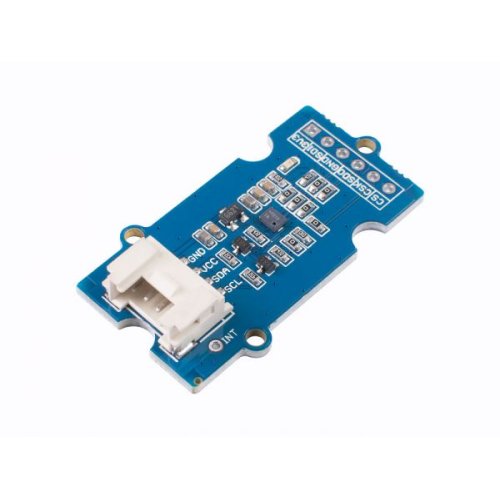

The Grove - High Precision Barometric Pressure Sensor is based on Infineon latest DPS310. The DPS310 is a miniaturized Digital Barometric Air Pressure Sensor with high accuracy and low current consumption, capable of measuring both pressure and temperature. The pressure measurement range of this sensor is 300 -1200 hPa, and the temperature measurement range is -40-85 ° C. Therefore you can use it to measure the air pressure, altitude, temperature, and build your own Arduino barometer.

This sensor is not only highly accurate but also extremely easy to use. You can flexibly choose the onboard Grove IIC interface or 6-pin SPI interface. When it comes to Grove IIC port, you can just plug it into the Seeeduino or Arduino+baseshiled, no wiring, no soldering required, and works for both 3.3V/5V system. All in all, it's a time and money saving high precision Arduino barometric pressure sensor solution, don't miss it.

What is Grove？

We have developed more than 400 Grove modules, covering a wide range of applications that can fulfil various needs. Click to explore the Grove Sensor family and get started to Grove your Idea. For all Grove users (especially beginners), we provide you with guidance PDF documents. Please download and read through Preface - Getting Started and Introduction to Grove before your use of the product.

Features:

High pressure precision: ± 0.002 hPa (or ±0.02 m)
High pressure accuracy: ± 0.06 hPa (or ±0.5 m)-Relative; ± 1 hPa (or ±8 m)-Absolute
Wide range: Pressure: 300 –1200 hPa; Temperature: -40 – 85 °C.
Low power consumption: 1.7 µA for Pressure Measurement, 1.5uA for Temperature measurement @1Hz sampling rate, Standby: 0.5 µA.
Grove unified socket: The sensor ensures "Plug and Play" and could be versatile for various applications

Specifications:

BMP280 vs. BME280 vs. DPS310

We've already released the Grove-BMP280 and Grove-BME 280 barometric pressure sensors, let us show you how powerful Grove-DPS310 is through the comparison of the table below.

iTEM	Grove-BMP280	Grove-BME280	Grove-DPS310
Pressure Range	300 ~ 1100 hPa	300 ~ 1100 hPa	300 ~ 1200 hPa
Temperature Range	-40 ~ 85 ℃	-40 ~ 85 ℃	-40 ~ 85 °C.
Pressure Precision	-	-	± 0.002 hPa (or ±0.02 m)
Pressure Accuracy	± 1 hPa (or ±8 m)	± 1 hPa (or ±8 m)	± 1 hPa (or ±8 m)
(Absolute)	± 1 hPa (or ±8 m)	± 1 hPa (or ±8 m)	± 1 hPa (or ±8 m)
Pressure Accuracy	± 0.12 hPa	± 0.12 hPa	± 0.06 hPa (or ±0.5 m)
(Relative)	± 0.12 hPa	± 0.12 hPa	± 0.06 hPa (or ±0.5 m)
Pressure Resolution	0.18 Pa	0.18 Pa	0.06 Pa
Humidity	-	0 ~ 100%	-
Communication	I2C/SPI	I2C/SPI	I2C/SPI
Price	$8.9	$17.0	$5.9

Application:

Indoor Navigation (floor detection e.g. in shopping malls and parking garages)
Health and Sports (accurate elevation gain and vertical speed)
Outdoor Navigation (GPS start-up time and accuracy improvement, dead-reckoning e.g. in tunnels)
Weather Station('Micro-weather' and local forecasts)
Drones (flight stability and height control

ECCN/HTS:

HSCODE 9026900090

USHSCODE 9026104000

UPC

EUHSCODE 9013101000

COO CHINA

CE 1

EU DoC 1

RoHS 1

UK DoC 1
