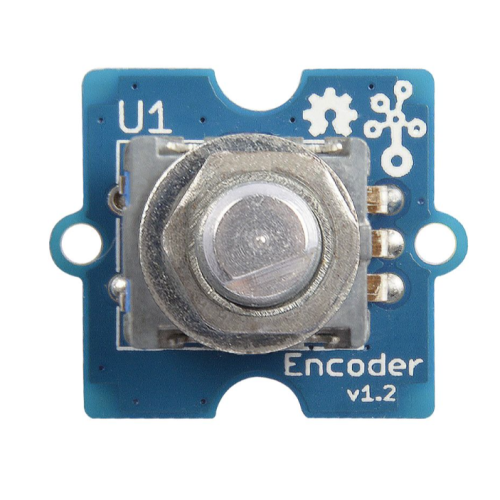

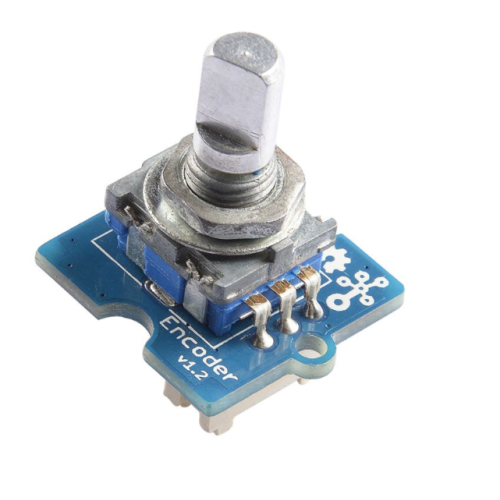

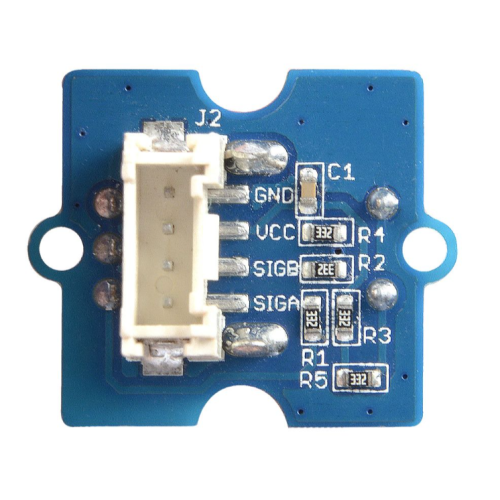

This module is an incremental rotary encoder. It encodes the rotation signal from the axis and output the signal by electronic pulse. The Grove – Encoder is one of the Grove series and has a standard Grove interface.

When you need to add a rotary knob to your project, for example a volume knob for a speaker, a selection panel or a digital input, this will be your first choice.

Note:

It is able to generate another signal when it’s being pressed down. However due to the limitation of the number of Grove signal cable, the module is made without output of this signal.

Features:

  • Incremental encoder
  • Grove Interface.
  • 360 degree rotary

Specifications:

  • Voltage: 4.5V~5.5V
  • Current: 10mA~30mA
  • Dimension: 20*20mm

Technical details:

  • Dimensions 130mm x90mm x22mm
  • Battery Exclude

ECCN/HTS

  • HSCODE 8543709990
  • USHSCODE 8471490000
  • UPC 841454108436
  • EUHSCODE 8543709099
  • COO CHINA
  • EU DoC 1
  • RoHS 1
  • UK DoC 1

Documentation:

Package Includes:

  • 1 x Grove - Encoder

Write a review

Please login or register to review

Grove - Encoder

  • Brand: Seeed Studio
  • Product Code:NR-Seeed-Grove-Encoder
  • Reward Points:4
  • Availability:Out Of Stock
  • रo 493.00

  • Price in reward points:493

  • 86 or more रo 427.00
