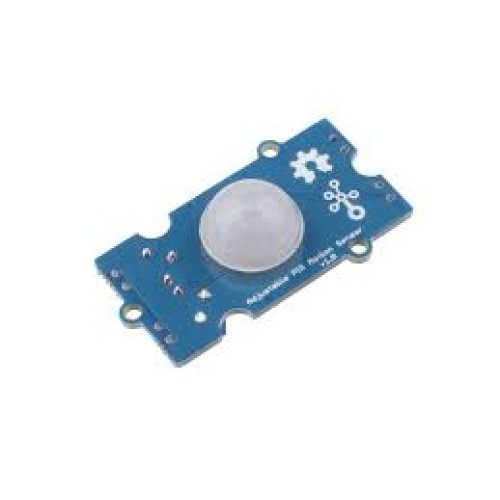

Grove - Adjustable PIR Motion Sensor is an easy to use Passive Infrared motion sensor, which can detect infrared object motion up to 3 meters. Any infrared object moves in its detecting range, the sensor outputs HIGH on its SIG pin. And you can adjust the SIG HIGH time up to 130s via the potentiometer, moreover, you can adjust the detection range via the other potentiometer.
Features:
- Built-in filter, high immunity to RFI
- Output time, detection distance range adjustable
- Low voltage, low power consumption
- Grove compatible interface, plug & play
What is PIR Sensor？
A passive infrared sensor is an electronic sensor that measures infrared light radiating from objects in its field of view. They are most often used in PIR-based motion detectors. PIR sensors are commonly used in security alarms and automatic lighting applications.
Typical Applications:
- PIR motion detection
- Intruder detection
- Occupancy detection
- Motion sensor lights
- Security system
- Automatic control etc.
Documents:
Package Includes:
-
1 x Grove - Adjustable PIR Motion Sensor1 x Grove Cable
Grove - Adjustable PIR Motion Sensor
- Brand: Seeed Studio
- Product Code:Seeed-Grove-Adjustable-PIR-Sensor
- Reward Points:7
- Availability:In Stock
-
रo 704.00
- Price in reward points:704
-
- 85 or more रo 588.00
