The GPS Antenna Kit for reTerminal DM is a reliable choice for GPS, BD, and GLONASS applications. Its compact size and optimized performance make it suitable for a wide range of navigation and positioning systems. With its RHCP polarization and impressive gain characteristics, it ensures accurate and stable signal reception for reTerminal DM even in challenging environments.

Features:

  • GPS Antenna compatible for reTerminal DM
  • Multiple navigation system applications supported:
    • BD: BeiDou Navigation System
    • GPS: Global Positioning System
    • GLONASS: GLONASS Navigation System
  • Enhanced Frequency Range:
    • BD: 1561±2MHz
    • GPS: 1575.42MHz±2MHz
    • GLONASS: 1602MHz±5MHz

Specifications:

  • Electrical characteristics
  • Parameter:Value
  • Antenna model:3540A
  • Dimensions:35mm x 35mm x 4mm
  • Frequency Range:BD: 1561±2MHz

                                          GPS: 1575.42MHz±2MHz

                                          GLONASS: 1602MHz±5MHz

  • V.S.W.R:2.0 MAX
  • Bandwidth@10dB: BD: 5MHz

                                           GPS: 5MHz MIN

                                          GLONASS: 10MHz MIN

  • Passive Gain:BD: 5.0 dB typ @ 70x70mm ground plane

                                   GPS: 5.0 dB typ @ 70x70mm ground plane

                                    GLONASS: 5.0 dB typ @ 70x70mm ground plane

  • Active Gain:BD: 22±3dB typ @ 2000mm RG174 line

                                GPS: 23±3dB typ @ 2000mm RG174 line

                                GLONASS: 22±3dB typ @ 2000mm RG174 line

  • LNA Gain:  BD: 22±3dB typ @ 2000mm RG174 line

                                 GPS: 22±3dB typ @ 2000mm RG174 line

                                 GLONASS: 22±3dB typ @ 2000mm RG174 line

  • Impedance:50Ω
  • Polarization:RHCP
  • DC Voltage:3.3±0.3V
  • DC Current:12±2mA(@3.0V)

Material

  • Part Name:SPEC
  • Antenna:Dielectric Ceramics
  • Shielding:Tinplate
  • PCB:FR4
  • Sheathing:ABS (black)

                            Dimensions: 50.8mm×50.8mm×16.5mm

  • RF Cable :RG174

                            Length: 2000mm

  • RF Connector:SMA MALE
  • Magnet:Nd2FeB magnet
  • Working Temperature:-40℃~+85℃
  • Relative Humidity:10%~95% RH
  • Storage Temperature:-55℃~+100℃
  • Vibration:Sine sweep @1.5mmAM 10~55Hz each Axis

Applications:

  • Wireless communication systems in industrial automation
  • Wireless data transmission for smart agriculture
  • Connection for remote monitoring and control systems
  • Wireless networking for smart homes and buildings
  • Wireless monitoring in environmental monitoring systems
  • Wireless connectivity for IoT devices in various industries.

How to connect with reTerminal DM

As you can see below: this antenna should be installed on the 4G module on the reTerminal DM.


Hardware Overview:


ECCN/HTS

  • HSCODE 8517710000
  • USHSCODE 8517620010
  • UPC
  • EUHSCODE 8531202090
  • COO CHINA

Package Includes:

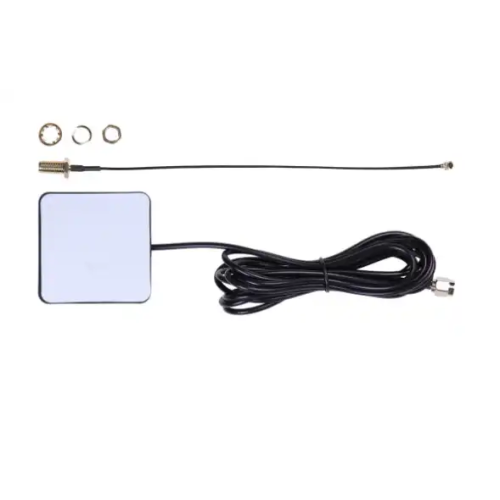

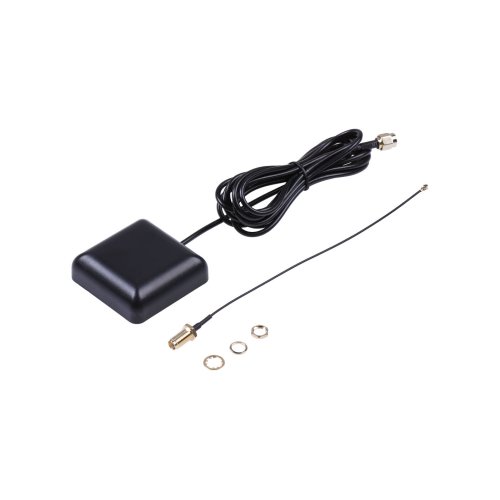

  • 1 x GPS Antenna Kit for reTerminal DM

Write a review

Please login or register to review

GPS Antenna Kit for reTerminal DM

  • Product Code:NR-Seeed-GPS-Antenna-Kit
  • Reward Points:9
  • Availability:In Stock
  • रo 933.00

  • Price in reward points:933
