With an internal temperature compensation and accurate distance detection, URM08-RS485 is a combination of temperature measurement device and distance inspection tool. The inner is fully enclosed and the external is made of metal crust, which has brought advantages such as waterproof, dustproof and corrosion resistance… It is applicable to detections of liquid level, levels, and barrier applications. As a high standard sensor, it guarantees smaller blind zone and larger inspection range. On the premise of stable output data, it shows better measurement capabilities in the market of temperature sensors and distance detection sensors.

Specifications:

Operating Voltage: DC 6.0 ~ 12.0V
Operating Current: 250mA
Effective Range: 35 ~ 550 cm
Distance Resolution: 1cm
Temperature Resolution: 0.1°C
Temperature Error: ± 1 ℃
Measurement Period: 70ms
Operating Temperature Range: -10 ~ 70 ℃
Distance Error: ±1%
Operating Humidity Range: RH<75%
Acoustic Frequency: 38 ~ 42KHz
Direction Angle: 60 °
Protection Degree: IP65
Communication Interface: RS485

Documents:

Warranty: 90 days

Warranty will not apply if Product fails or is damaged after delivery to you due to accident, abuse or misuse.

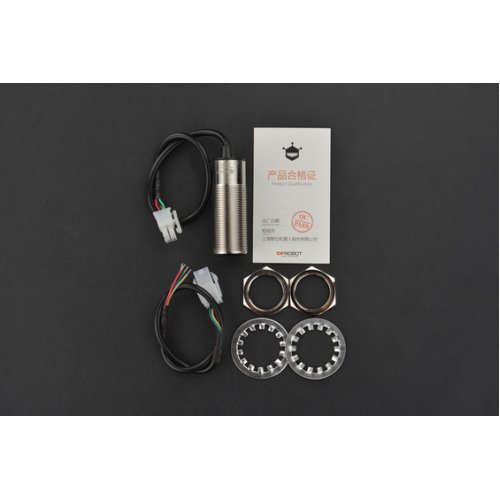

Package Includes:

1 x URM08-RS485 U ltrasonic Ranging Sensor
2 x Screw Nuts
2 x Metal Pads
1 x Adaptor Wire

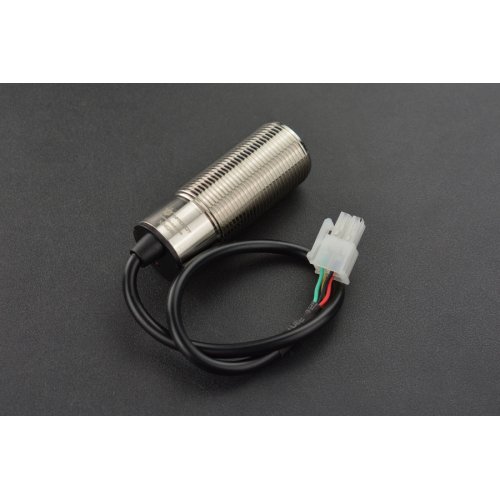

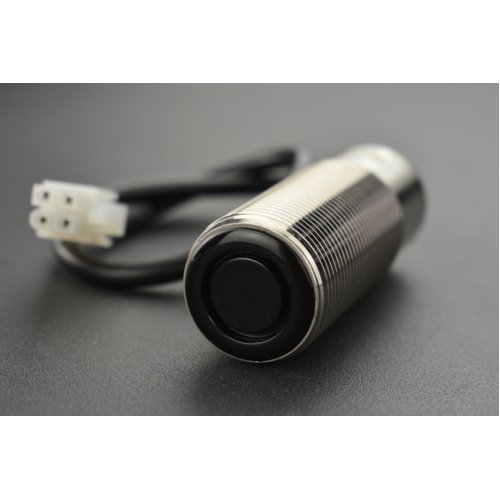

RS485 Ultrasonic Ranging Sensor (35~550cm) - URM08

Brand: DFRobot
Product Code:DFR-URM08-Sensor
Reward Points:89
Availability:In Stock

रo 8,610.00
रo 7,471.00
Price in reward points:8895
2 or more रo 8,574.00
3 or more रo 8,539.00
10 or more रo 8,314.00
