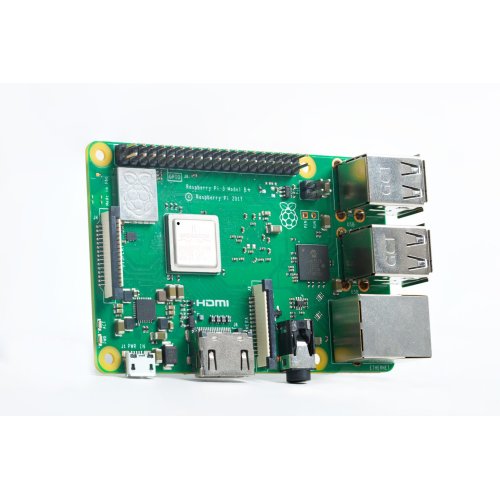

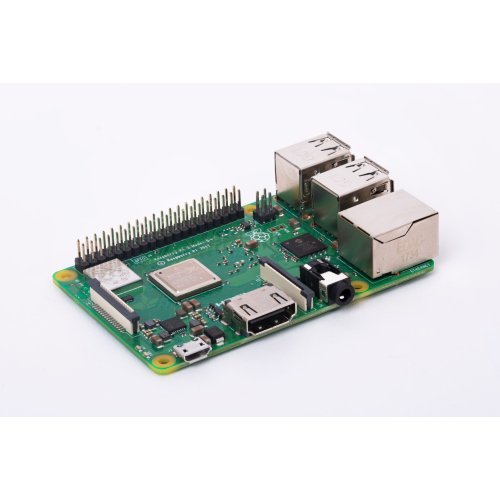

The Raspberry Pi 3 Model B+ is the latest product in the Raspberry Pi 3 range.

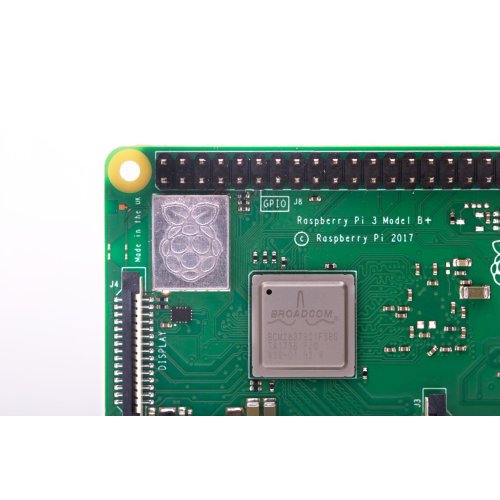

• Broadcom BCM2837B0, Cortex-A53 (ARMv8) 64-bit SoC @ 1.4GHz
• 1GB LPDDR2 SDRAM
• 2.4GHz and 5GHz IEEE 802.11.b/g/n/ac wireless LAN, Bluetooth 4.2, BLE
• Gigabit Ethernet over USB 2.0 (maximum throughput 300 Mbps)
• Extended 40-pin GPIO header
• Full-size HDMI
• 4 USB 2.0 ports
• CSI camera port for connecting a Raspberry Pi camera
• DSI display port for connecting a Raspberry Pi touchscreen display
• 4-pole stereo output and composite video port
• Micro SD port for loading your operating system and storing data
• 5V/2.5A DC power input
• Power-over-Ethernet (PoE) support (requires separate PoE HAT)

TO GET STARTED YOU’LL NEED:

A micro SD card with NOOBS (see Software & OS tab)

A high-quality 2.5A micro USB power supply, such as the official Raspberry Pi Universal Power Supply

Learn more in the hardware help guide.

CONFIGURATION GUIDE

Read basic and advanced guides to configuring your Raspberry Pi.

REMOTE ACCESS

Read about accessing your Raspberry Pi remotely.

PRODUCT BRIEF, MECHANICAL DRAWINGS, AND SCHEMATICS

Raspberry Pi 3 Model B+ product brief

Raspberry Pi 3 Model B+ mechanical drawing

Raspberry Pi 3 Model B+ schematic diagrams

HARDWARE SPECIFICATIONS

More detailed information on Raspberry Pi hardware is available.

Software installation

Beginners should start with the NOOBS (New Out Of Box Software) operating system installation manager, which gives the user a choice of operating system from the standard distributions.

SD cards with NOOBS pre-installed should be available from any of our global distributors and resellers.

Alternatively, you can download NOOBS.

Raspbian is the recommended operating system for normal use on a Raspberry Pi.

You can browse basic examples to help you get started with some of the software available in Raspbian, find more detail about the Raspbian operating system, or read information on fundamental Linux usage and commands for navigating the Raspberry Piand managing its file system and users.

Compliance

The Raspberry Pi 3 Model B+ has undergone extensive compliance testing, and meets the following European standards:

Electromagnetic Compatibility Directive (EMC) 2014/30/EU

Restriction of Hazardous Substances (RoHS) Directive 2011/65/EU

View and download global compliance certificates for Raspberry Pi products.

The dual-band wireless LAN comes with modular compliance certification. This allows the board to be designed into end product with significantly reduced wireless LAN compliance testing, improving both cost and time to market.

The Raspberry Pi 3 Model B+ has undergone extensive compliance testing, and meets the following European standards:

Electromagnetic Compatibility Directive (EMC) 2014/30/EU

Restriction of Hazardous Substances (RoHS) Directive 2011/65/EU

View and download global compliance certificates for Raspberry Pi products.

The dual-band wireless LAN comes with modular compliance certification. This allows the board to be designed into end product with significantly reduced wireless LAN compliance testing, improving both cost and time to market.
