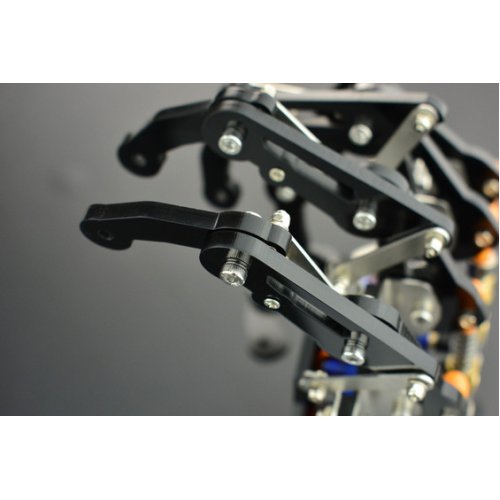

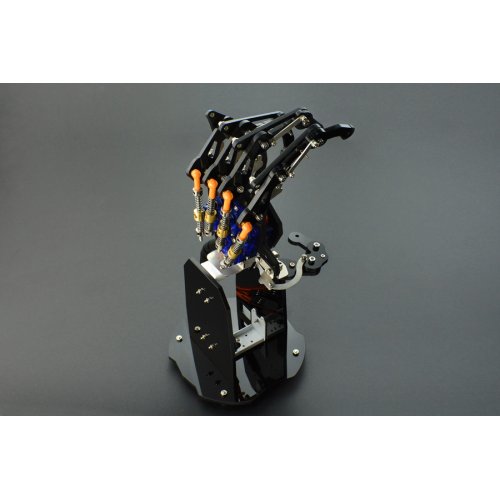

The bionic robot hand is made up of acrylic material. It consists of 5 micro metal servos, joints and one hand base. The special mechanical structure makes every finger can be controlled separately, all can move in certain range. And every finger has spring damping structure, it will protect the robotic hand from the mechanical stress effectively. With 24 channel Veyron servo driver, all actions can be controlled via PC software, supporting online debug and wireless control.
Features:
- Bionic robot hand, every finger can be controlled separately.

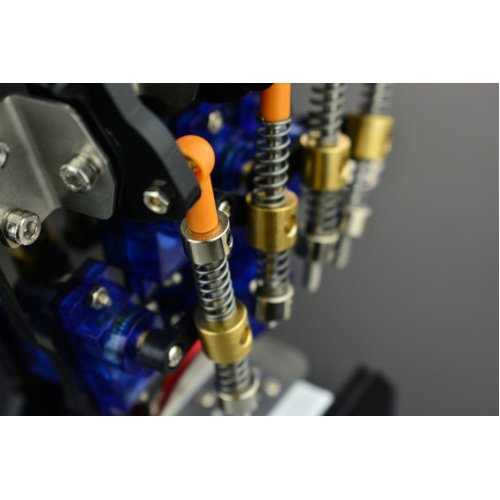

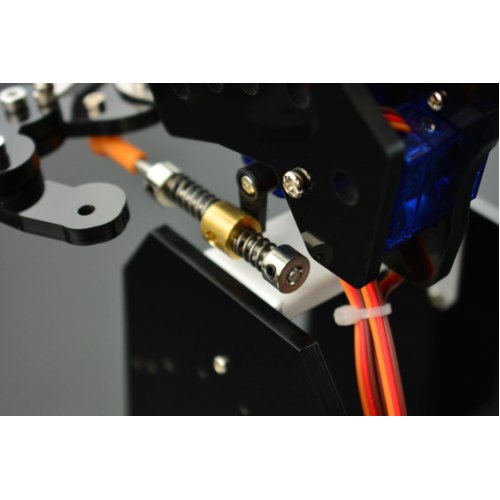

- Special spring damping structure, effective protection
- Acrylic material, the whole kit is less than 900g
- Free from manually assemble, assembled before delivery
- Compatible with Arduino and the other Microcontroller
- Recommend 5V@2A power supply.
Specifications:
- Operating Voltage: 4.8-6V
- Control Signal: 1.0ms~2.0ms (45~135°)
- Operating Current: 2A
- Payload: 500g
- Servo Torque: 2.4kg*cm (4.8v) 2.8kg*cm (6v)
- Servo Speed: 0.11 "/ 60 ° (4.8v) 0.09" / 60 ° (6.0 V)
- Operating Temperature: 0 ~ 55 ℃
- Cable: Brown <-> GND
- Red <-> VCC
- Orange<->Signal
- Servo Dimension: 23 * 12.2 * 29mm /0.91*0.48*1.14 inches
- Hand Dimension: 330 mm / 12.99 inches (Height)
- Servo net weight: 14g
- Weight: 916g (Whole kit)
Documents:
Package Includes:
- 1 x Bionic Robot Hand
Bionic Robot Hand
- Brand: DFRobot
- Product Code:DFR-Bionic-Robot-Hand
- Reward Points:226
- Availability:In Stock
- रo 21,813.00
-
रo 19,007.00
- Price in reward points:22628
-
- 2 or more रo 21,723.00
- 3 or more रo 21,150.00
- 6 or more रo 21,328.00
