- Microcontroller: ATmega328P
- Bootloader: Arduino UNO
- On-board BLE chip: TI CC2540
- Transmission range: 70m in free space
- Support Bluetooth remote update the Arduino program
- Support Bluetooth HID
- Support iBeacons
- Support AT command to config the BLE
- Support Transparent communication through Serial
- Support the master-slave machine switch
- Support USB update BLE chip program
- 14 Digital I/O ports
- 6 PWM Outputs (Pin11, Pin10, Pin9, Pin6, Pin5, Pin3)
- 8 10-bit analog input ports
- 3 I2Cs
- Two-way H-bridged Motor Driver with 2A maximum current
- 5 Buttons
- Support Male and Female Pin Header
- Integrated sockets for APC220 RF Module
- Power Supply Port: USB or DC2.1
- External Power Supply Range: 5-23V
- DC output: 5V/3.3V
- Auto-sensing/switching external power input
- Size: 94mm x 80mm(3.70"x3.15")
- 1 x Romeo BLE (Arduino Compatible Atmega 328)

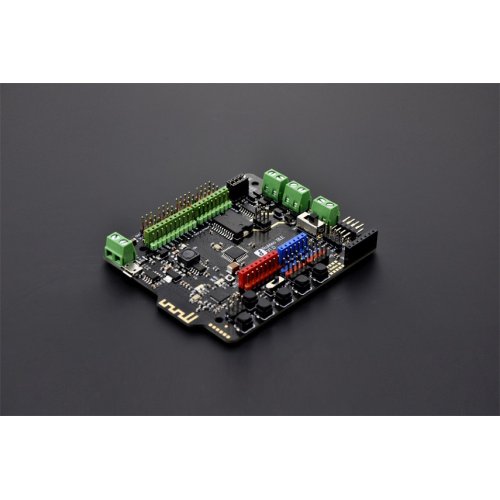

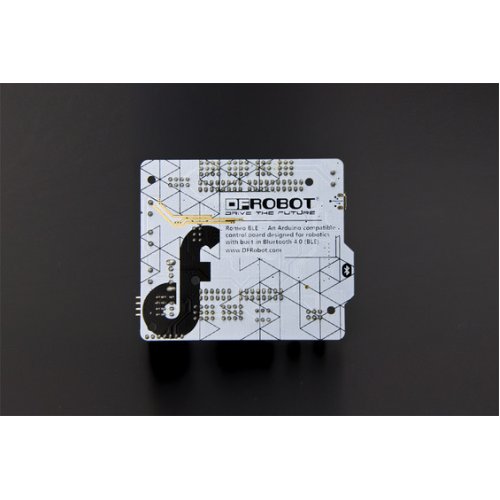

Romeo BLE - A Control Board for Robot - Arduino Compatible - Bluetooth 4.0
- Brand: DFRobot
- Product Code:DFR-Romeo-BLE
- Reward Points:39
- Availability:In Stock
- रo 3,788.00
-
रo 3,287.00
- Price in reward points:3914
-
- 5 or more रo 3,773.00
- 7 or more रo 3,757.00
- 20 or more रo 3,658.00
