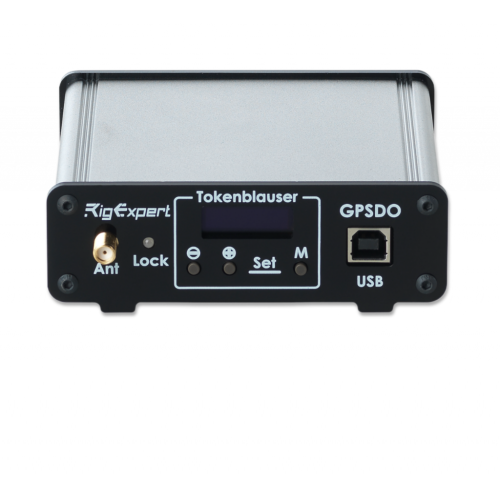

Tokenblauser GPSDO

Achieve impressive stability for frequency reading.

• Use a specialized GPS generator with ultra-accurate and ultra-stable characteristics to calibrate your gear.
• Enjoy experimenting with Aurdino-compatible GPSDO built into open-source software.
• Four outputs allow you to simultaneously use Tokenblauser GPSDO as a stable test signal and for GPS discipline of multiple devices.

Specifications:

• PLL synthesized outputs: 4
• Output frequency range: 0.16 to 200/350/710 MHz (depending on a PLL type)
• Frequency setting: With 1 Hz steps (or very fine tuning with 1 ppt steps)
• Auxiliary output: 10 MHz
• Frequency stability: 0.001 ppm or better
• Signal levels: 3.3V CMOS logic
• Output connector: BNC
• GNSS antenna type: External, active, 3.3V
• GNSS constellations: GPS, Galileo
• Dimensions: 100mm x 100mm x 25mm (PCB)
•               105mm x 105mm x 35mm (enclosure)
• Accessories inside the box: 12V power adapter (EU or US)
• GPS active antenna
• USB cable
• User’s manual

Getting the most out of your radio has never been Easier

• Four independent PLL-synthesized outputs
• Stand-alone or OEM applications
• Frequency control: from the LCD front panel or
• via USB connection to a PC
• User interface: 0.91” monochrome OLED; three
• front panel buttons
• Four memory profiles
• Connecting external OCXO, GNSS receiver
• No programming skills are required
• Source code and schematics are available for
• deeper modifications

Package Includes:

• 1 x 12V power adapter (EU or US)
• 1 x GPS active antenna
• 1 x USB cable
• 1 x User’s manual
