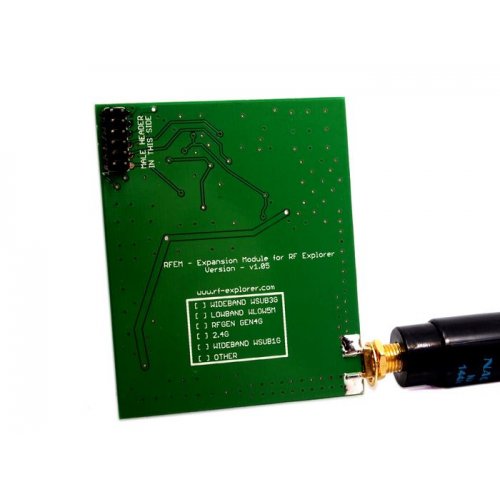

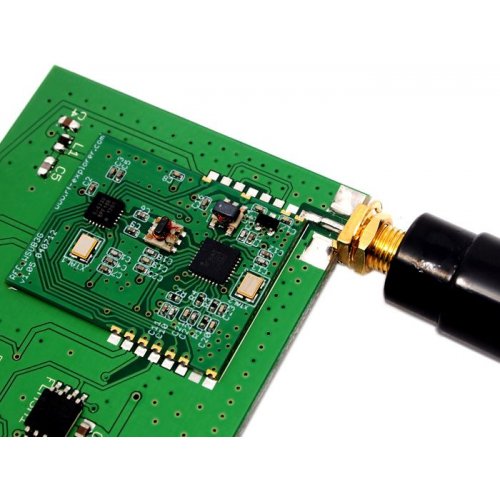

RFEMWSUB3G is an Expansion Module for RF Explorer. It can be plugged in your RF Explorer unit to extend the coverage to 15-2700 MHz (0.015-2.7GHz) continuous frequency band.

It gets attached internally to the RF Explorer main board and exhibits a second antenna connector to cover the new band.

Features:

  • Easy to plug in your RF Explorer unit, compatible with all models. Optionally, you may want to order a fully assembled RF Explorer 3G Combo including a WSUB1G base model and a RFEMWSUB3G expansion module.

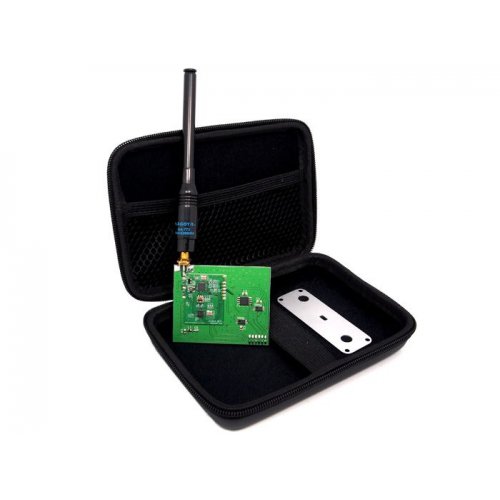

  • Includes a transport EVA carry case for RF Explorer
  • Extend band coverage to any frequency starting at 15MHz and going up to 2.7GHz. This include very interesting frequency areas such as 2m HAM radio, all VHF and UHF, FM radio, GPS, WiFi and WiMax, Bluetooth, etc.

Specifications:

  • Frequency band coverage: 15-2700 MHz
  • Standard SMA 50 ohms connector
  • Amplitude resolution: 0.5dB
  • Dynamic range: -110dBm to -10dBm
  • Absolute Max input power: +30dBm
  • Average noise floor level (typical): -100dBm
  • 50 ohms wideband dual band telescopic 144/430MHz antenna included
  • Frequency stability and accuracy (typical): +-10ppm
  • Amplitude stability and accuracy (typical): +-6dBm
  • Frequency Span: 100MHz
  • Frequency resolution: 1Khz
  • Resolution bandwidth (RBW): automatic 3KHz to 600KHz
  • Expansion RAM: 64KB
  • Expansion ROM: 2MB
  • Weight: G.W 124g
  • Battery: Exclude

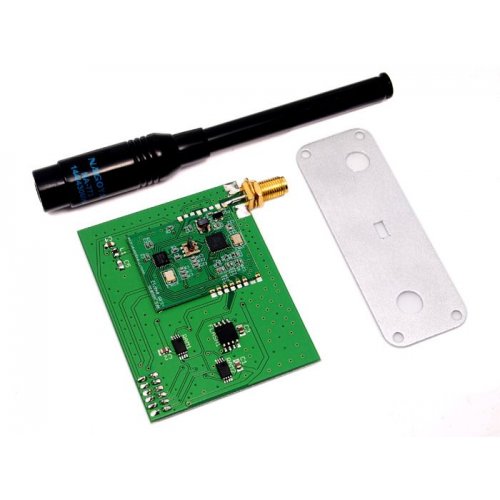

Package Includes:

  • 1 x RFEM WSUB3G Module
  • 1 x SMA 50 ohms connector
  • 1 x Antenna

Write a review

Please login or register to review

RF Explorer RFEMWSUB3G Module

  • Brand: RF Explorer
  • Product Code:NR-RFE-RFEMWSUB3G-Module
  • Reward Points:111
  • Availability:In Stock
  • रo 11,145.00

  • Price in reward points:11145

  • 220 or more रo 10,100.00
