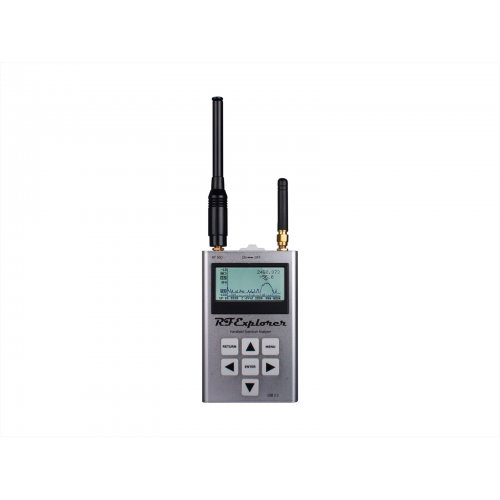

RF Explorer is a handheld digital spectrum analyzer, a very affordable tool for work in all popular frequency bands. It is based on a highly integrated frequency synthesizer and double-balanced mixer which offers high performance, compact size, low consumption and low cost.

It has been designed to be used equally well indoor and outdoor, and can be connected to a PC for extra functionality using standard mini-USB 2.0 connector.

This model includes a 6G baseline unit plus an RFEMWSUB3G Expansion Module conveniently assembled and tested. It comes with two SMA connectors and three antennas: a nice dual band telescopic 144/430 MHz wideband telescopic antenna for all Sub-GHz frequencies, a rubber duck 5.8 GHz and a whip helical for 2.4 GHz band. Additional, specific band antennas may be needed to cover efficiently some of the frequencies supported.

The combination of these two models offer coverage for most used communication frequency range used in modern communication technologies including WiFi, Bluetooth, Wireless Audio and Video, LTE, GSM, GPRS, Satellite, CATV, DTV, etc.

Compliance:

  • All RF Explorer models are complaint with FCC as well as CE regulations.
  • All RF Explorer Wideband models have been certified under EN/IEC61236 and EN/IEC61000.
  • All RF Explorer models are RoHS compliant

Note: this unit does not include RF Generator functionality, only Spectrum Analyzer functionality is available. For signal generator and tracking please consider RF Explorer Signal Generator model RFE6GEN.

Features:

  • Pocket size and lightweight
  • Solid aluminum metal case
  • Includes a transport EVA carry case for RF Explorer
  • Spectrum Analyzer mode with Peak Max and Hold, Normal, Overwrite, and Averaging modes
  • High capacity Lipo for 16hs+ of continuous run, rechargeable by USB

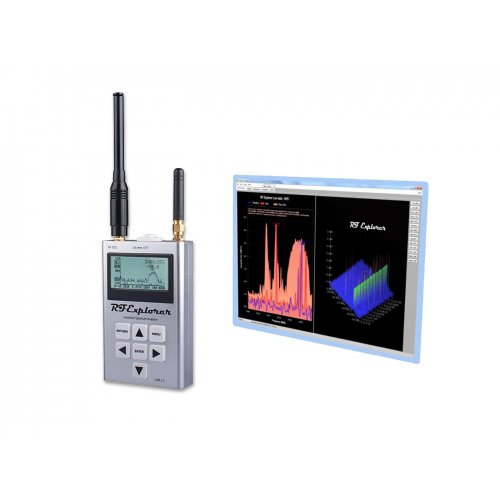

  • Windows PC client Open Source
  • Wideband coverage to all popular RF frequencies, starting at 15 MHz and going up to 2.7 GHz, as well as 4.85-6.1 GHz. This includes very interesting frequency areas such as 2m HAM radio, all VHF and UHF, FM radio, GPS, WiFi and WiMax, Bluetooth, etc.

Specifications:

  • Dimensions: 113 mm x 0 mm x 0 mm
  • Weight: G.W 387 g
  • Battery: Lithium Cells / Batteries contained in equipment UN3481 - PI967
  • Frequency band: 15-2700 MHz and 4850-6100MHz
  • Frequency span
  • Left SMA port (6G): 2-600 Mhz
  • Right SMA port (WSUB3G): 112 KHz - 600 MHz
  • 2 standard SMA 50 ohms Spectrum Analyzer connectors
  • Left SMA port (6G): 4850-6100 MHz
  • Right SMA port (WSUB3G): 15-2700 MHz
  • Amplitude resolution: 0.5 dBm
  • Dynamic range
  • Left SMA port (6G): -105 dBm to -15 dBm
  • Right SMA port (WSUB3G) -110 dBm to -10 dBm
  • Absolute Max input power
  • Left SMA port (6G): +25 dBm
  • Right SMA port (WSUB3G): +30 dBm
  • Average noise level (typical): -105 dBm
  • Frequency stability and accuracy (typical)
  • Left SMA port (6G) +-0.5 ppm
  • Right SMA port (WSUB3G) +-10 ppm
  • Amplitude stability and accuracy (typical)
  • Left SMA port (6G): +-3 dBm
  • Right SMA port (WSUB3G): +-6 dBm
  • Frequency resolution: 1 Khz
  • Resolution bandwidth (RBW)
  • Left SMA port (6G): automatic 58 Khz to 812 Khz
  • Right SMA port (WSUB3G): automatic 3 Khz to 600 Khz
  • Graphics LCD: 128 x 64 pixels, great visibility outdoors
  • PC Windows client: supports Windows XP/Vista/Win7 both 32 and 64bits
  • Back light: for great indoor visibility

Documents:

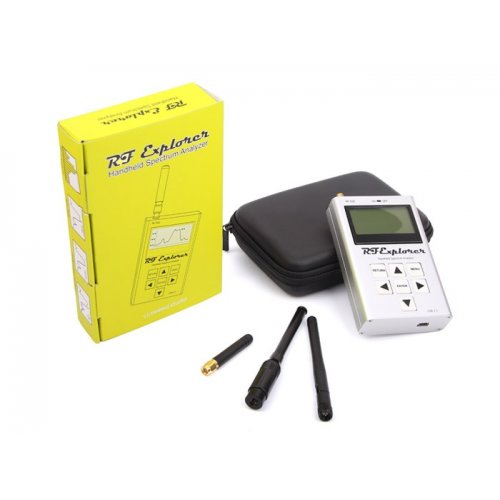

Package Includes:

  • 1 x RF Explorer 6G Combo
  • 1 x Rubber duck 5.8 GHz antenna
  • 1 x Nagoya NA773 wideband telescopic antenna
  • 1 x 2.4 GHz band antenna
  • 1 x EVA case

Write a review

Please login or register to review

RF Explorer 6G Combo Spectrum Analyzer

  • Brand: RF Explorer
  • Product Code:RFE-6G-Spectrum-Analyzer
  • Reward Points:302
  • Availability:Out Of Stock
  • रo 30,208.00

  • Price in reward points:30208

  • 100 or more रo 30,046.00
  • 250 or more रo 29,212.00
