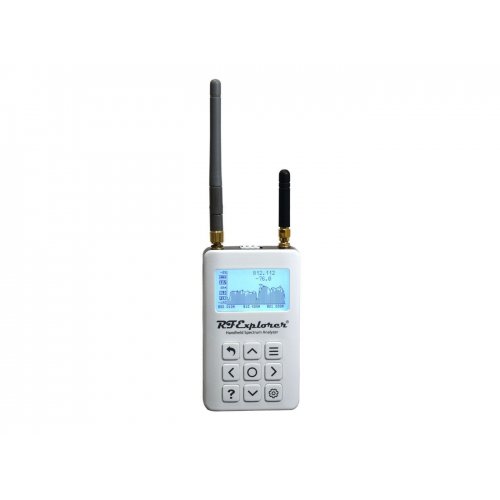

RF Explorer 4G COMBO+ is a powerful Spectrum Analyzer, covering the full range starting at 50 KHz up to 4 GHz with no gaps or limitations. A future firmware license feature will allow it to expand the range up to 5.1 GHz.

When compared to the standard 3G Combo model, the new SLIM design offers an outstanding robust enclosure with a strong metallic body and shiny varnished paint, additional frequency coverage, and power sensitivity, a more convenient USB connector on the side and larger internal battery capacity.

An RF Explorer Spectrum Analyzer is a special device designed to detect very sensitive signal radiation and identify signal interference, tune antenna setups, detect signal leakage and find hidden bugs, among many other applications.

The combination of small size, great sensitivity, and robust design makes it the ideal instrument to carry on for indoor and outdoor measurements.

When connected to a computer, it can be controlled by free software available for download with stunning high-resolution graphics, data storage, and reply features.

For introductory details and quick start guide, please visit www.rf-explorer.com/start

For best handling work at the desk, we recommend the RF Explorer Holder SLIM

For best results detecting near field signal sources or interferences, we recommend the RF Explorer Near Field Antenna Kit

Features:

  • Internal LNA amplifier and selectable attenuator for additional power range handling.
  • Low-frequency support from 50 KHz covering LF, MF, HF, VHF, and UHF
  • High-frequency support covering all ranges up to 4 GHz with no gaps.
  • New HELP and SET buttons to improve user interface and PRESET configuration selection with 2-clicks
  • Ideal choice for all usable HAM bands.
  • Pocket size and lightweight
  • Solid metal case
  • Spectrum Analyzer mode with Peak Max and Hold, Normal, Overwrite and Averaging modes
  • High capacity internal Lithium battery for 10hs+ of continuous run, rechargeable by USB
  • Multi-platform Windows/Linux/MacOS Open Source software and API libraries

Specifications:

  • Frequency band:
  • Left connector: 0.05 – 960 MHz
  • Right connector: 240 – 4000 MHz
  • Frequency span in a single sweep: 2 – 960 MHz
  • Internal selectable LNA 25 dB gain
  • Internal selectable Attenuators 30 dB and 60 dB
  • Wifi Analyzer for the 2.4 GHz band
  • Graphics LCD 128 x 64 pixels, great visibility outdoors
  • Back light for great visibility indoor
  • Internal Lithium-Ion 1800 mA/h rechargeable battery
  • Standard SMA 50 ohms connectors
  • Wide band 144/433 MHz dual band telescopic antenna included
  • UHF 400-900 MHz rubber duck articulated antenna included
  • 2.4 GHz whip antenna included
  • Amplitude resolution: 0.5 dBm
  • Dynamic range: -125 dBm to 10 dBm
  • Absolute Max input power: +30 dBm
  • Average noise level (typical LNA): -125 dBm
  • Frequency stability and accuracy (typical): +-1.0 ppm
  • Amplitude stability and accuracy (typical): +-3 dBm
  • Frequency resolution: 1 Khz
  • Resolution bandwidth (RBW): automatic 2.6 Khz to 600 Khz
  • Support included for Windows, Linux and MacOS X

Applications:

  • RF Spectrum Analysis for FM, TV and DTV, ISM, RFID, GSM, 4G/5G, IoT, GPS, Bluetooth
  • WiFi analysis and fine-tuning
  • Interference hunting
  • EMC pre-testing
  • RF device tuning (with Signal Generator working as Tracking SNA): Check this link for more details

Documents:

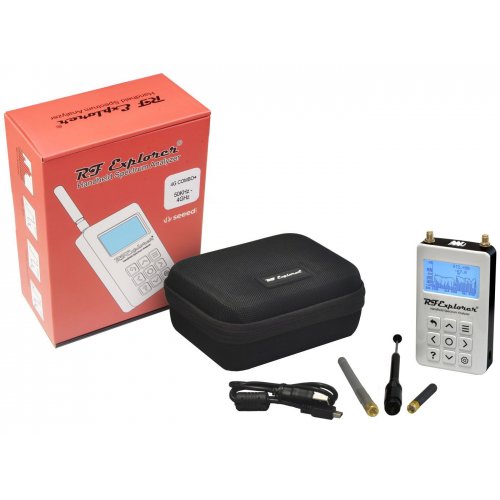

Package Includes:

  • 1 x Spectrum Analyzer
  • 1 x Mini USB cable
  • 1 x Dual band 144/430 MHz Telescopic antenna
  • 1 x UHF 400-900 Mhz antenna
  • 1 x 2.4 GHz whip antenna
  • 1 x EVA case

Write a review

Please login or register to review

RF Explorer 4G Combo PLUS - Slim

  • Brand: RF Explorer
  • Product Code:RFE-4G-Slim
  • Reward Points:326
  • Availability:In Stock
  • रo 32,062.00

  • Price in reward points:32583

  • 2 or more रo 31,801.00
  • 5 or more रo 31,540.00
