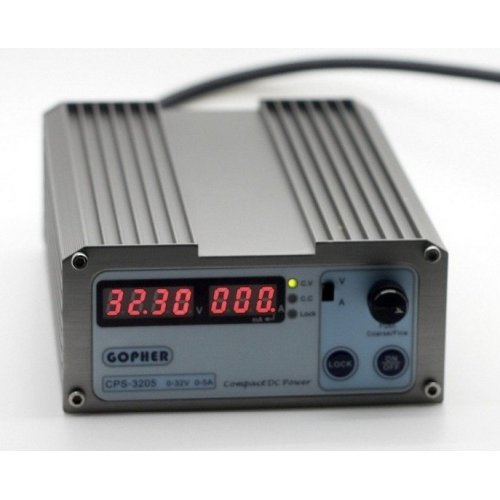

0-32V 0-5A Compact Digital DC Power Supply

Features:

• Input voltage : 220 V ± 10%, 50Hz ± 2Hz
• Output Voltage : 30 V
• Output Current : 5A
• Line regulation : ≤ 0.01% + 3mV
• Load regulation : ≤ 0.01% + 3mV
• Ripple and noise : ≤ 1 mV r m s
• Protection : Constant current and Short-circuit protection
• Indication accuracy : ≤ 0.5% + 1 digit.
• Operating Environment : 0 ~ + 40 ºC, Relative humidity  : < 90%
• Dimensions : 120 X 150 X 270 mm
• Weight : Appx. 5 kg
• Accessories : Power cord & Instruction manual

Specifications:

• Operation Voltage Range       198 – 264Vac
• Operation Frequency Range     45 – 65HZ
• Output Voltage Range          0 – 32V
• Output Current Range          0 – 5A
• Efficiency (220Vac/full load)      ≥87%
• Full Load Input Current(220Vac)    ≤1.4A
• No Load Input Current(220Vac)      ≤80mA
• Volt Meter Accuracy                ≤ 0.3% + 1 digits
• Current Meter Accuracy             ≤ 0.3% + 2 digit

Constant Voltage

• Load Regulation (0-100%)           ≤ 30mV
• Line Regulation(198-264Vac)        ≤ 10mV
• Ripple & Noise (Peak-Peak)         ≤ 30mV
• Ripple & Noise (r.m.s)             ≤ 3mV
• Set Accuracy                       ≤ 0.3% + 10mV
• Transient Response Time (50%-100% rated Load)   ≤ 1.0ms

Constant Current

• Load Regulation(90%-10% Rated Voltage)   ≤ 50mA
• Line Regulation (198-264Vac)             ≤ 20mA
• Ripple & Noise (Peak-Peak)               ≤ 30mAp-p
• Set Accuracy                             ≤ 0.3% + 20mA
• Size(width× height× depth)             120×55×168mm
• Net Weight                               0.85KG

Package include:

• 1 x DC Power Supply
• 1 x AC Power cable
• 1 x User Manual
