Blend is an integrated development board, we have "blend"ed Arduino with Bluetooth 4.0 Low Energy (aka BLE or Bluetooth Smart) into a single board. It is targeted for makers to develop low power Internet-Of-Things (IoT) projects quickly and easily.

Blend is 100% compatible with sketches and Shields that work with Arduino Leonardo. The micro-controller unit (MCU) is Atmel ATmega32U4 and the BLE chip is Nordic nRF8001. Blend runs as BLE peripheral role only, it allows BLE central role devices to establish connection with.



Current supported BLE central devices:

iOS 7
  • iPhone 4s
  • iPhone 5 (all models)
  • iPod touch 5
  • iPad 3/4/mini/Air
Android 4.3 or above (4.4 recommended for stability) with Bluetooth 4.0 hardware support

Windows Phone 8.1

  • Nokia Lumia 630
Windows 8.1 with built-in Bluetooth 4.0 or USB dongle

Mac OSX 10.9.2 with built-in Bluetooth 4.0 or USB dongle

Linux with BlueZ 5.1 with built-in Bluetooth 4.0 or USB dongle

Specification:

Microcontroller Atmel ATmega32U4
Wireless Chip Nordic nRF8001
Operating Voltage 3.3V or 5V
Input Voltage
  • 5V (USB)
  • 6.5-12V (DC input or VIN)
Clock Speed 16MHz
Connectivity
  • Bluetooth 4.0 Low Energy
  • micro-USB
  • Serial (TX/RX)
  • I2C
  • SPI
Flash Memory 32KB (of which 4 KB used by bootloader)
SRAM 2.5KB
EEPROM 1KB
Dimensions 73 x 54 x 12mm (120 x 73 x 25mm with packaging)
Weight 19g (37g with packaging)

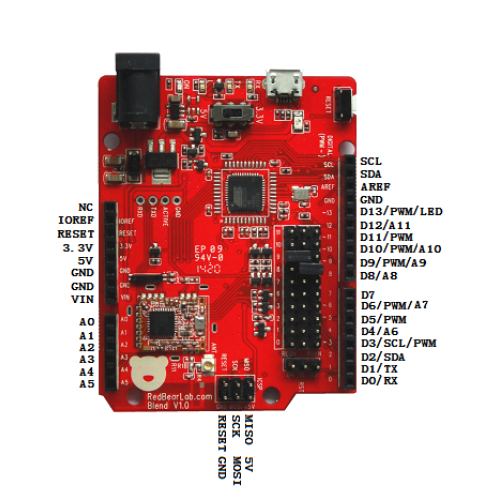

I/O Pins 20

Operate at 3.3V or 5V

According to the Atmega32U4 specification, the MCU can run at either [email protected] or 16MHz@5V. Normally, you should set the voltage selection switch to 5V to run the board at 16MHz. However if you need to connect to shields or external components, such as sensors or MCU, which accept 3.3V only, you should change the operating voltage to 3.3V using the voltage selection switch.

Note that while Blend is running at 3.3V, the Atmega32U4 will still run at 16MHz which is outside Atmel's specification, the CPU is overclocked (we have not seen any issue so far).

Support

For questions about Nordic Bluetooth low energy SDK for Arduino, please visit Nordic Developer Zone

All other questions regarding Blend, please visit the Blend Forum



Write a review

Please login or register to review

Blend - BLE+Arduino Development Board

  • Brand: RedBearLab
  • Product Code:RBL-Blend
  • Reward Points:30
  • Availability:In Stock
  • रo 2,985.00
  • रo 2,395.00

  • Price in reward points:2985
