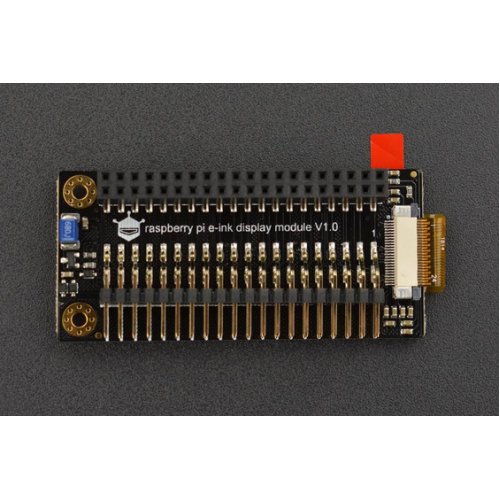

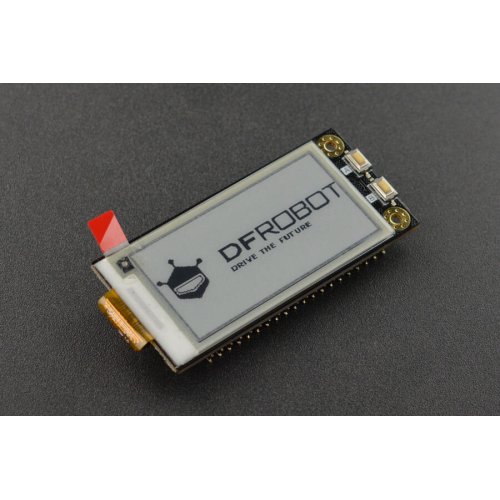

This Raspberry Pi e-ink display module comes with a 2.13” screen with a resolution of 250×122, adopting SPI interface to communicate with Raspberry Pi. It leads out the pins on Raspberry Pi, so there would be no conflicts if you need to use the e-ink display and Raspberry Pi’s pins at the same time. The display supports custom font. There are two patch touch switches on the module for expanding more applications. This e-ink display features small size, compact layout, plug and play, and low power consumption. It can provide clear display even in sunlight. When powered off, the e-ink display will continue to display the last screen. Since it will take a long time for the display to refresh fully, we don’t recommend using the product in the application that needs frequent refreshing to display data.

SPECIFICATION:

• Operating Voltage: 3.3V
• Model: GDE0213B1
• Resolution: 250 x 122
• Interface Type: SPI
• Color: black, white
• Refresh way: fully or partially refresh
• Refresh time: 3s for full refresh, 680ms for partial refresh
• Refresh Power: 26.4mW
• Connector: 2.54mm 2*20pin

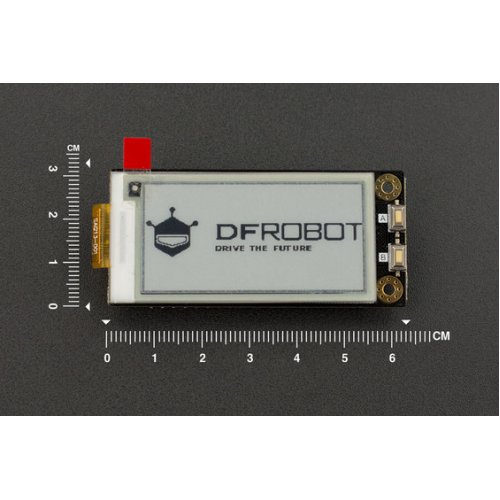

• Dimension: 66.5 x 31 mm/2.62x1.22”

• Pin-spacing: 2.54mm
• Board Size: 66.5mm × 31 mm
• Thickness: 1.6mm

Package Contains:

1 x Raspberry Pi e-ink Display Module
