1.4GHz 64-bit quad-core processor, dual-band wireless LAN, Bluetooth 4.2/BLE in the same mechanical format as the Raspberry Pi 1 Model A+

Pint-sized power! The Raspberry Pi 3 Model A+ packs all of the processing and wireless power of the 3 B+ into a significantly smaller package.

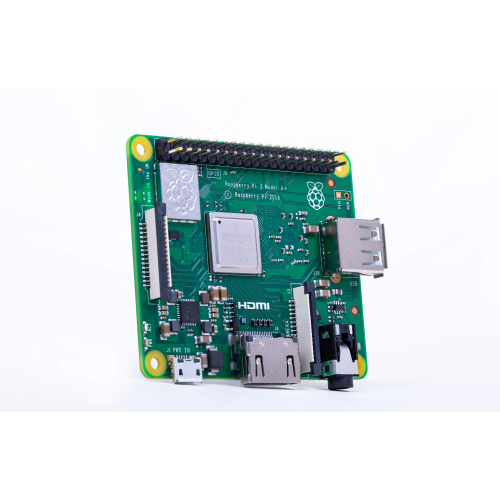

The All new Upgraded 2018s Raspberry Pi 3 Model A+ now comes with the Broadcom BCM2837B0, Cortex-A53 (ARMv8) 64-bit SoC 1.4GHz quad-core processor, dual-band wireless LAN, Bluetooth 4.2/BLE in the same mechanical format as the Raspberry Pi 1 Model A+.

With Extended 40-pin GPIO header and Full-size HDMI it is the perfect board for the minimalist Pi fan. This low-cost Pi uses the same processor as the model B+ but does away with the Ethernet jack and three of the USB Ports. This makes it lower power, less expensive and much lighter & smaller!

It’s still compatible with all Pi operating systems and software and has the exact same 40 pin GPIO connector and camera/display sockets, so any HATs or Pi Plates or other things that plug into the model B+ will work just the same.

It also has the same HDMI, sound/composite connector and micro-USB connector for power

Unlike the Raspberry Model B+, there’s only one USB port and no ethernet jack but it’s also significantly smaller at 65mm x 56mm if you don’t include overhang from the connectors.

Don’t forget, you’ll need a USB power supply with micro USB cable, and a microSD card with a Raspberry Pi OS on it

Getting Started

To get started you'll need:

• A micro SD card with Raspberry Pi OS installed (see Software & OS tab)
• A high-quality 2.5A micro USB power supply, such as the official Raspberry Pi Universal Power Supply

For a step-by-step guide to getting your Pi up and running, check out our online Getting started guide.

Configuration guide

• Read basic and advanced guides to configuring your Raspberry Pi.

Remote access

• Read about accessing your Raspberry Pi remotely.

Specifications:

The Raspberry Pi 3 Model A+ extends the Raspberry Pi 3 range into the A+ board format.

• Broadcom BCM2837B0, Cortex-A53 (ARMv8) 64-bit SoC @ 1.4GHz

• 512MB LPDDR2 SDRAM
• 2.4GHz and 5GHz IEEE 802.11.b/g/n/ac wireless LAN, Bluetooth 4.2/BLE
• Extended 40-pin GPIO header
• Full-size HDMI
• Single USB 2.0 ports
• CSI camera port for connecting a Raspberry Pi Camera Module
• DSI display port for connecting a Raspberry Pi Touch Display
• 4-pole stereo output and composite video port
• Micro SD port for loading your operating system and storing data
• 5V/2.5A DC power input

Documentations:

• Raspberry Pi 3 Model A+ product brief
• Raspberry Pi 3 Model A+ mechanical drawing
• Raspberry Pi 3 Model A+ schematic diagrams
• More detailed information on Raspberry Pi hardware


Package Includes:

• 1 x Raspberry Pi 3 Model A+
