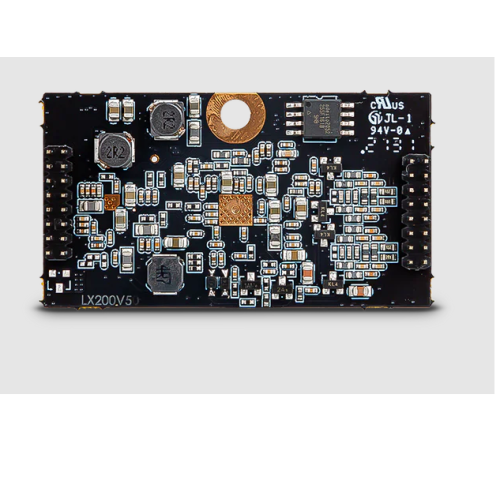

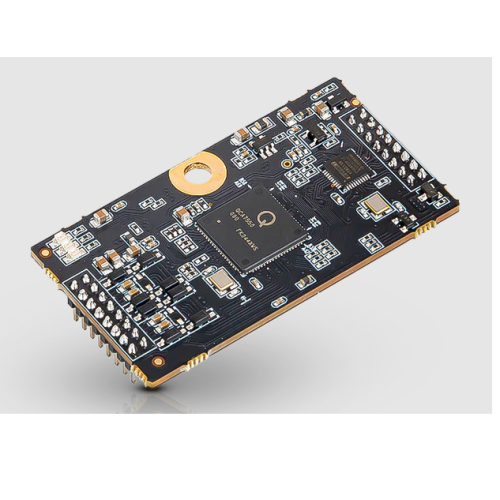

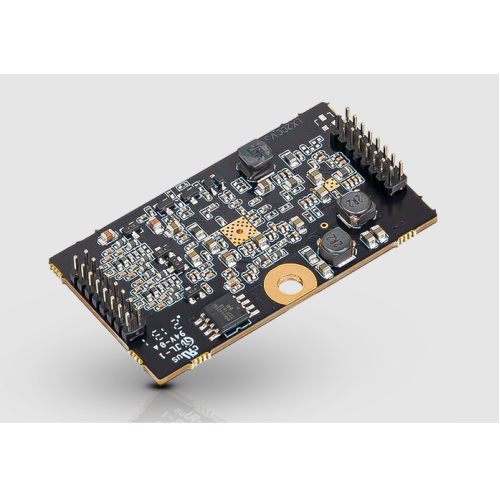

WisLink PLC LX200V50 is a Power Line Communication (PLC) module based on Qualcomm QCA7550 SoC. It is designed to bridge multi-stream Ethernet content from a power line network to an Ethernet 802.3 network. The PLC-specific MAC manages network access and service flows to maximize the quality of service over the power line network.

WisLink LX200V50 has a maximum transmission rate of 1000Mbps and can be used directly without user configuration. It supports 128-bit AES encryption.

Key Features:

Max. data rate: 1000Mbps
A maximum of 8 modules can interface with each other
128-bit AES Encryption of Data
Works below CATV signal interference range
HomePlug AV2 compliant:

AV2 30 MHz and 67 MHz MIMO profiles
AV2 30 MHz and 67 MHz SISO profiles
Power Save Mode
IEEE 1901, IEEE 1905.1, and HomePlug AV compliant
Internal DDR2 16 MB memory
HomePlug AV2 compliant PHY:
Supports OFDM 4096/1024/256/64/16/8-QAM, QPSK, BPSK, ROBO, HS-ROBO, Mini-ROBO
Supports Line-Neutral/Line-Ground 2x2 MIMO with beam-forming
128-bit AES Link Encryption with key management
Windowed OFDM with noise mitigation based on patented line synchronization techniques improves data integrity in noisy conditions
Dynamic channel adaptation and channel estimation
Advanced Turbo Code Forward Error Correction (FEC)
Turbo Decoder Rates: 1/2, 16/21, 8/9

HomePlug AV2 Compliant MAC:

Priority-based CSMA/CA channel access schemes maximize efficiency and throughput
Integrated Quality of Service (QoS) Enhancements
Hardware Packet Classifiers for Type of Service (ToS), Class of Service (CoS), and IP Port Number
Supports IGMP managed multicast sessions
