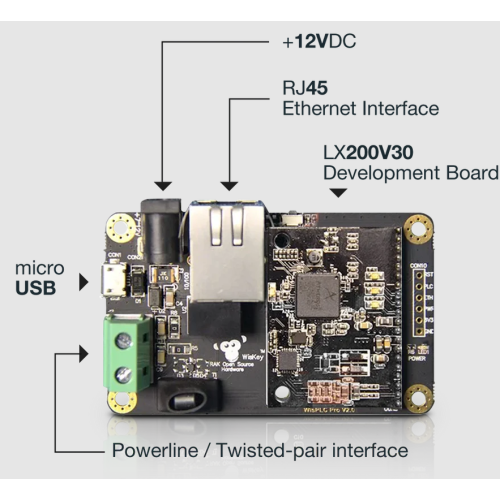

WisLink LX200V30 EVB, based on Qualcomm QCA7420 SoC, is a new type of PLC based on OFDM (Orthogonal Frequency Division Multiplexing) modulation technology of data transmission products. The maximum transmission rate of the power line can reach 500Mbps.the EVB provides standard Ethernet front-end ports and also supports a twisted pair interface.

It supports 128-bit encryption AES and operates in the 2-30 MHz band without interfering with the existing CATV signal over the coaxial cables. Faster time-to-market and flexibility of product features.

Note: The maximum data rate parameter is given for the physical layer. The speed for the data layer will be lower.

Complete documentation of this product can be found on our website documentation page.

Key Features:
  • Qualcomm QCA7420 SoC
  • Medium (Supports multiple transmission medium)
    • Power Line: Range up to 300 meters for IP access
    • Twisted Pair: Range up to 600 meters for IP access
  • Speed:  maximum physical layer data rate is 200Mbps
  • 128bit AES encryption
  • IEEE 1901 and HomePlug AV standards compliance
  • A maximum of 8 modules can interface with each other

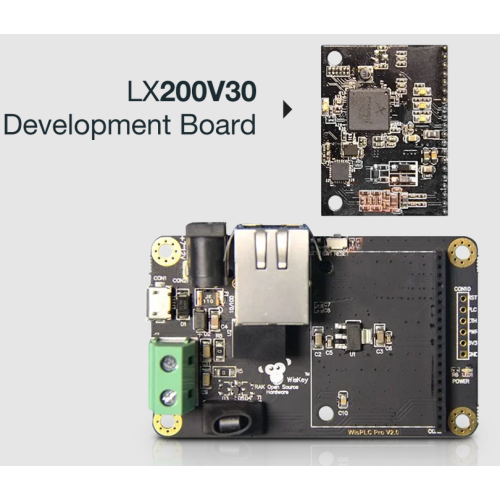

  • Modular design, easy to embedded and implement to any existing devices
  • Board Dimension: 40mm x 30mm (76mm x 46mm for the Base Board)
  • Package Size: 15cm x 9cm x 9cm

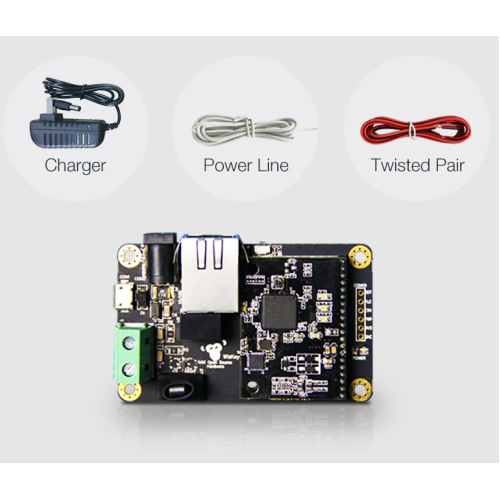

Package Includes:
  • 1 x WisLink PLC LX200V30 EVB

Write a review

Please login or register to review

WisLink PLC LX200V30 EVB

  • Brand: Rakwireless
  • Product Code:NR-RAK-WisLink-PLC-LX200V30-EVB
  • Reward Points:68
  • Availability:In Stock
  • रo 6,857.00

  • Price in reward points:6857

  • 2 or more रo 6,802.00
  • 4 or more रo 6,748.00
  • 11 or more रo 6,693.00
  • 22 or more रo 6,638.00
