Enhance your Raspberry Pi based networking solution with the option of being powered directly through your gateway's Ethernet port. No need for separate power supply! This feature is especially suitable for deployments utilizing cabled network connectivity.

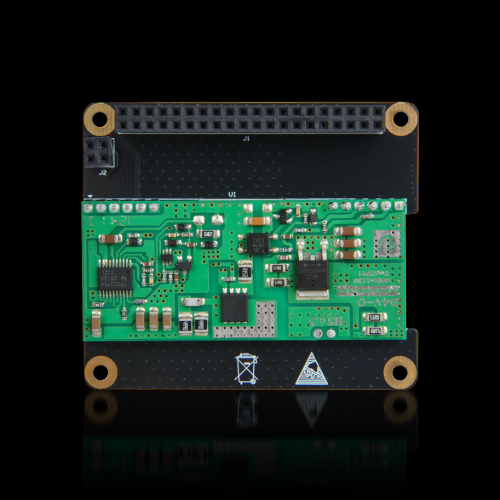

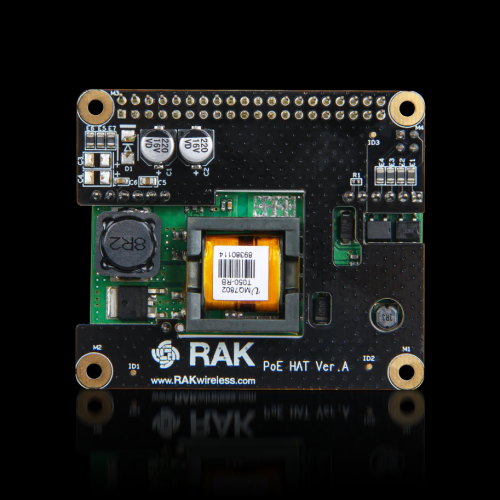

RAK9003 PoE Pi Hat is an add-on board with Raspberry PI form factor, compatible with RPi 3B+ and RPi 4, which can be plugged into a Raspberry PI directly. RAK9003 PoE Pi Hat makes it possible to power the Raspberry Pi via a standard CAT 5 Ethernet cable.

RAK9003 PoE Pi Hat is designed to be compatible with the IEEE 802.3af/at Power-over-Ethernet (PoE), it is compatible with both PoE Mode A and Mode B. RAK9003 PoE Pi Hat signature and control circuit provides the PoE AT compatibility signature and power classification required by the Power Sourcing Equipment (PSE) before applying up to 30W power to the port. RAK9003 PoE Pi Hat is compatible with Class 0 to Class 4 equipment. The high-efficiency DC/DC converter operates over a wide input voltage range and provides a regulated low ripple and low noise output. The DC/DC converter also has built-in overload and short-circuit output protection.

Features:

  • Raspberry Pi form factor with a 40pin compatible header (Pi3 B+, Pi4 compatible)
  • Conforming to the IEEE 802.3af/at (mode A & mode B), 25W Max Load.
  • It contains physical layer power negotiation circuitry, compatible with Class 0 to Class 4 equipment.
  • Wide operating voltage: 42V ~ 57V.
  • Output Current: 5V@5A
  • Output voltage ripple:
  • High Efficiency: 83% (input 48V, 5V@5A).
  • High isolation: 5KV isolation input to output.
  • Overcurrent / short-circuit
  • RoHS Compliant.
  • Operating Temperature: -40 °C ~+85 °C

Documentations:

Package Includes:

  • 1 x RAK9003 PoE Pi HAT

Write a review

Please login or register to review

WisHAT RAK9003 PoE Pi HAT

  • Brand: Rakwireless
  • Product Code:NR-RAK-RAK9003-PoE-Pi-HAT
  • Reward Points:34
  • Availability:In Stock
  • रo 3,422.00

  • Price in reward points:3422

  • 4 or more रo 3,395.00
  • 9 or more रo 3,367.00
  • 22 or more रo 3,340.00
  • 43 or more रo 3,312.00
