Note: RAK2247 Pi HAT is compatible only with the SPI version of the RAK2247 LPWAN concentrator.

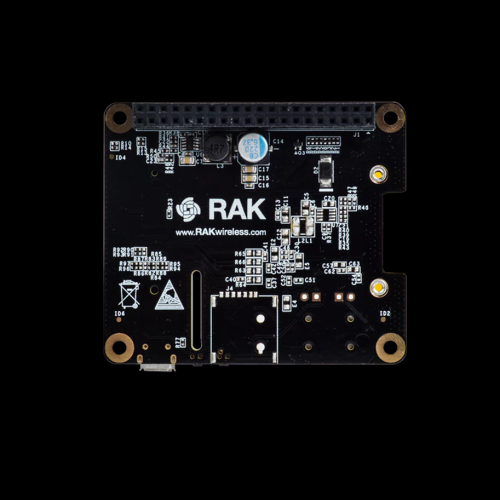

RAK2247 Pi HAT is a converter board designed to allow the RAK2247 Concentrator module to interface with a Raspberry Pi SBC (Single Board Computer). It maps the 52-pin of mPCIe RAK2247 connector to the 40- pin Raspberry Pi header. There is also a GPS on the HAT that enhances your RAK2247 with localization and timing data.

Features:

  • Pi HAT form factor fully compatible with Raspberry Pi products
  • PCIe connector onboard for connecting RAK2247 Concentrator module
  • Built-in GPS

Compatible Products:

  • RAK2247 LPWAN Gateway Concentrator Module

Specifications:

  • Product Dimension: 65 x 55 x 18 mm (±2mm)

Documentations:

Package Includes:

  • 1 x WisHAT RAK2247 Pi HAT

Write a review

Please login or register to review

WisHAT RAK2247 Pi HAT

  • Brand: Rakwireless
  • Product Code:NR-RAK-RAK2247-Pi-HAT
  • Reward Points:40
  • Availability:In Stock
  • रo 4,017.00

  • Price in reward points:4017

  • 4 or more रo 3,985.00
  • 7 or more रo 3,953.00
  • 19 or more रo 3,921.00
  • 37 or more रo 3,889.00
