The WisGate Connect Gateway is specially designed as a powerful and flexible outdoors gateway for Smart Cities and Smart Farming.

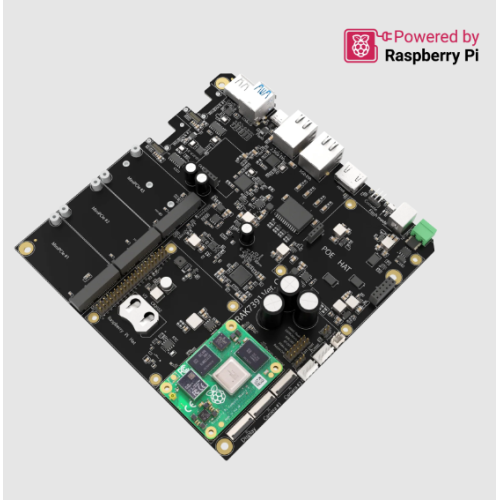

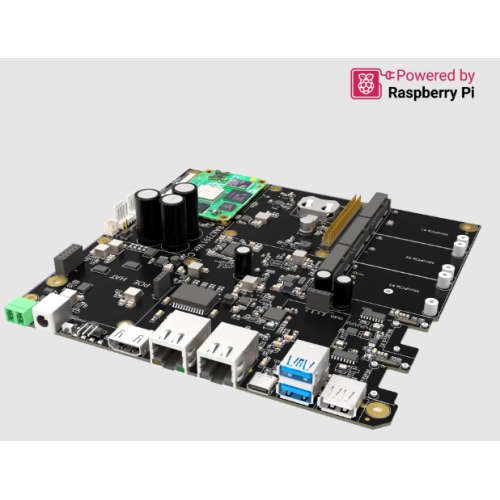

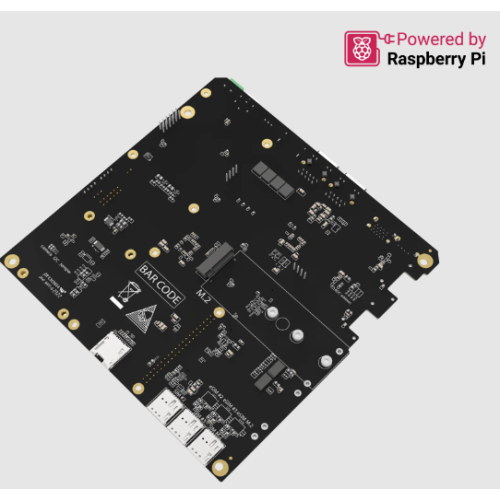

At the core of the WisGate Connect we have a RAK7391 carrier board for the the Raspberry Pi Compute Module 4 (CM4). This is a powerful ARM hardware solution capable of running different operating systems and multiple applications.

The WisGate Connect Gateway provides several LoRaWAN configurations: 8 or 16 channels sub-GHz LoRaWAN or dual band (sub-GHz + 2.4GHz) LoRaWAN and optional LTE connectivity.

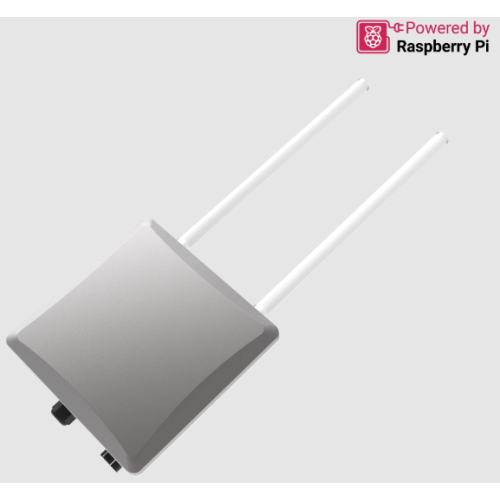

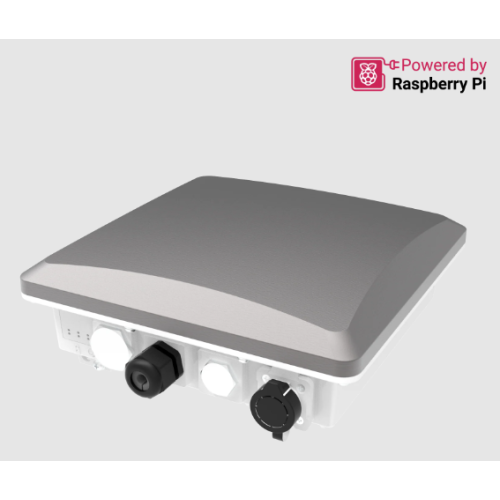

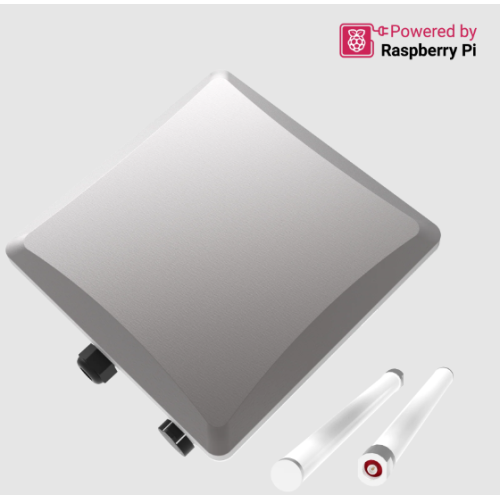

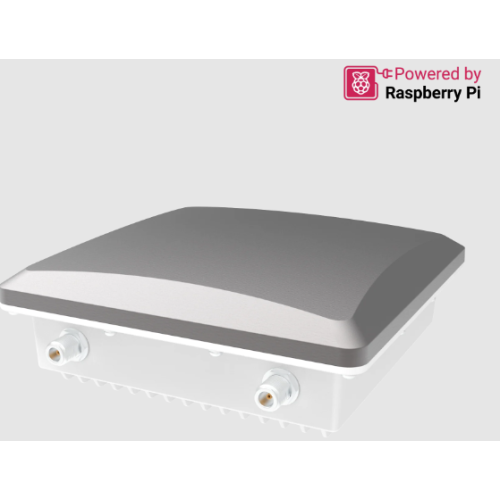

It can be powered using PoE+ (802.3at) and supports dying gasp functionality. The outdoors enclosure is rated IP67 and provides 2 type-N connectors for LoRaWAN antennas and a internal antenna panel with embedded GPS, LTE and WiFi/Bluetooth antennas.

Features:

Hardware

See hardware compatibility section below.

Accepts the complete range of CM4 modules
2x WisBlock IO connectors
3x mPCIe slots
1x M.2 B-Key interface
Flexible power supply modes such as DC terminal, Phoenix terminal and POE (optional)
HDMI 2.0 connector
1 GB Ethernet with PoE support (optional)
2.5 GB Ethernet
1x USB2.0 + 2x USB3.0
Type-C USB socket for updating the CM4
Micro SD Card socket for CM4 Lite modules
Standard fan connector, compatible with 12 V and 5 V fans (jumper cap configuration)
Output power connector (+5 V, +12 V with PoE)
MIPI DSI display FPC connector (22 pin 0.5 mm pitch cable)
2x MIPI CSI-2 camera FPC connectors (22 pin 0.5 mm pitch cable)
Raspberry Pi HAT connector
PoE support via an optional module
Debug UART port
RTC with battery socket and ability to wake up CM4
Configuration jumpers (Wi-Fi and BLE enabling/disabling, EEPROM write enable, Buzzer enabling)
IP67 aluminum + plastic outdoors enclosure
Two uFL to type-N pigtails
Antenna board for GPS, LTE, WiFi and Bluetooth
PoE+ (802.3at) support

Software:

We have prepared a custom Linux distribution for the WisGate Connect called RAKPiOS. The RAKPiOS is a fork of the Raspberry Pi OS with all the required drivers to use the device, some security changes, helper scripts and Docker included by default.

With the included rakpios-cli you can easily configure the network and deploy several IoT services from a curated list of docker containers available from the device.

Documentation

Package Includes:

RAK7391 CM4 carrier board
Set of jumpers
PoE+ injector
Set of standoffs and screws to secure the board
Set of screws for the mPCIe and M.2 slot
Outdoors enclosure with mounting bracket
Set of screws for the enclosure
2x Type-N pigtail
Type-N antennas (depending on the chosen configuration)

WisGate Connect Gateway 8-channel gateway EU868/IN865/RU864

Brand: Rakwireless
Product Code:NR-RAK-WisGate-Connect-Gateway-8-channel
Reward Points:667
Availability:In Stock

रo 65,054.00
Price in reward points:66654
2 or more रo 64,521.00

Available Options

Connector

78) Without LTE

79) LTE Cat4 (EG95-NA) for EMEA (+रo 5,518.00)

80) LTE Cat4 (EG95-NA) for North America (+रo 5,518.00)

Memory

101) 2GB RAM + 16GB EMMC + WIFI

102) 4GB RAM + 32GB EMMC + WIFI (+रo 2,904.00)

Qty

0 reviews / Write a review
