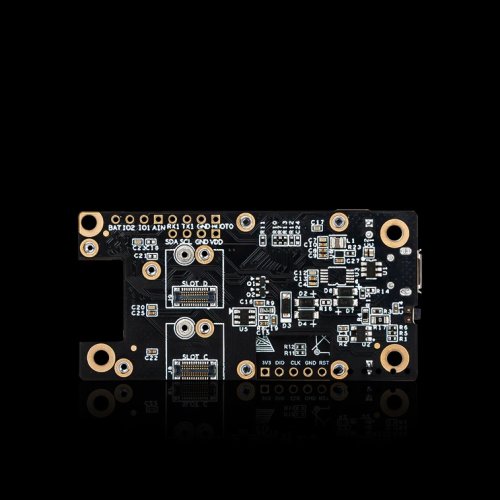

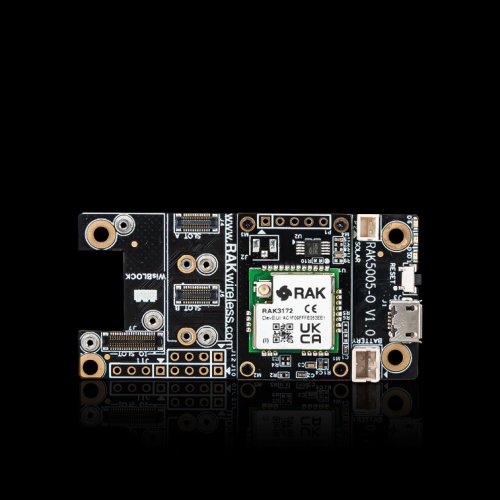

The RAK3172-E is a WisDuo Evaluation Board for RAK3172 Module that uses an STM32WLE5CC SoC chip. It is based on RAK3372 WisBlock Core PCB which is compatible to the RAK5005-O base board. It provides an easy way to access the important pins of the RAK3172 module in order to simplify development and testing. It also allows you to connect other modules to the base board slots and build complete IoT project with the integrated connectors for battery and solar panel plus the on-board charging circuit. Its firmware is based on RAKwireless Unified Interface V3 (RUI3) that allows you create different functionalities using RUI APIs.

This module complies with Class A, B & C of LoRaWAN 1.0.3 specifications. It also supports LoRa Point to Point (P2P) communication mode which helps you in implementing your own customized long-range LoRa network quickly.

Documentation:

• RAK3172 Evaluation Quick Start Guide
• RAK3172 Evaluation Board Datasheet

Package Includes:

• 1 x  RAK3372 + 1pcs RAK19007
• 1 x  Micro USB Cable
• 1 x SubG Antenna (iPEX)
• 2 x 4-pin Header
• 14 x  Dupont Lines
