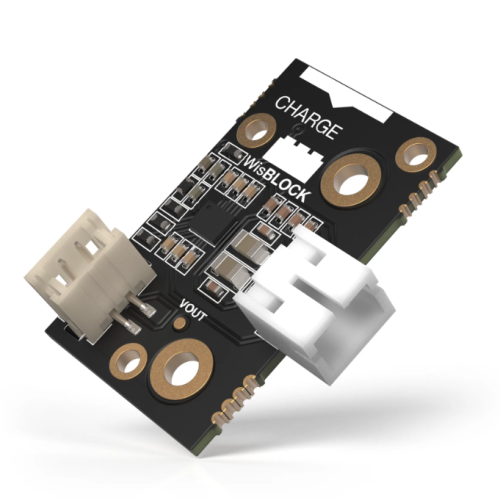

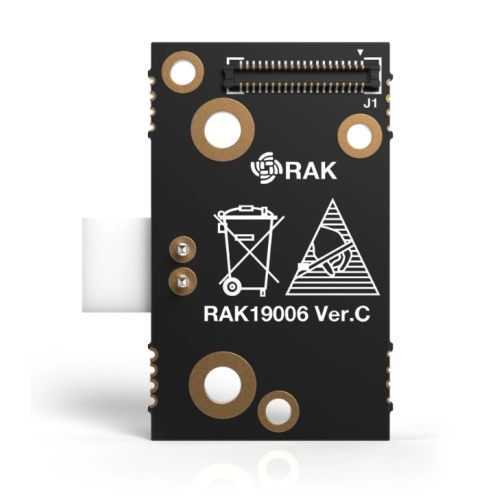

RAK19006 is a WisBlock wireless charge module based on ConvenientPower CPS3008 chip. The RAK19006 is an highly efficient, Qi-compliant, single-chip wireless power receiver and charger. It integrated the receiver and linear charger and supports up-to 5W applications.

This board can be connected to the RAK19007 IO slot or through two pogo pin connected to the RAK19007 pin headers.

Features :

• WPC 1.2.4 compliant wireless power receiver
• JEITA compatible charge
• Ultra-low leakage current without transmitter
• Wireless and wired charge
• OVP, OCP and OTP protection
• small size only 15mmx 25mm

Documents :

• RAK19006 Quick Start Guide
• Datasheet
• WisBlock Quick Start Guide
• WisBlock Source Code Repository(opens new window)
• RAK19006 3D Model(opens new window)
• 40-Pin Male Connector 3D file(opens new window)
• WisBlock Sensor Tutorial

Package Includes :

• 1 x RAK19006 WisBlock Wireless Charger Module ConvenientPower CPS3008
