The module is available in two variants:

• RAK11200 is the standard module.
• RAK11200 Voice Processing includes a license for the Cyberon Software.

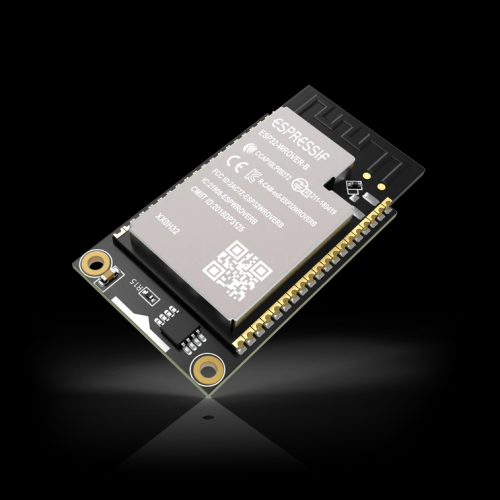

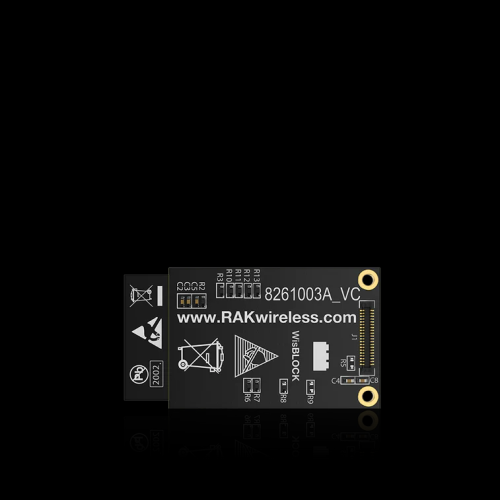

The RAK11200 is based on Espressif ESP32-WROVER 2.4Ghz Wi-Fi & Bluetooth module and part of the WisBlock Core series. It is programmable and compatible with other WisBlock modules. It also features a built-in PCB antenna.

The Cyberon version is the same as the standard version with the addition of a license to run the Cyberon Voice Processing software. Please check our Cyberon documentation.

Features:

• Two low-power Xtensa® 32-bit LX6 microprocessors
• Up to 240 MHz CPU clock
• Built-in PCB antenna
• 4 MB External SPI Flash, 520 KB RAM
• 8 MB SPI Pseudo static RAM (PSRAM)
• WiFi 802.11 b/g/n (802.11n up to 150 Mbps)
• Bluetooth v4.2 BR/EDR and BLE specification
• Rich set of peripherals: RTC, UART, I2C, SPI, SD card interface
• Low-power deep-sleep mode

Documentation:

• Datasheet
• RAK11200 Quick Start Guide
• WisBlock Quick Start Guide
• WisBlock Source Code Repository
• Arduino IDE BSP

Package Includes:

• 1 x RAK11200
• 2 x wire jumper
• 8 x pin header
