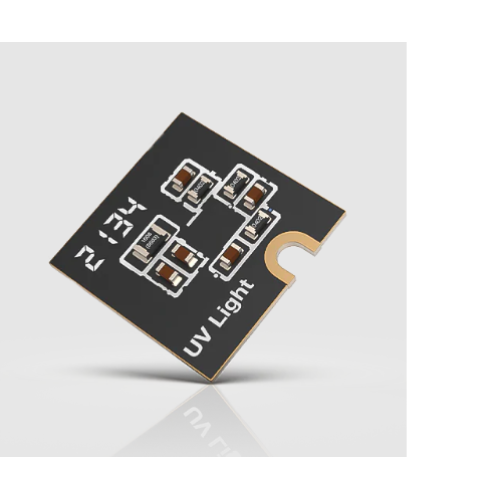

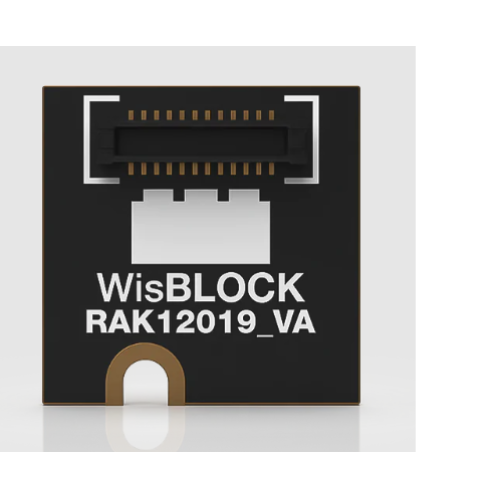

RAK12019 is a UV sensor module based on Lite On LTR-390UV-01 sensor. This sensor can measure both ambient and UV light intensities.

Use it in an greenhouse control applications to protect your plants from UV light exposure. Or build a UV level warning systems.

It can be used as well in building lightning and window shadowing applications.

Features :

  • optional Light Sensor(ALS)or ultraviolet light sensor (UVS)
  • I2C interface capable of Standard mode @100kHz or Fast mode @400kHz communication
  • Very low power consumption with sleep mode capability
  • 13 to 20 bits effective resolution
  • Wide dynamic range of 1:18,000,000 with linear response
  • Close to human eye spectral response
  • Automatic rejection for 50Hz/60Hz lighting flicker
  • Operating voltage ranges: 1.7V to 3.6V
  • Operating temperature ranges: -40 to +85 ºC
  • Built-in temperature compensation circuit
  • Programmable interrupt function for ALS , UVS with upper and lower thresholds
Documents :
Package Includes :
  • 1 x RAK12019 WisBlock UV Light Sensor Lite-On LTR-390UV-01


Write a review

Please login or register to review

RAK12019 WisBlock UV Light Sensor Lite-On LTR-390UV-01

  • Brand: Rakwireless
  • Product Code:NR-RAK-UV-Light-Sensor-Lite-On-LTR-390UV-01
  • Reward Points:6
  • Availability:In Stock
  • रo 595.00

  • Price in reward points:595

  • 25 or more रo 590.00
  • 50 or more रo 585.00
  • 125 or more रo 580.00
  • 250 or more रo 575.00
