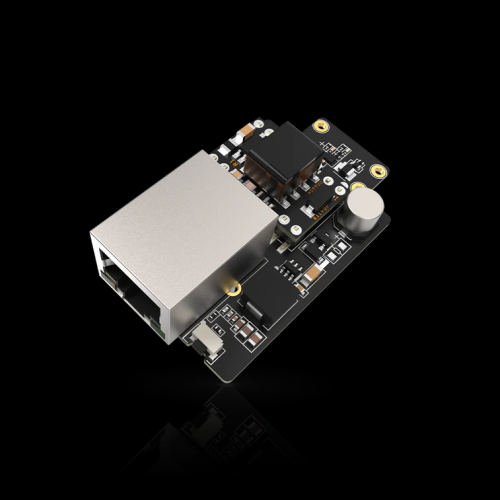

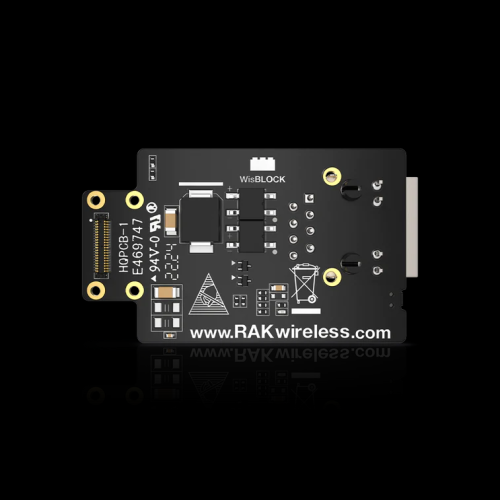

The RAK19017 power board with the Silver Ag99005MT PoE converter is the perfect solution for applications that are powered by PoE.

The RAK19017 has a connector for non-rechargeable batteries and the USB for programming and setup of the WisBlock.

Note: This module is only a POE module. It does not include an Ethernet interface. If you need POE and an Ethernet Interface, please check out our RAK13800 Ethernet Module and the RAK19018 POE adapter.

Features:

  • Flexible building block design, which enables modular function realization and expansion
  • Silver Ag99005MT PoE converter
  • Fulfills Industrial level design
  • Based on Silvertel Ag9905MT
  • Power-over-Ethernet Module
  • IEEE802 3af compliant
  • Input voltage range : 36V to 57V
  • Output voltage : 5V
  • Output power: 9W
  • Short-circuit protection and Over temperature protection
  • Compact size, the minimum size is: 30x50x1mm

Documentation:

Package Includes:

  • 1 x Wisblock RAK19017 PoE Power Slot Module

Write a review

Please login or register to review

Wisblock RAK19017 PoE Power Slot Module

  • Brand: Rakwireless
  • Product Code:NR-RAK-PoE-Power-Slot-Module
  • Reward Points:39
  • Availability:In Stock
  • रo 3,900.00

  • Price in reward points:3900

  • 4 or more रo 3,865.00
  • 8 or more रo 3,835.00
  • 19 or more रo 3,805.00
  • 38 or more रo 3,775.00
