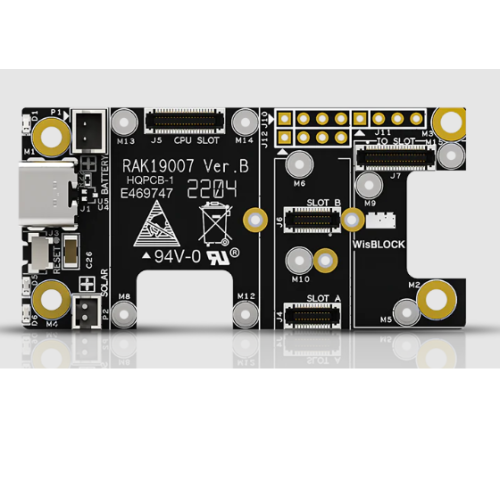

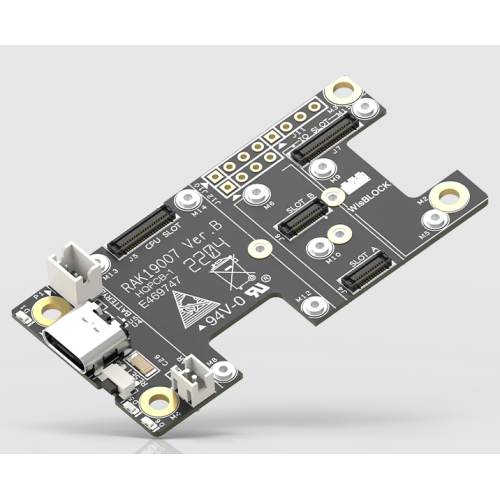

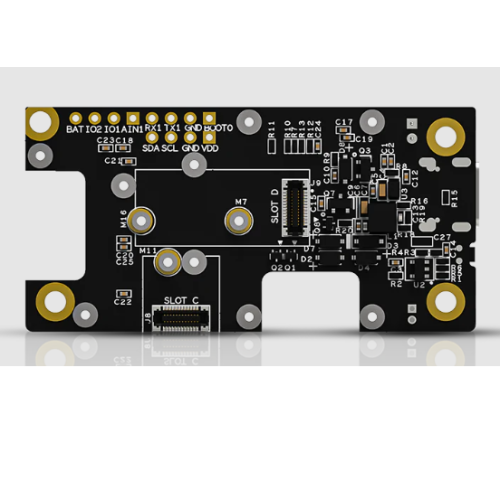

The RAK19007 is the second generation of our standard WisBlock Base Board RAK5005-O. It has several improvements: - USB type C connector - GNSS modules can be used without blocking another sensor slot - improved voltage regulator REMARK: We will continue to sell RAK5005-O until stock is used up. In the meantime we offer both modules (RAK5005-O has a minimal price difference).

Features :

  • Supports both 5 V USB and 3.7 V rechargeable battery as power supply
  • 5 V solar panel connector to recharge the battery in a remote solution
  • Power consumption control
  • RAK19007 has an electronic load switch to power the WisBlock modules. The power supply for the WisBlock modules boards can be controlled by the WisBlock Core modules application.
  • RAK19007 has a size of only 30 x 60 mm, which lets you create solutions that fit into the smallest housings.

Documents :

Package Includes :

  • 1 x RAK19007
  • 1 x USB Cable
  • 15 x M1.2*3 Screw
  • 8 x M2.5*4 Screw

Write a review

Please login or register to review

WisBlock RAK19007 Base Board 2nd Gen

  • Brand: Rakwireless
  • Product Code:RAK-WisBlock-Base-Board-2nd-Gen
  • Reward Points:15
  • Availability:In Stock
  • रo 1,486.00

  • Price in reward points:1486

  • 10 or more रo 1,474.00
  • 20 or more रo 1,463.00
  • 50 or more रo 1,451.00
  • 100 or more रo 1,439.00
