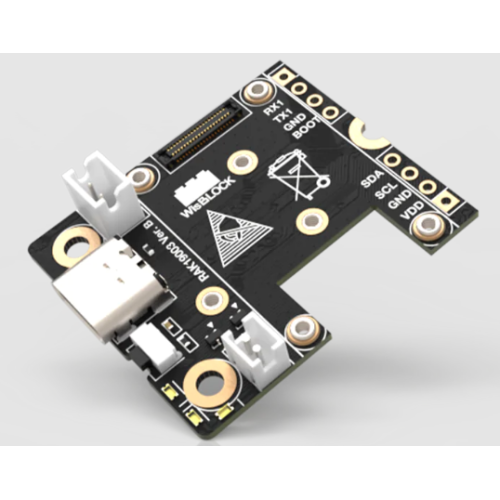

• WisBlock RAK19003 Mini Base Board

WisBlock Base Board (RAK19003) is the base block for RAK WisBlock. It is the carrier for the WisBlock Core MCU module and two WisBlock modules with 24 pin WisConnector. It enables the engineers and makers to build with low-effort prototypes, test different types of sensors, and develop the application. And because all components and modules of WisBlock are industrial rated the step from development to mass production is no problem.

WisBlock Base Board supports as standard 3 different power supplies. Depending on the application either 5V USB, 3.7V LiPo batteries, and 5V solar panels or a combination can be chosen. WisBlock Base Board enables low power consumption applications with the option to switch on and off the power supply for the WisBlock Sensor.

WisBlock Base Board has a size of only 30 x 35mm which lets you create solutions that fit into the smallest housings.

Features :
  • Easy Plug'n'Play slots for WisBlock Core MCU, small WisBlock Sensor, WisBlock Extra, small WisBlock Storage and WisBlock Power modules
  • Small form factor
  • Supports 3 different power supply sources
  • Optimized for low power consumption applications
  • I2C, UART, GPIO's an analog input accessible with solder contacts
  • 2 user-definable LED's
  • Reset button
  • USB Type C debug port
  • 1 slot for WisBlock Core MCU
  • 2 slots for modules with 24pin WisConnector

Documents :

Package Includes :

  • 1 x RAK19003
  • 1 x USB type C cable
  • 1 x set screws (kit)

Write a review

Please login or register to review

WisBlock RAK19003 Mini Base Board

  • Brand: Rakwireless
  • Product Code:NR-RAK-Mini-Base-Board
  • Reward Points:13
  • Availability:In Stock
  • रo 1,338.00

  • Price in reward points:1338

  • 10 or more रo 1,327.00
  • 20 or more रo 1,316.00
  • 55 or more रo 1,305.00
  • 110 or more रo 1,295.00
