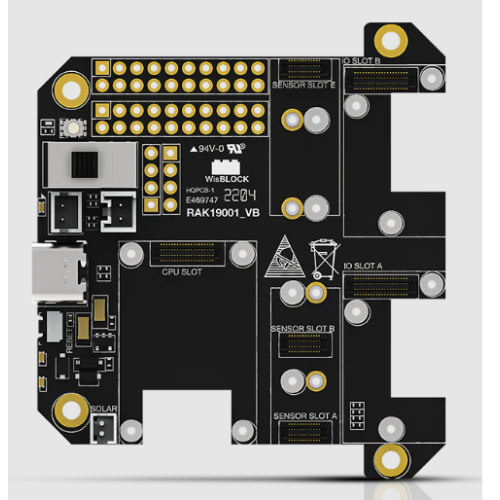

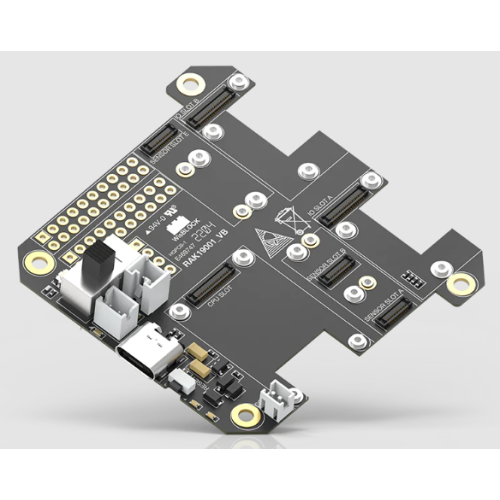

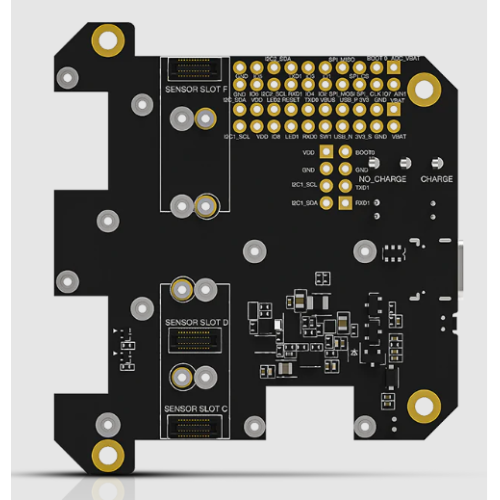

The RAK19001 is the newest WisBlock Base Board. With 2 IO slots for large modules and 6 sensor slots for sensors, GNSS modules and similar, it opens the WisBlock to more complex applications where many modules are required. As additional feature, it has all GPIO's exposed on a solder pad that makes it easy to connect other (third party) modules. Other features are - Solar panel connector - rechargeable battery connector - separate connector for non-rechargeable batteries - USB type C connector - User definable button - On/Off switch on the base board.

Features :

Flexible building block design, which enables modular functionality and expansion

High-speed interconnection connectors in the WisBlock Base board to ensure signal integrity

Multiple Headers and Modules Slots for WisBlock Modules

  • Two (2) IO slots
  • Six (6) Sensor (A to F) slots
  • All key input-output pins of WisBlock Core are exposed via headers
  • Access to various communication bus via headers: I2C, SPI, UART, and USB
  • One user-defined push button switch

Power supply

  • Supports both 5 V USB, 3.7 V rechargeable battery, and 3.3 to 5.5 V non-rechargeable battery as power supply
  • The power supply for the WisBlock modules boards can be controlled by the WisBlock Core modules to minimize power consumption
  • Slide switch to select between a rechargeable or non-rechargeable battery
Size
  • 60 x 67 mm

Documents :

Package Includes :

  • 1 x RAK19001
  • 1 x USB Cable
  • 1 x Battery Cable
  • 22 x M1.2*3 Screw
  • 8 x M2.5*4 Screw

Write a review

Please login or register to review

WisBlock RAK19001 Dual IO Base Board

  • Brand: Rakwireless
  • Product Code:RAK-WisBlock-Dual-IO-Base-Board
  • Reward Points:20
  • Availability:In Stock
  • रo 2,009.00

  • Price in reward points:2009

  • 7 or more रo 1,992.00
  • 15 or more रo 1,976.00
  • 35 or more रo 1,960.00
  • 75 or more रo 1,944.00
