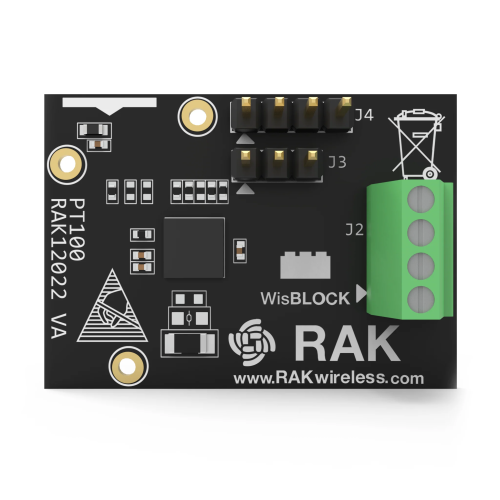

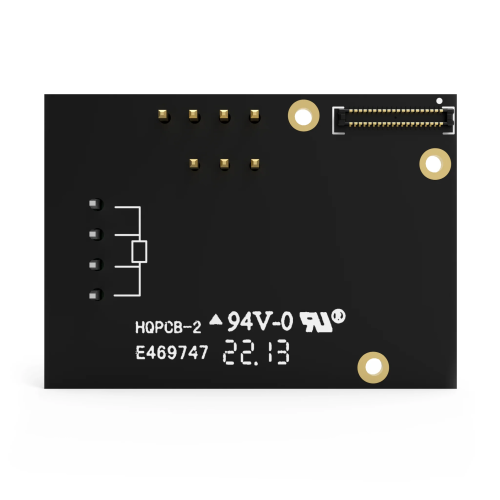

The RAK12022 is a PT100 sensor IO module that uses the MAX31965 resistance to digital converter. It is optimized for platinum resistance temperature detectors. The module supports 2-wire, 3-wire and 4-wire PT100 sensors and has an SPI interface. It extends the WisBlock temperature sensor series with an industrial temperature sensor.
We offer this module with an PT100 sensor, but if you want to use your own sensors, you can order the module without sensor as well.
Features:
  • Based on MAX31965
  • Compatible with 2-, 3-, and 4-Wire Sensor Connections
  • SPI-Compatible Interface
  • 15-Bit ADC Resolution; Nominal Temperature Resolution 0.03125NC (Varies Due to RTD
  • Nonlinearity)
  • Total Accuracy Over All Operating Conditions: 0.5NC (0.05% of Full Scale) max
  • Fully Differential VREF Inputs
  • 21ms (max) Conversion Time
  • Power supply: 3.3 V
  • Operating Temperature: -40° C ~ 85° C
  • Module size 25x35mm
Documentations:
Package Includes:
  • 1 x RAK12022 WisBlock MAX31865 PT100 Temperature Sensor Module

Write a review

Please login or register to review

RAK12022 WisBlock MAX31865 PT100 Temperature Sensor Module

  • Brand: Rakwireless
  • Product Code:NR-RAK-MAX31865-PT100-Temperature-Sensor-Module
  • Reward Points:13
  • Availability:In Stock
  • रo 1,340.00

  • Price in reward points:1340

  • 10 or more रo 1,330.00
  • 20 or more रo 1,320.00
  • 55 or more रo 1,305.00
  • 110 or more रo 1,295.00
