The module is available in two variants:

    • RAK4631-R is for low power application designed with RUI3.
    • RAK4631 is for use with the Arduino IDE BSP.

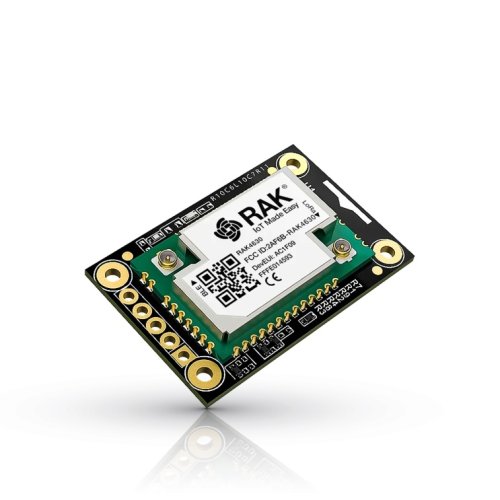

    The RAK4631 WisBlock LPWAN is a WisBlock Core module which delivers a powerful Nordic nRF52840 MCU with BLE 5.0 paired to the latest LoRa transceivers from Semtech, the SX126x series.
    Compared to the older SX127x series the Semtech SX126x transceivers offer improved power consumption and the improved power amplifier can now transmit at up to +22dBm, with a total link budget up to 170dB for extended communication range. This makes the RAK4631 our best ever long range capable, ultra-low-power communication solution.
    Designed for global deployment, the RAK4631 WisBlock Core comes in two variants, RAK4631(H) supporting ISM bands from 779-923MHz, including those typically used in Europe, USA, India, and the RAK4631(L) variant for the 433-470Mhz bands aimed at China and 433Mhz specific deployments.
    The module also includes a temperature-controlled crystal oscillator (TXCO) for correct operation across a wide range of temperature and bandwidth requirements as well as multiple communication interfaces including UARTs, I2C, SPI, ADC, USB and GPIOs.
    RAK4631 together with the RAK5005-O WisBlock Base module can be easily expanded with many available sensors and IO boards. This is the ideal LoRa® end node for battery and/or solar-powered applications in remote locations. It can be easily programmed with the

    Features:
    • LoRaWan 1.0.2 protocol stack (supports Class A & C)
    • RAK4631-R: LoRaWAN® 1.0.3 protocol stack (supports Class A, B & C)
    • Bluetooth Low Energy 5.0 protocol stack
    • Nordic nRF52840:
      • Ultra-low-power MCU
      • 32-bit ARM Cortex-M4F CPU
      • 64MHz CPU clock
      • 1 MB Flash, 256 KB RAM
    • Wide range of connections:
      • I2C, SPI, Analog inputs,
      • Digital inputs and outputs
    • Semtech SX1262:
      • Low power high range
      • LoRa transceiver
    Documents:
    Package Includes:
    • 1 x RAK4631
    • 1 x Antenna for LoRa
    • 1 x Antenna for Bluetooth Low Energy

    Write a review

    Please login or register to review

    WisBlock LPWAN Module

    • Brand: Rakwireless
    • Product Code:RAK-WisBlock-LPWAN
    • Reward Points:27
    • Availability:In Stock
    • रo 2,677.00

    • Price in reward points:2677

    • 5 or more रo 2,655.00
    • 10 or more रo 2,634.00
    • 30 or more रo 2,612.00
    • 55 or more रo 2,591.00
