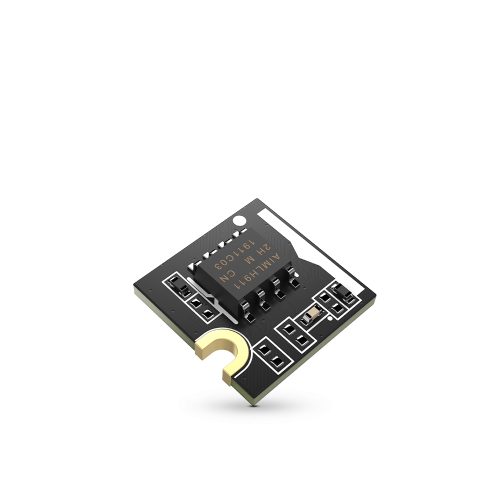

The RAK15000 WisBlock EEPROM module, part of the RAKwireless Wisblock series, is a serial EEPROM module with an I2C interface. Designed to work at low power mode, the standby average consumption is lower than 3 µA ( VCC = 5.5 V ). The RAK15000 uses Microchip AT24CM02 that provides 2,097,152 bits of Serial Electrically Erasable and Programmable Read-Only Memory (EEPROM), organized as 262,144 words of 8 bits each.
Features:
  • 3.3 V input voltage: on/off control by the WisBlock Core module
  • Temperature range: -40 °C to +85 °C
  • Internally organized as 262,144 x 8 bit (2 Mbit)
  • I2C-Compatible (2-wire) Serial Interface
    • 100 kHz Standard mode
    • 400 kHz Fast Mode
  • High Reliability
    • Endurance: 1,000,000 write cycles
    • Data retention: 100 years
  • Built-in error detection and correction
  • 256-byte Page Write Mode
  • Random and Sequential Read Modes
  • Standby current: less than 3 µA

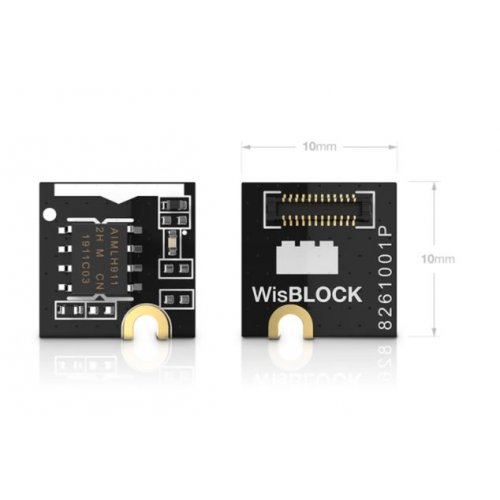

  • Module size: 10 x 10 mm
Documents:
Package Includes:
  • 1 x WisBlock EEPROM Module

Write a review

Please login or register to review

WisBlock RAK15000 EEPROM Module Microchip AT24CM02

  • Brand: Rakwireless
  • Product Code:RAK-WisBlock-EEPROM-Module
  • Reward Points:18
  • Availability:In Stock
  • रo 1,785.00

  • Price in reward points:1785

  • 8 or more रo 1,771.00
  • 15 or more रo 1,757.00
  • 40 or more रo 1,743.00
  • 85 or more रo 1,728.00
