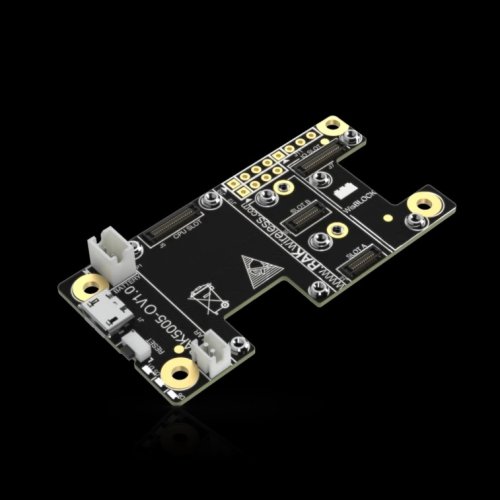

  • WisBlock Base Board
WisBlock Base Board is the base block for RAK WisBlock. It is the carrier for the WisBlock Core MCU module and the WisBlock Sensor and WisBlock IO modules. It enables the engineers and makers to build with low effort prototypes, test different types of sensors, and develop the application. And because all components and modules of WisBlock are industrial rated the step from development to mass production is no problem.
WisBlock Base Board supports as standard 3 different power supplies. Depending on the application either 5V USB, 3.7V LiPo batteries, and 5V solar panels or a combination can be chosen. WisBlock Base Board enables low power consumption applications with the option to switch on and off the power supply for the WisBlock Sensor and WisBlock IO slots.
WisBlock Base Board has a size of only 30 x 60mm which lets you create solutions that fit into the smallest housings.

Features:
  • Easy Plug'n'Play slots for WisBlock Core MCU, WisBlock Sensor, and WisBlock IO modules
  • Small form factor
  • Supports 3 different power supply sources
  • Optimized for low power consumption applications
  • I2C, UART, GPIO's an analog input accessible with solder contacts
  • 2 user-definable LED's
  • Reset button
  • USB debug port
  • 1 slot for WisBlock Core MCU
  • 4 slots for WisBlock Sensor sensor modules
  • 1 slot for WisBlock IO extension modules
Documents:
Package Includes:
  • 1 x  RAK5005-O
  • 1 x Micro USB cable
  • 1 x  screws (kit)

Write a review

Please login or register to review

WisBlock Base Board

  • Brand: Rakwireless
  • Product Code:RAK-WisBlock-Base
  • Reward Points:15
  • Availability:In Stock

  • रo 1,486.00

  • Price in reward points:1486
  • 10 or more रo 1,474.00
  • 20 or more रo 1,463.00
  • 50 or more रo 1,451.00
  • 100 or more रo 1,439.00

0 reviews / Write a review
