• WisBlock Ambient Light Sensor

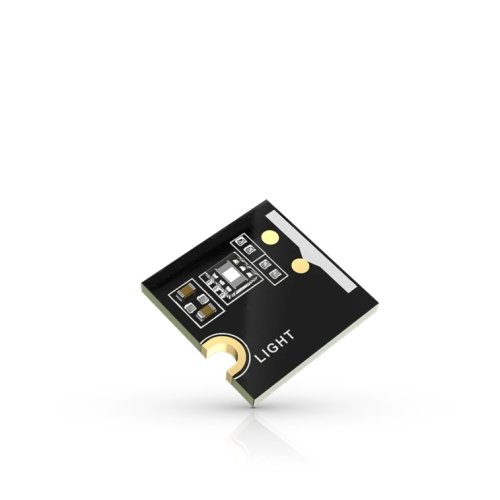

RAK1903 is a WisBlock Sensor which extends the WisBlock system with an ambient light sensor. A ready to use SW library and tutorial makes it easy to build up an ambient light data acquisition system.

RAK1903's range from 0.01 lux to 83865 lux makes it suitable for a greenhouse control system, light detection system, or alarm systems.
RAK1903 combined with the RAK4631 WisBlock Core is ready to go system to collect ambient light data. The acquired data can be send using LoRaWan communication, LoRa point to point connections and BLE.

RAK1903 is ideal for battery-powered applications because of its low power consumption. In addition, the WisBlock system allows to power down the module complete to reduce the power consumption of the system even more.

RAK1903 ambient light sensor can be combined with other WisBlock sensors like a temperature and humidity sensor and a barometric pressure sensor module to create a greenhouse control system.

Features:
  • Using the TI OPT3001DNPR light sensor
  • Low power consumption
  • Small form factor
  • Measurement range from 0.01 lux to 83865 lux
  • Optical filtering to match the human eye
  • Low power consumption of 1.8uA
Documents:
Package Includes:
  • 1 x WisBlock Ambient Light Sensor

Write a review

Please login or register to review

WisBlock Ambient Light Sensor

  • Brand: Rakwireless
  • Product Code:RAK-WisBlock-Light-Sensor
  • Reward Points:5
  • Availability:In Stock
  • रo 536.00

  • Price in reward points:536

  • 30 or more रo 531.00
  • 55 or more रo 527.00
  • 140 or more रo 523.00
  • 275 or more रo 518.00
